Final Drive: Disassembly

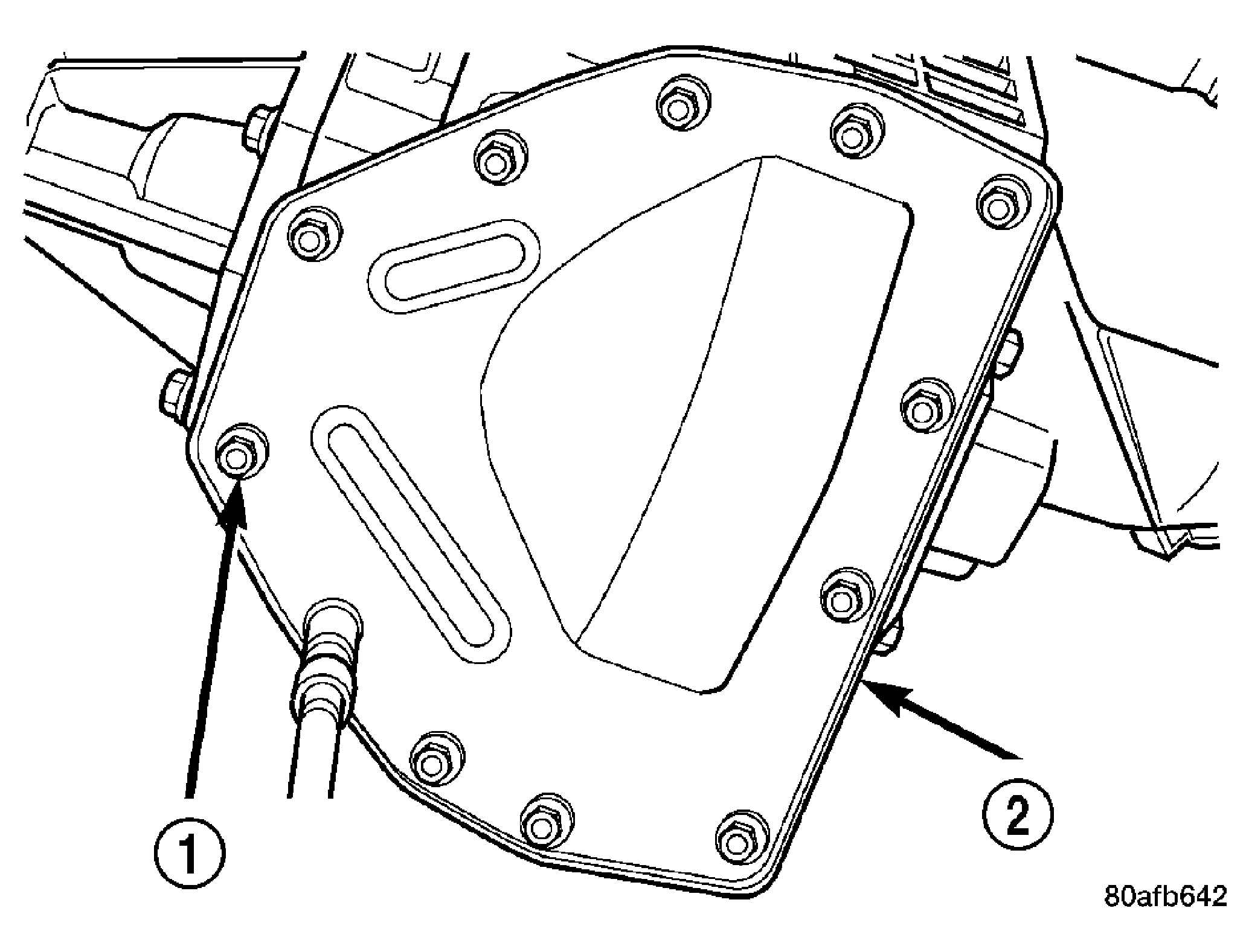

| 1 - DIFFERENTIAL COVER BOLTS |
| 2 - DIFFERENTIAL COVER |
NOTE:
The transfer shaft should be removed for differential repair and bearing turning torque checking.
- Remove the differential cover and bolts (1). See Fig 1.
1 - DIFFERENTIAL RETAINER BOLTS - Remove the differential bearing retainer bolts (1). See Fig 2.

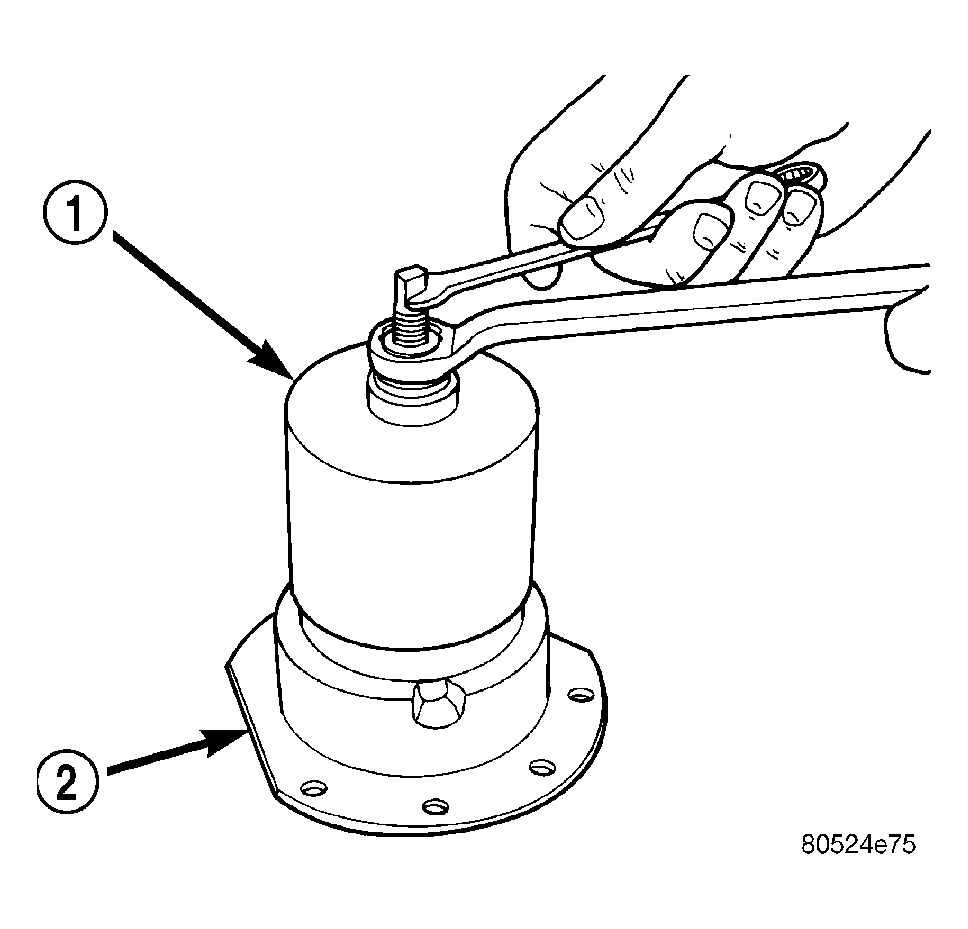

1 - DIFFERENTIAL BEARING RETAINER 2 - HOLDER L-4435 - Remove the differential bearing retainer (1) using Holder L-4435 (2). See Fig 3.

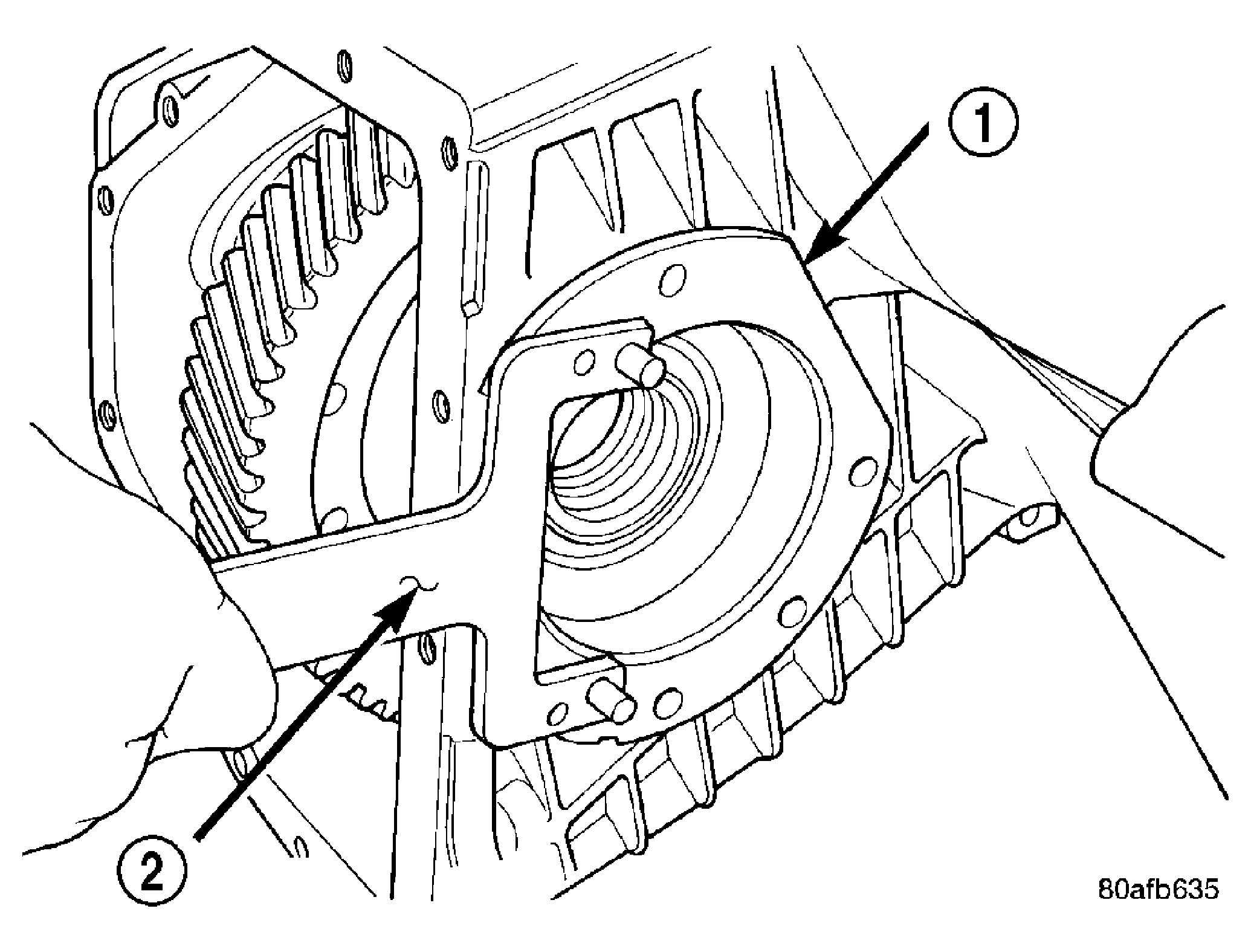

1 - ADAPTOR C-4996 (NOTE POSITION) 2 - DIAL INDICATOR SET 3 - DIFFERENTIAL ASSEMBLY 4 - SIDE GEAR - Using a plastic hammer, remove extension housing/adapter plate on the right side of the transaxle.WARNING: HOLD ONTO DIFFERENTIAL ASSEMBLY TO PREVENT IT FROM ROLLING OUT OF HOUSING.
- Remove differential assembly.

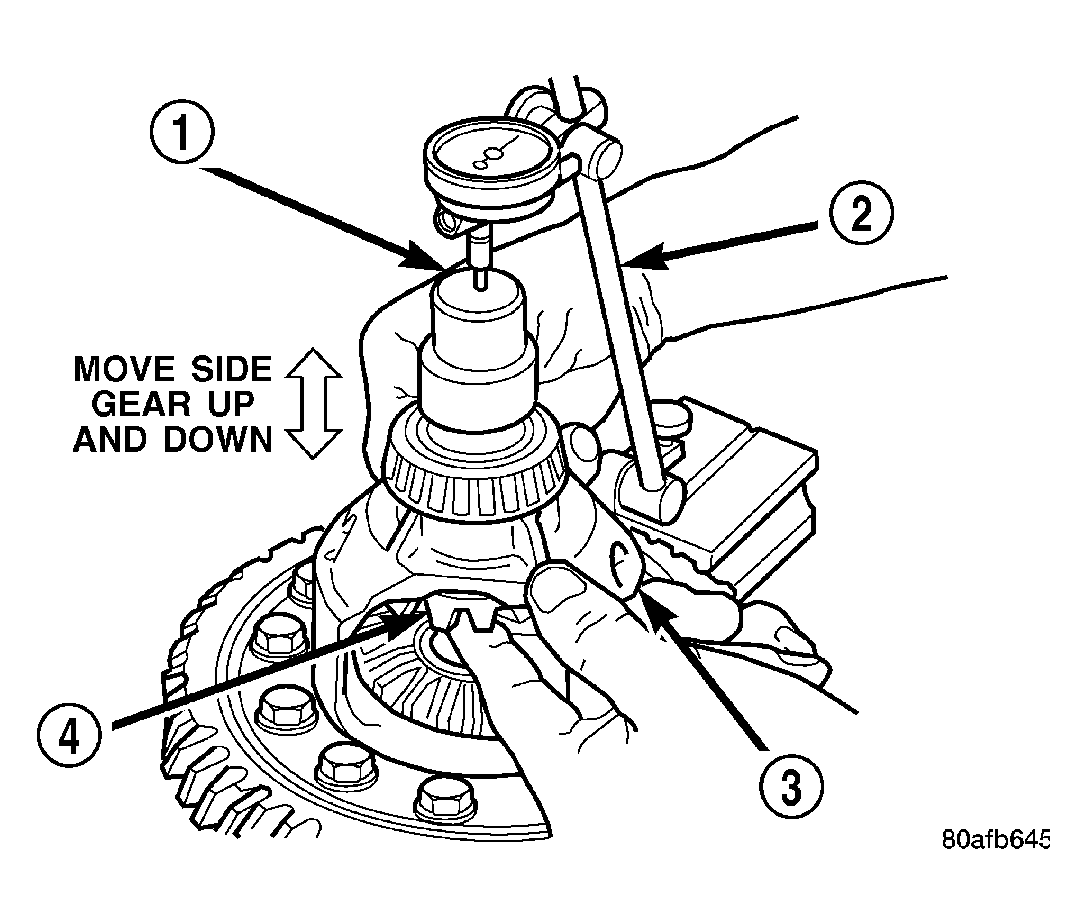

- Set up Dial Indicator Set C-3339 (2) and Adapter C-4996 (1) to measure side gear end play (Extension Housing Side). See Fig 4.Side gear end play must be within 0.001-0.013 in.

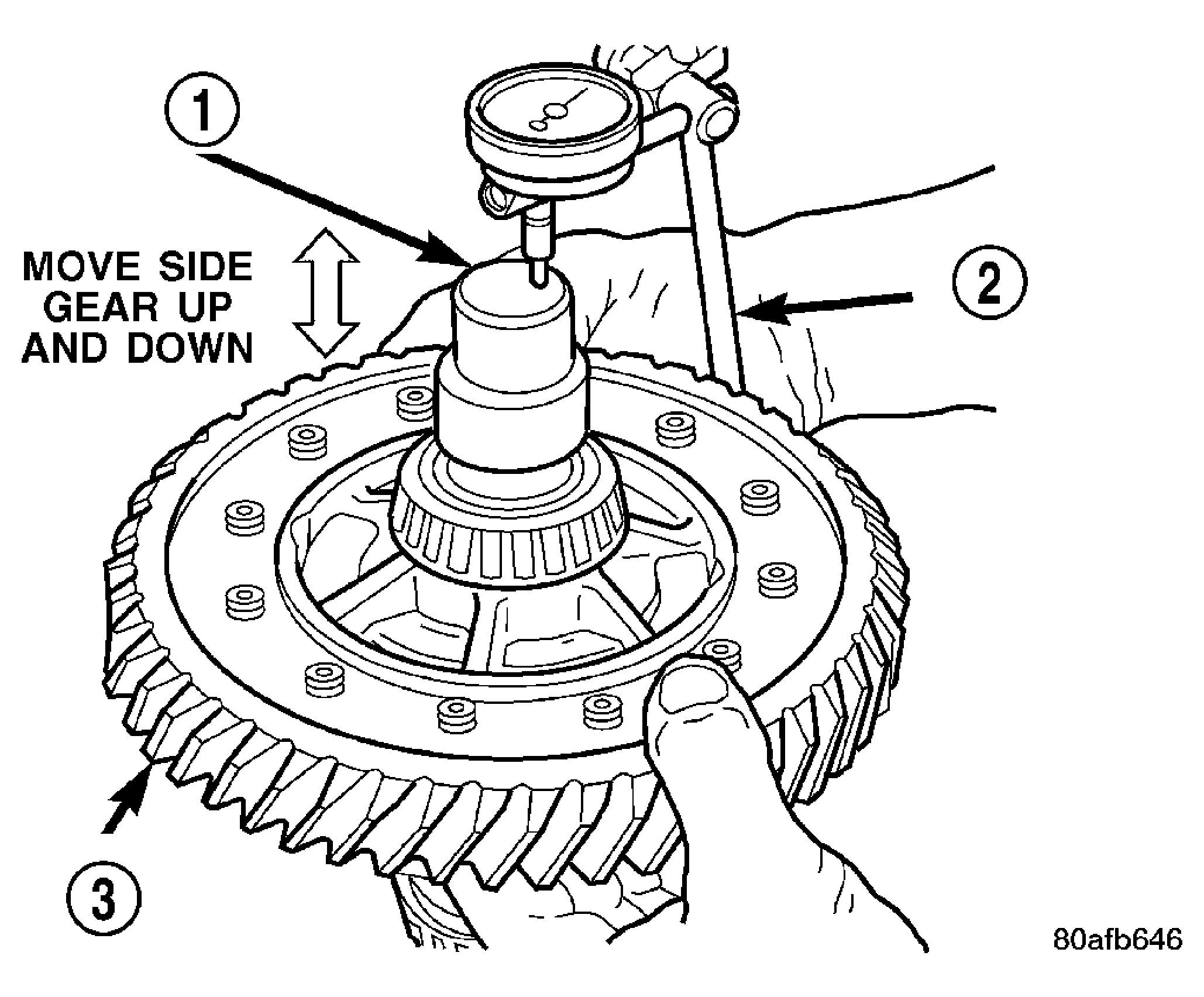

1 - ADAPTOR C-4996 (NOTE POSITION) 2 - DIAL INDICATOR SET 3 - DIFFERENTIAL ASSEMBLY - Set up Dial Indicator Set C-3339 (2) and AdapterC-4996 (1) to measure side gear end play (Ring Gear Side). See Fig 5. Side gear end play must be within 0.001-0.013 in.
1 - COLLETS 5048-4 2 - BUTTON L-4539-2 3 - BEARING CONE - Remove differential side bearing cone (3) from ring gear side of differential. Install button L-4539-2 (2), and Collets 5048-4 (1). See Fig 6.
1 - PULLER SET 5048 2 - COLLETS 5048-4 - - Install Puller Set 5048 (1), collets 5048-4 (2) and sleeve. Remove and discard bearing cone. See Fig 7.
1 - BUTTON L-4539-2 - Remove differential side bearing cone from outboard end (opposite ring gear) of differential. Install Button L-4539-2 (1). See Fig 8.
1 - PULLER SET 5048 2 - COLLET 5048-3 - - Install Puller Set 5048 (1), (2) collets 5048-3 and sleeve. Remove and discard bearing cone. See Fig 9.
1 - PINION SHAFT RETAINER - Remove pinion shaft retainer plate bolts (1). See Fig 10.
1 - PINION SHAFT RETAINER - Remove pinion shaft retainer (1). See Fig 11.
1 - PINION SHAFT - Remove pinion shaft (1) from differential case. See Fig 12.
1 - WASHER 2 - PINION GEAR - Rotate pinion gears (2) about case and remove (w/washer) (1). See Fig 13.
1 - SIDE GEAR - Remove differential side gears (1). See Fig 14.
1 - SIDE GEAR THRUST WASHER - Remove side gear thrust washers (1). See Fig 15.
1 - RING GEAR BOLTS - Remove remaining differential ring gear-to-case bolts (1). See Fig 16.
1 - SOFT-FACED HAMMER 2 - RING GEAR - Using a soft-faced hammer (1), remove ring gear (2) from case. See Fig 17.
1 - JAW SET 6062A 2 - DIFFERENTIAL BEARING RETAINER - Using Jaw Set 6062A, remove the differential bearing race from the extension housing/adapter plate. See Fig 18.
1 - JAW SET 6062A 2 - DIFFERENTIAL BEARING RETAINER - Using Jaw Set 6062A, remove the differential bearing race from the bearing retainer. See Fig 19.
DIFFERENTIAL SERVICE TOOLS
| COMPONENT | REMOVER | INSTALLER |
|---|---|---|
| Diff. Bear. On Retainer Side | 5048, 5048-4 Collets, L-4539-2 Button | 5052, C-4171 |
| Diff. Bear. On Ext. Hous. Side | 5048, 5048-3 Collets, L-4539-2 Button | L-4410, C-4171 |
| Diff. Race. On Retainer Side | 6062-A | 6061, C-4171 |
| Diff. Race. On Ext. Hous. Side | L-4518 | L-4520, C-4171 |
| Extension Housing Seal | 7794-A, C-637 Slide Hammer | L-4520, C-4171 |
| Bearing Retainer Seal | 794-A, C-637 Slide Hammer | L-4520, C-4171 |
