Speed Sensor - Output: Description

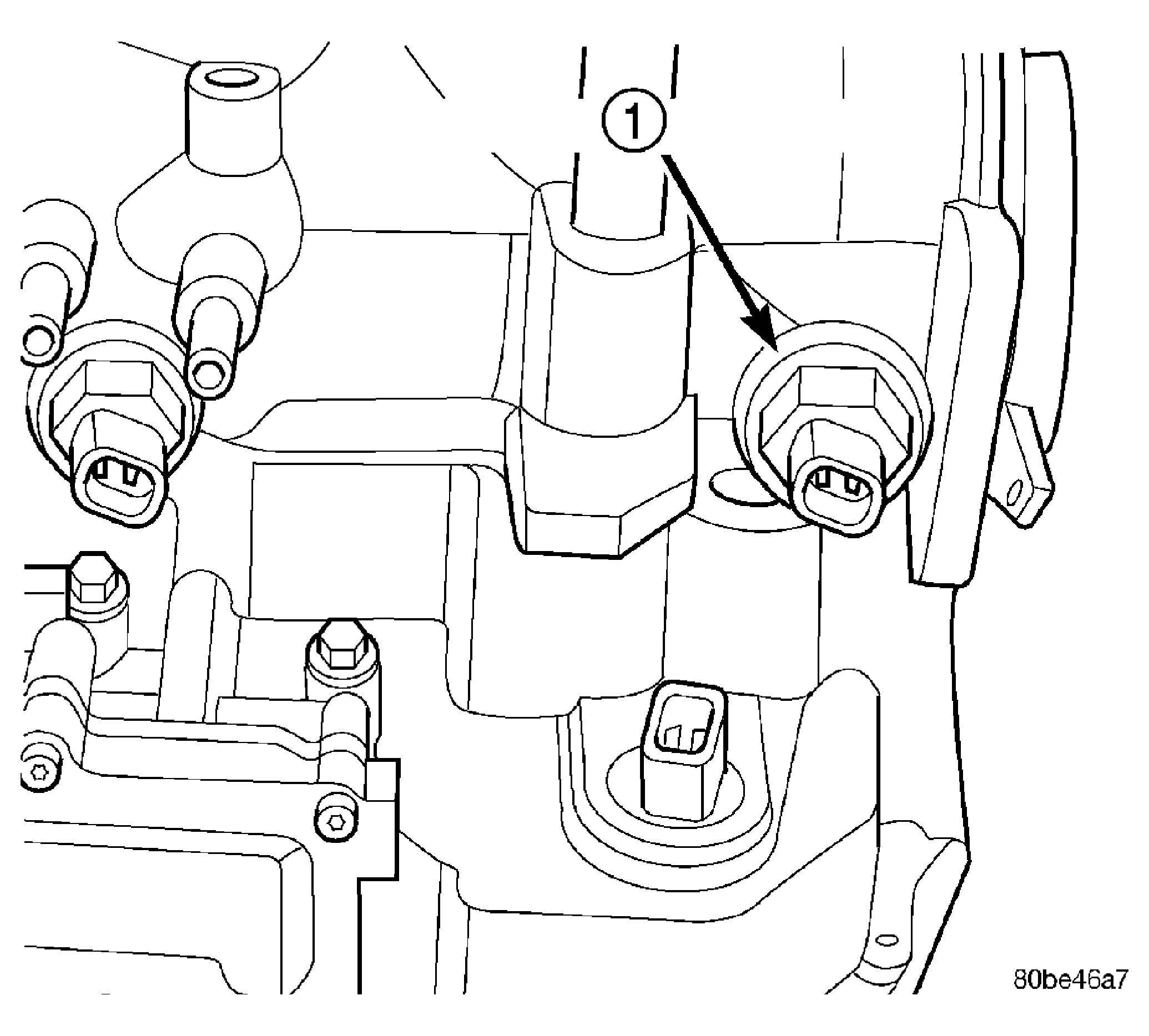

Fig 1: Identifying Output Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR

The Output Speed Sensor (1) is a two-wire magnetic pickup device that generates an AC signal as rotation occurs. It is threaded into the transaxle case. See Fig 1.

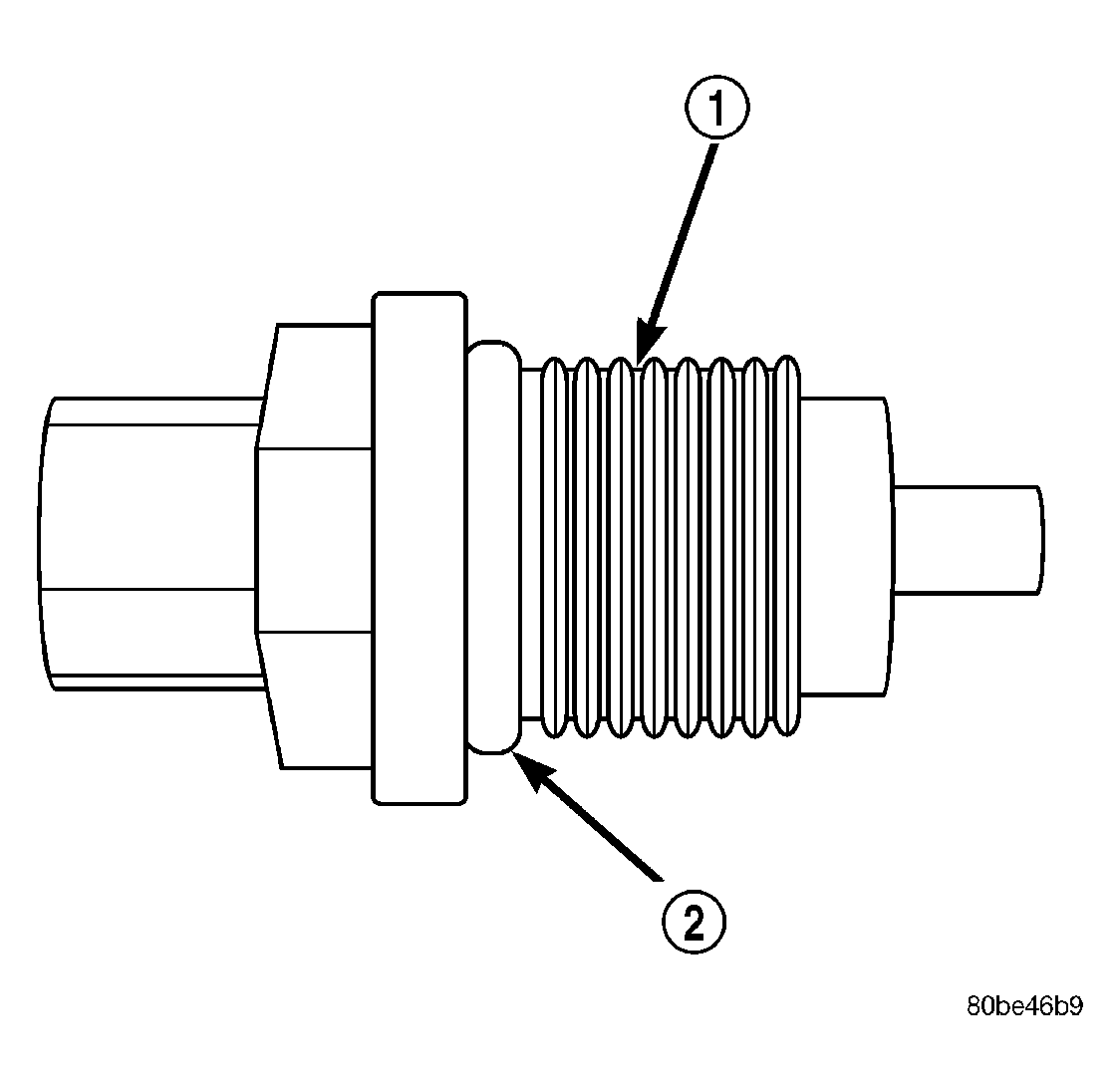

Fig 2: O-Ring Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR

2 - O-RING

The Output Speed Sensor (1) is sealed with an o-ring (2), and is considered a primary input to the Powetrain/Transmission Control. See Fig 2.
