Transmission Range Sensor: Description

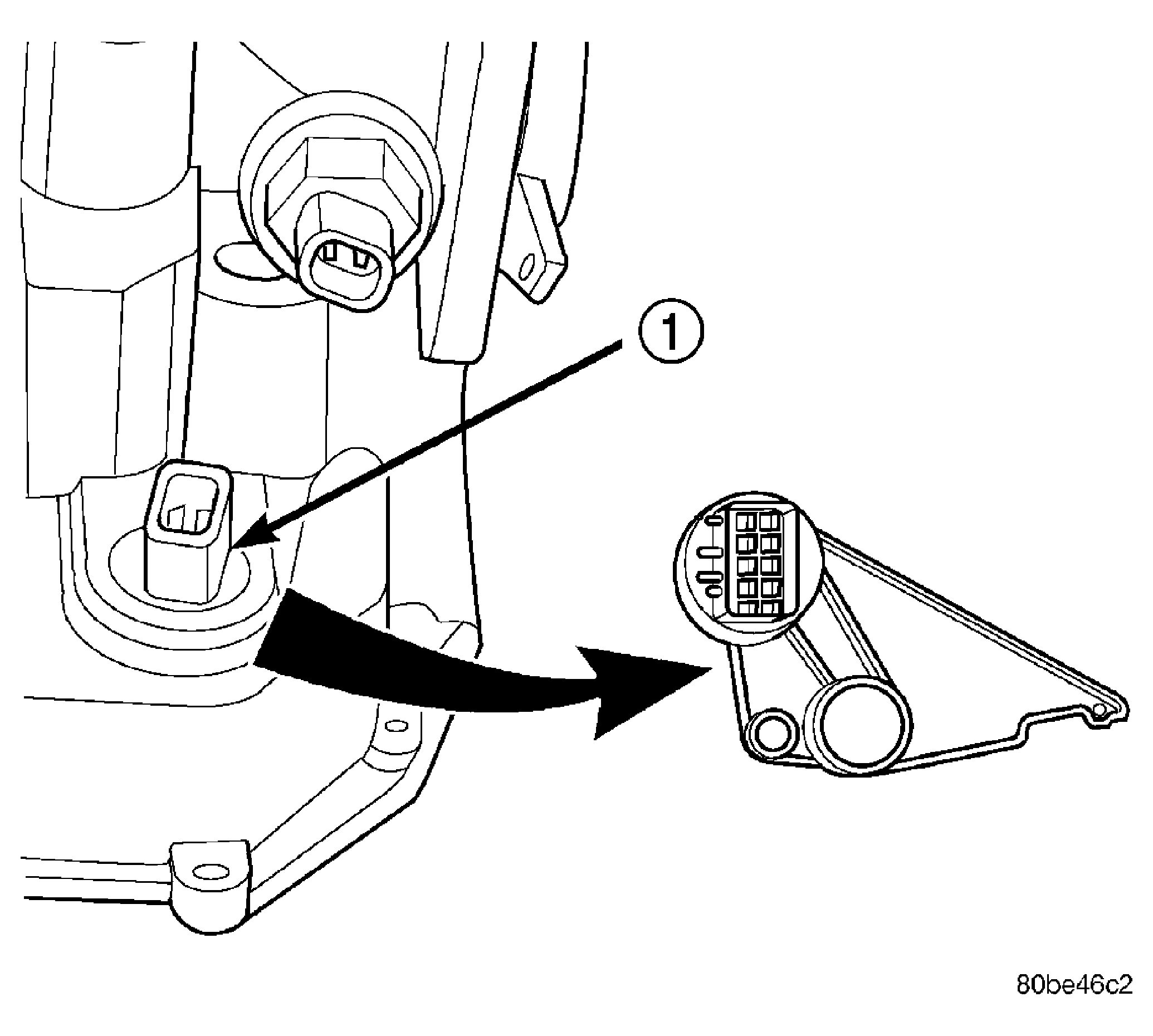

Fig 1: Transmission Range Sensor (TRS) Location

Courtesy of DAIMLERCHRYSLER CORP.

The Transmission Range Sensor (TRS) (1) is mounted to the top of the valve body inside the transaxle and can only be serviced by removing the valve body. The electrical connector extends through the transaxle case. See Fig 1.

The Transmission Range Sensor (TRS) has four switch contacts that monitor shift lever position and send the information to the PCM/TCM.

Fig 2: Transmission Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The TRS (1). See Fig 2also has an integrated temperature sensor (thermistor) (2) that communicates transaxle temperature to the TCM and PCM.
