Transmission Range Sensor: Installation

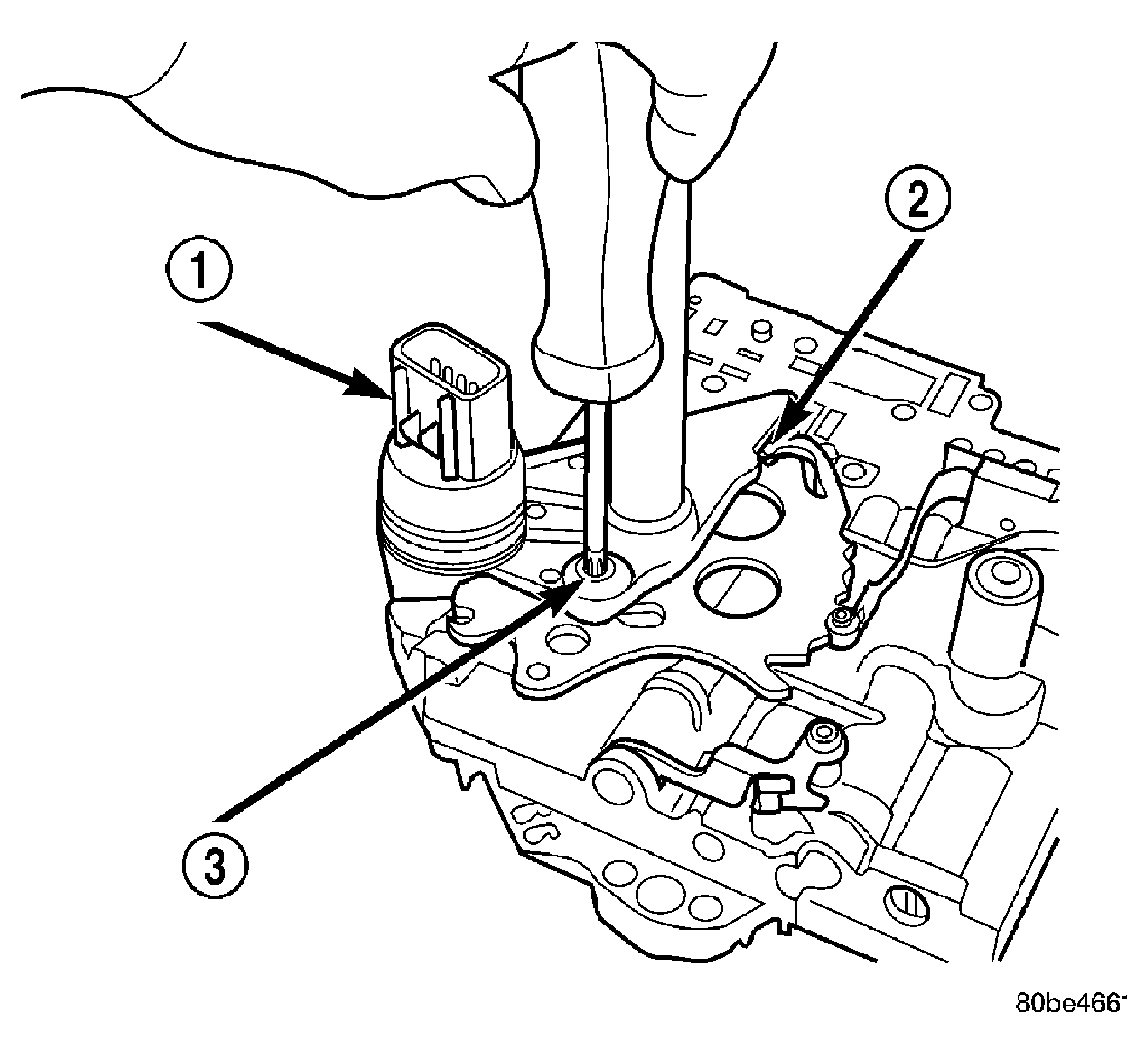

Fig 1: Removing/Installing Transmission Range Sensor
GC0000874Courtesy of DAIMLERCHRYSLER CORP.
1 - TRANSMISSION RANGE SENSOR
2 - MANUAL VALVE CONTROL PIN
3 - RETAINING SCREW
  1. Install transmission range sensor (TRS) (1). See Fig 1to the valve body and torque retaining screw (3) to 5 N.m (45 in. lbs.).
  2. Install valve body to transaxle. (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE/VALVE BODY - INSTALLATION)
