2.7L Engine (Service Information): Description: Engine

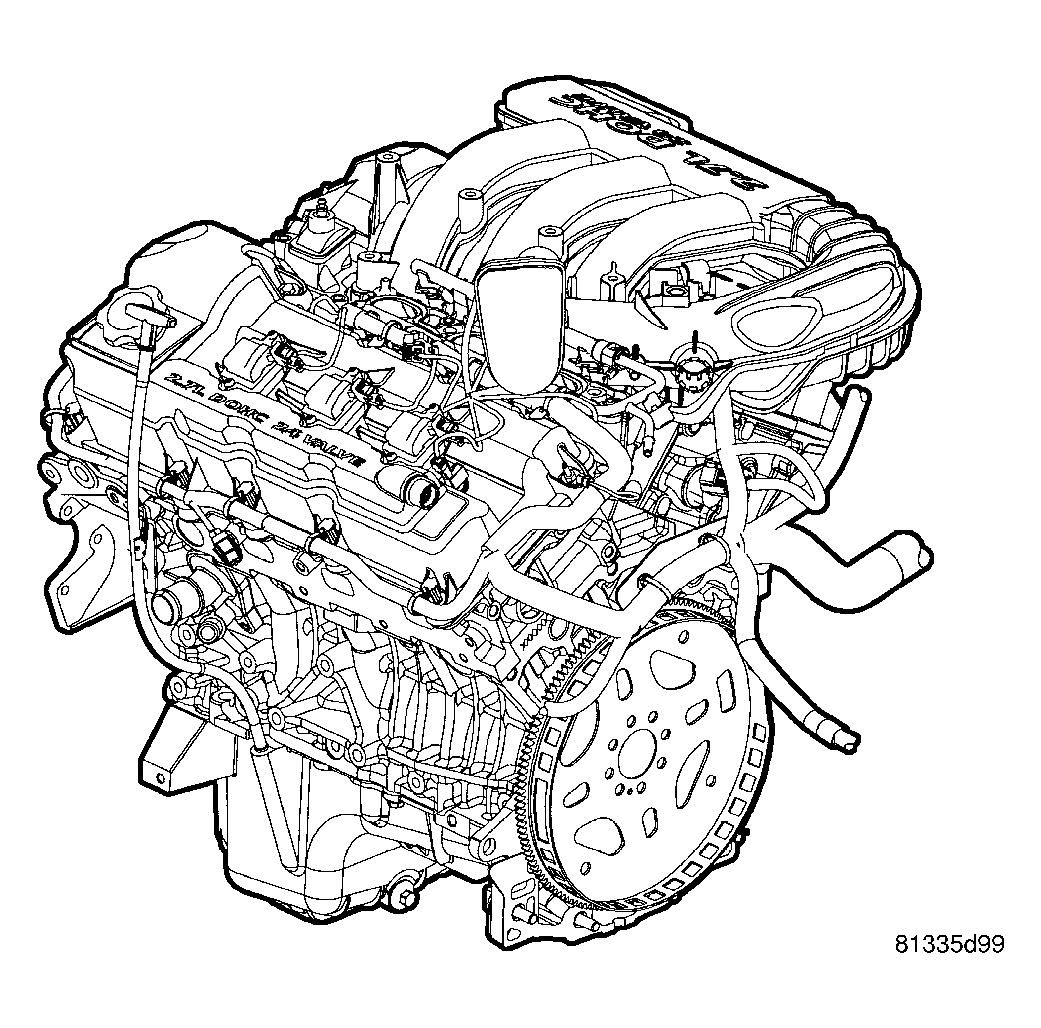

Fig 1: 2.7L Engine
GC0015221Courtesy of CHRYSLER LLC

The 2.7 Liter (167 Cubic Inches) 60 degree V-6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

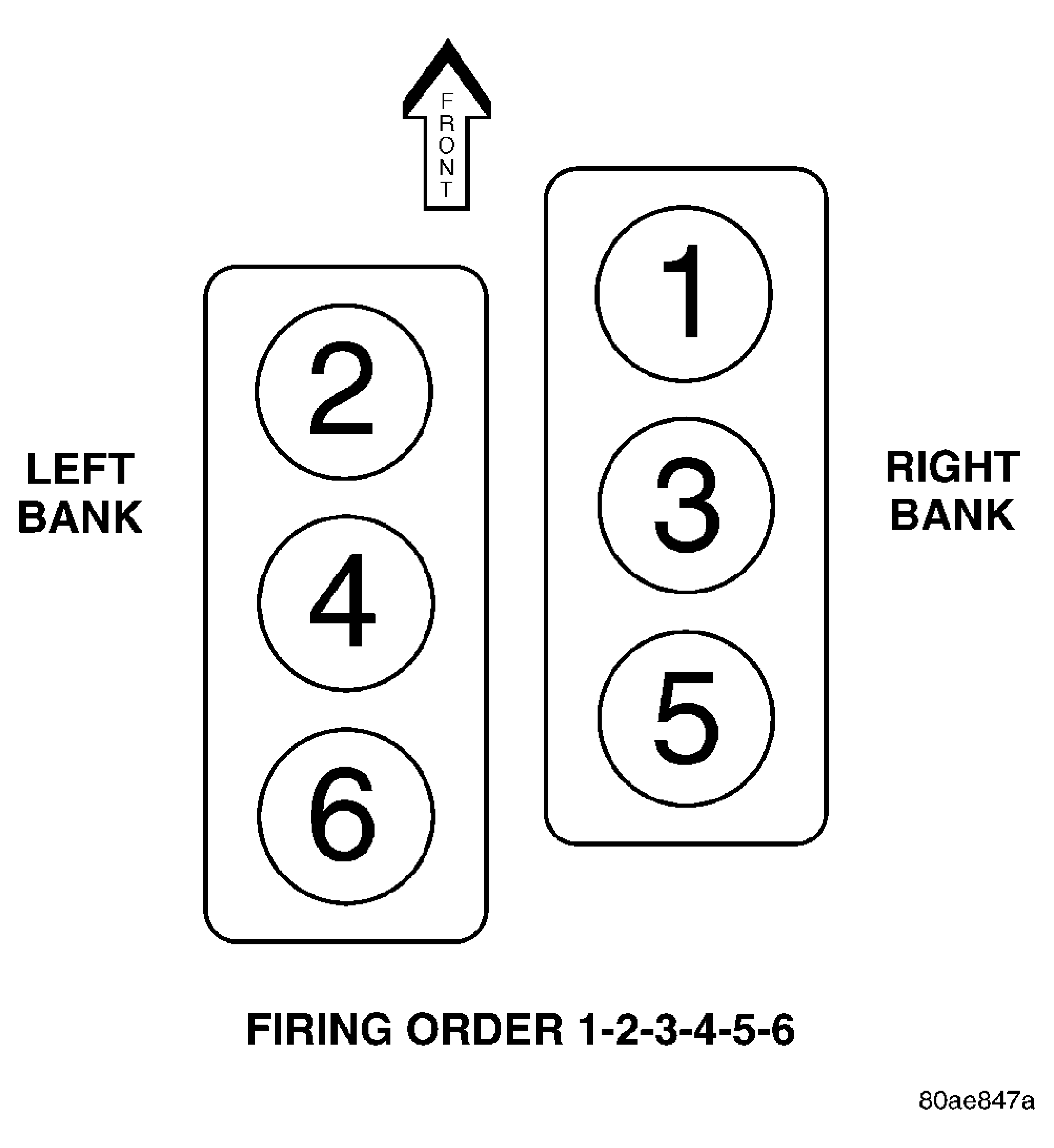

Fig 2: Cylinder Numbering & Firing Order
GC0015220Courtesy of CHRYSLER LLC

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. The firing order is 1-2-3-4-5-6.

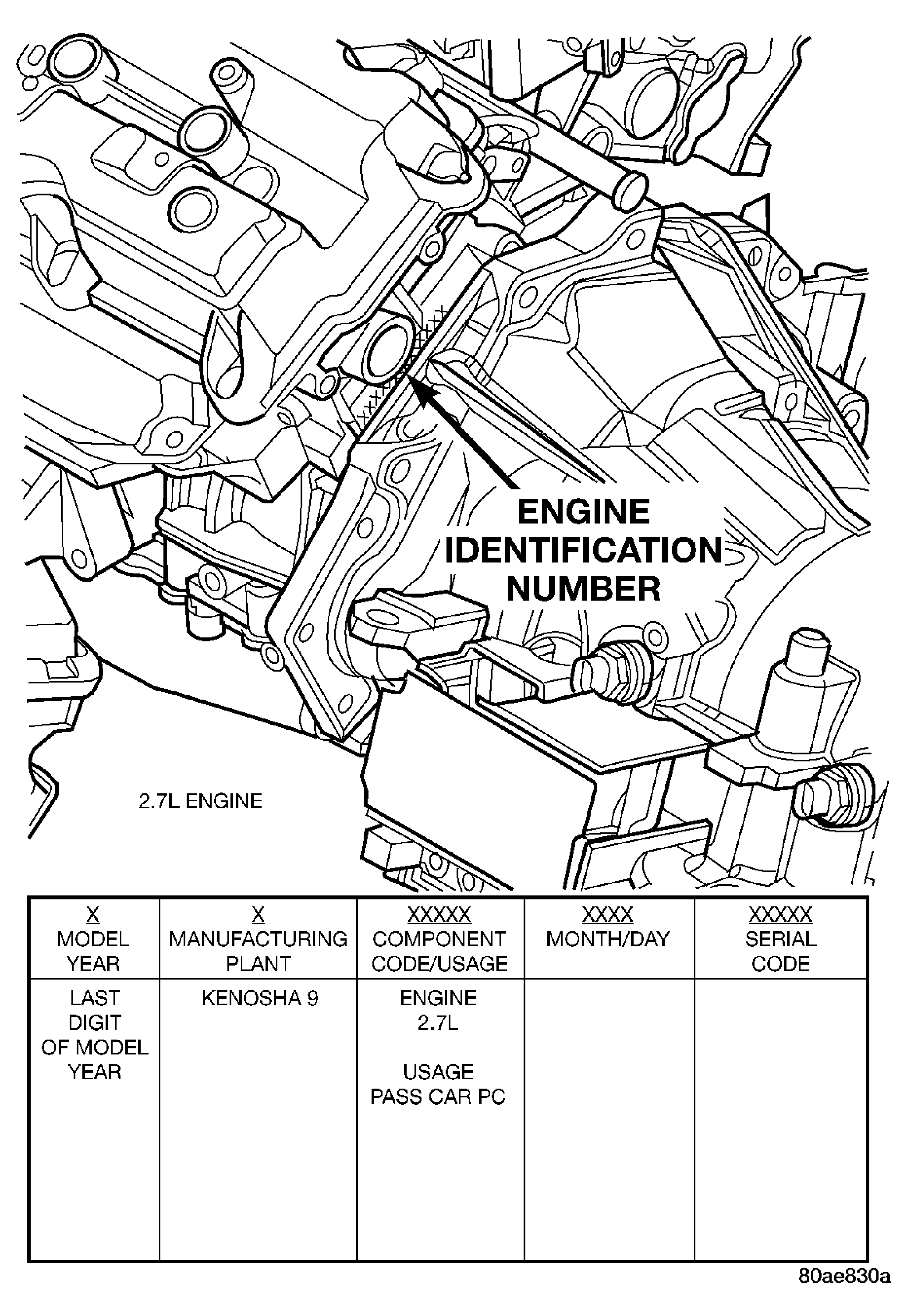

Fig 3: Engine Identification
GC0015219Courtesy of CHRYSLER LLC

The engine identification number is located on the rear of the cylinder block just below the left cylinder head
