Modular Clutch: Installation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

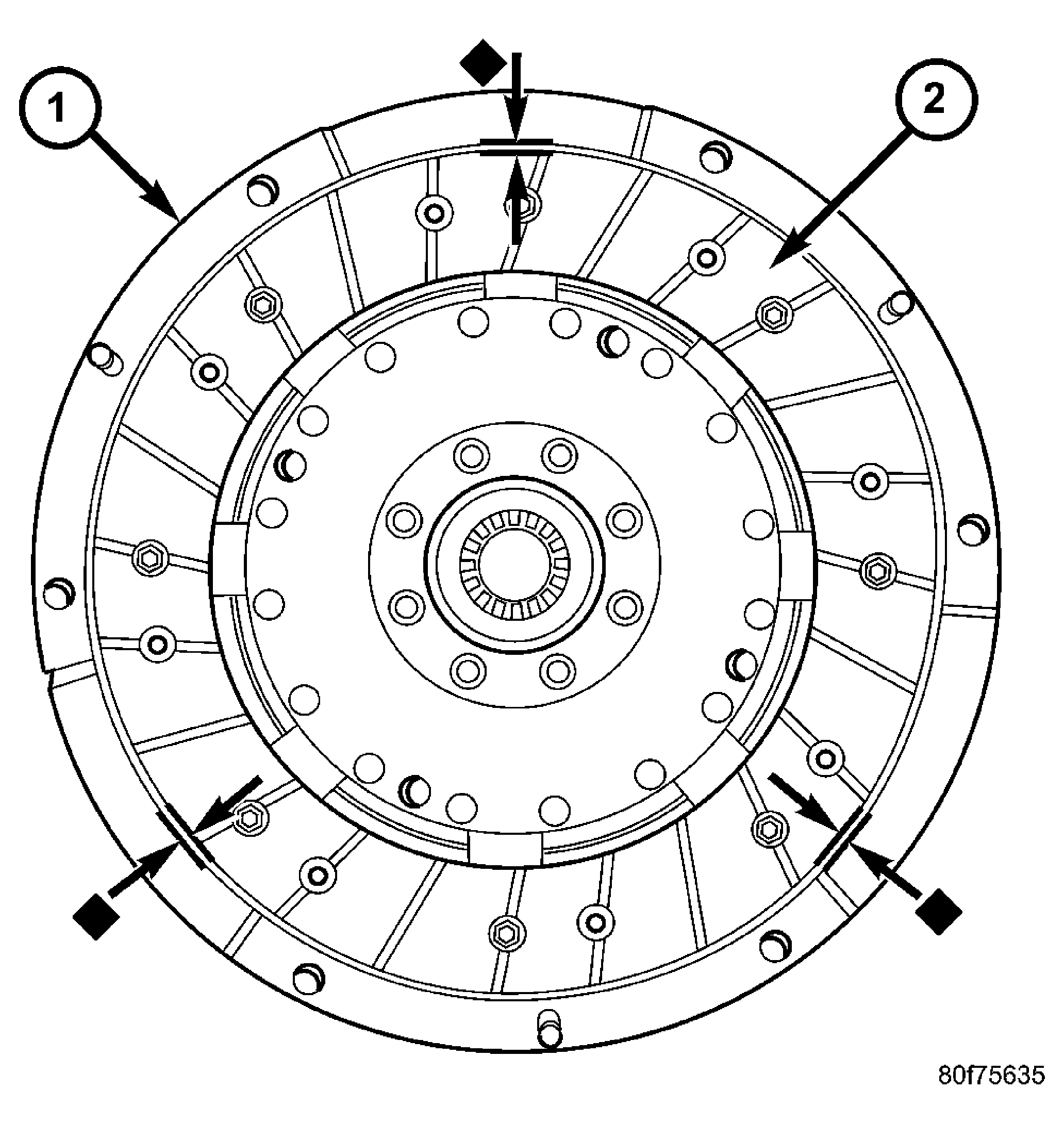

| 1 - FLYWHEEL |
| 2 - CLUTCH DISC |
| Black Diamond - EQUAL DISTANCE FOR ALIGNMENT |
- 2.4L Turbo models: Install clutch disc (2) to flywheel (1) with "Flywheel Side" oriented towards flywheel (1). Align clutch disc (2) to flywheel (1) by ensuring equal distance between disc and flywheel lip exists in three places as shown. Install pressure plate to flywheel, locating on dowels and making sure not to disturb clutch disc. Install and torque six pressure plate-to-flywheel bolts to 28 N.m (250 in. lbs.). Visually verify clutch disc alignment. See Fig 1.
- All models: Install clutch module onto input shaft.
- Install transaxle,
- For G288 M/T, (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
- For T350 M/T, (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
