Speed Control Servo Cable

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

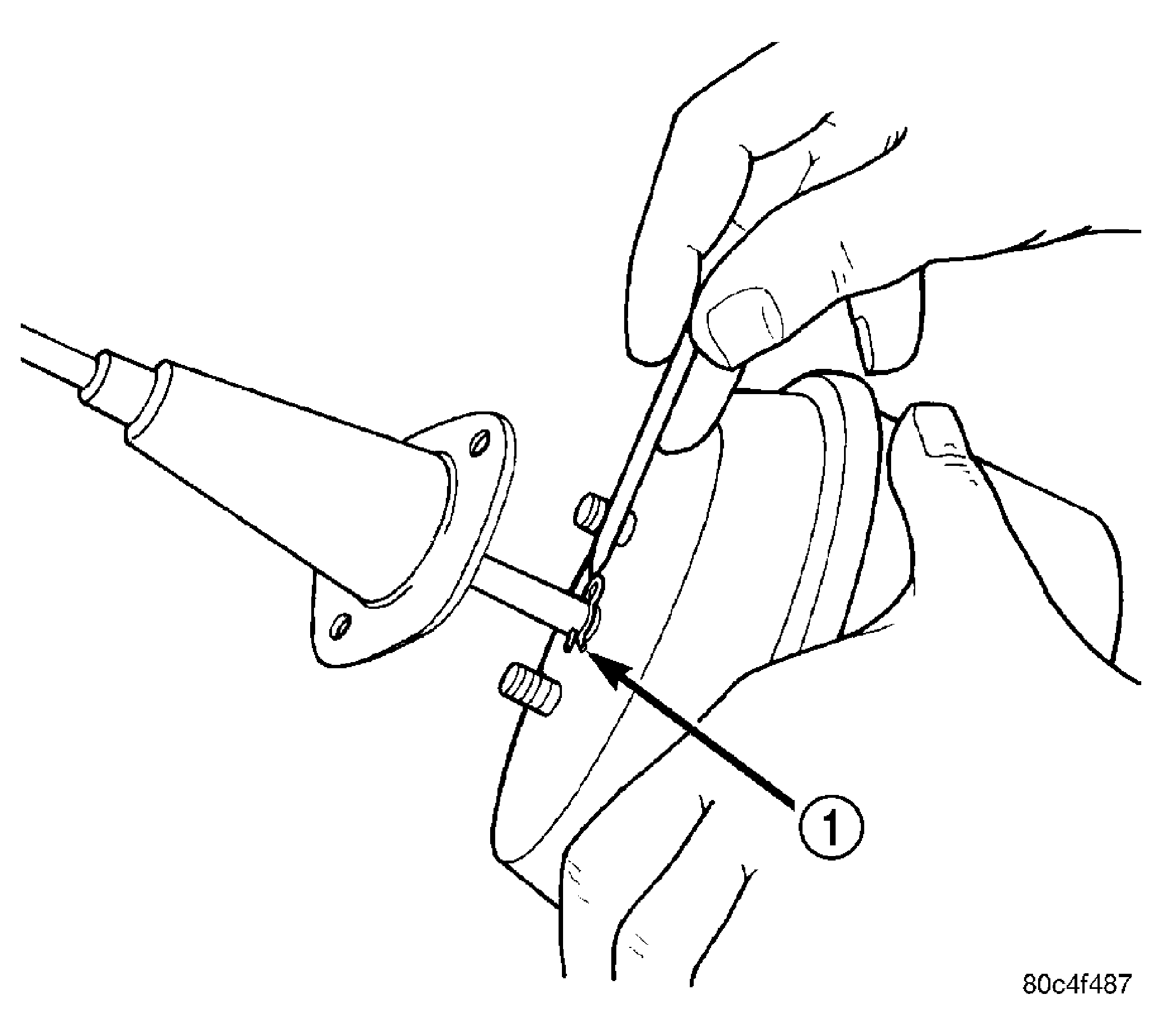

Fig 1: Cable Retaining Clip

Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP

Install cable core wire through center hole on bracket, onto servo center post.
Install retaining clip to cable at servo. See Fig 1.

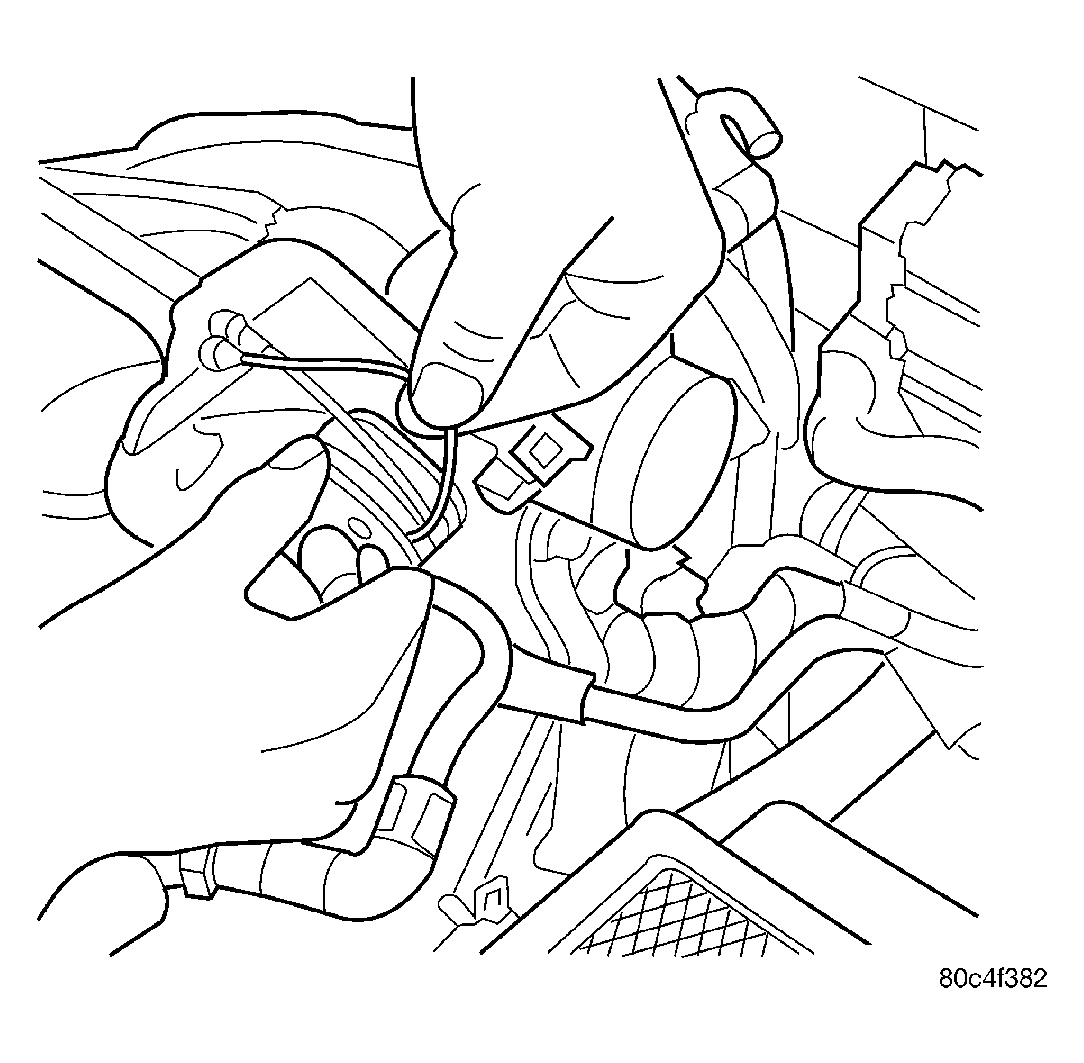

Fig 2: Locating Retaining Tabs On Cables
Courtesy of CHRYSLER LLC
Slide cable bell housing over servo mounting studs through the bracket.
Install 2 nuts, tighten to 7 N.m (60 in. lbs.).
Slide cables into throttle cable bracket and engage retaining tabs. See Fig 2.

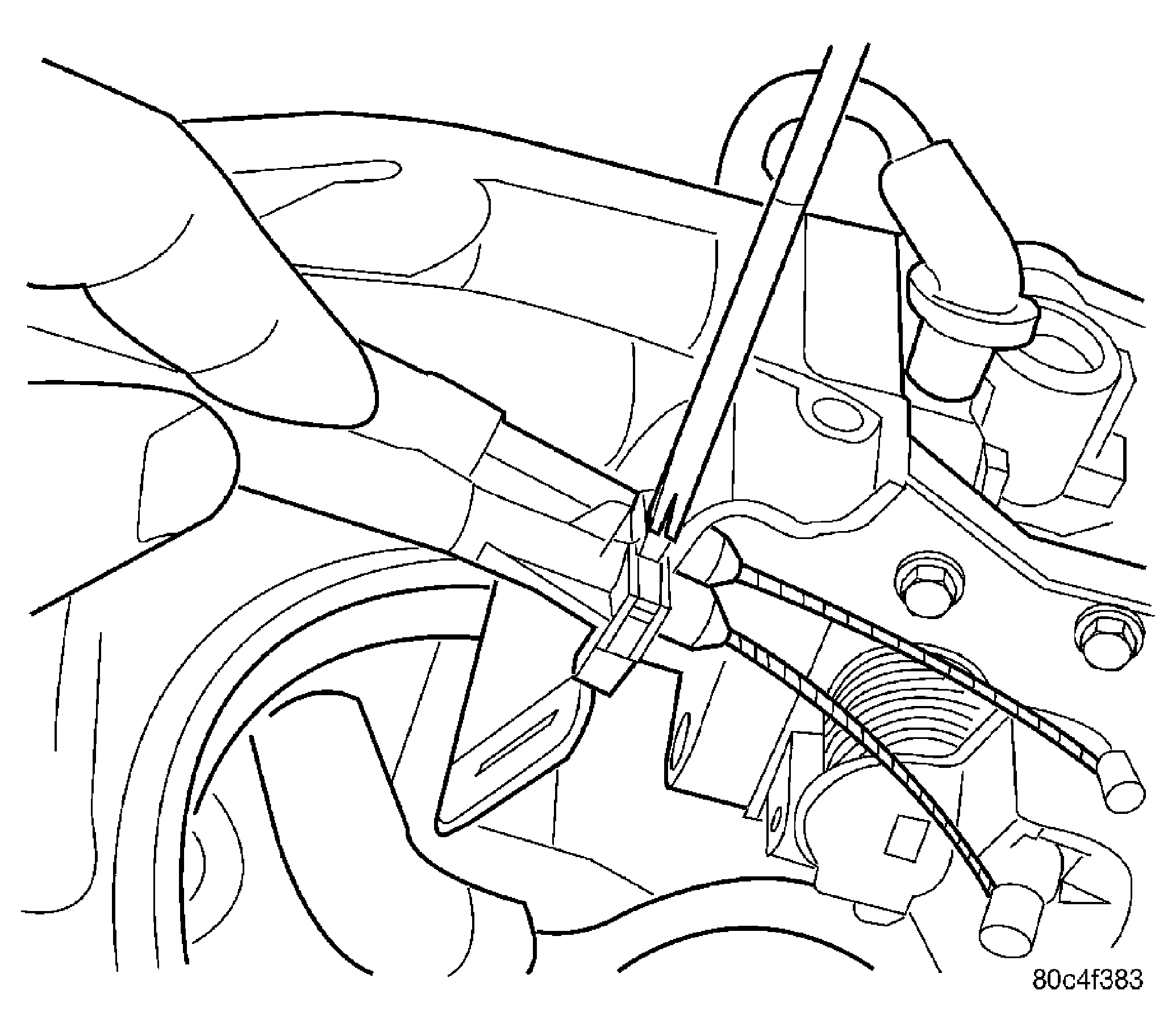

Fig 3: Throttle Cable Attachment To Throttle Body
Courtesy of CHRYSLER LLC
Rotate the throttle cam forward to the wide open position and install speed control cable clasp. See Fig 3.
Rotate the throttle cam forward to the wide open position and install throttle cable clasp.
Install engine cover and throttle control shield, if equipped.
Install the negative battery cable.
Install the air cleaner lid and makeup air hose. Refer to INSTALLATION .
