Speed Control System

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

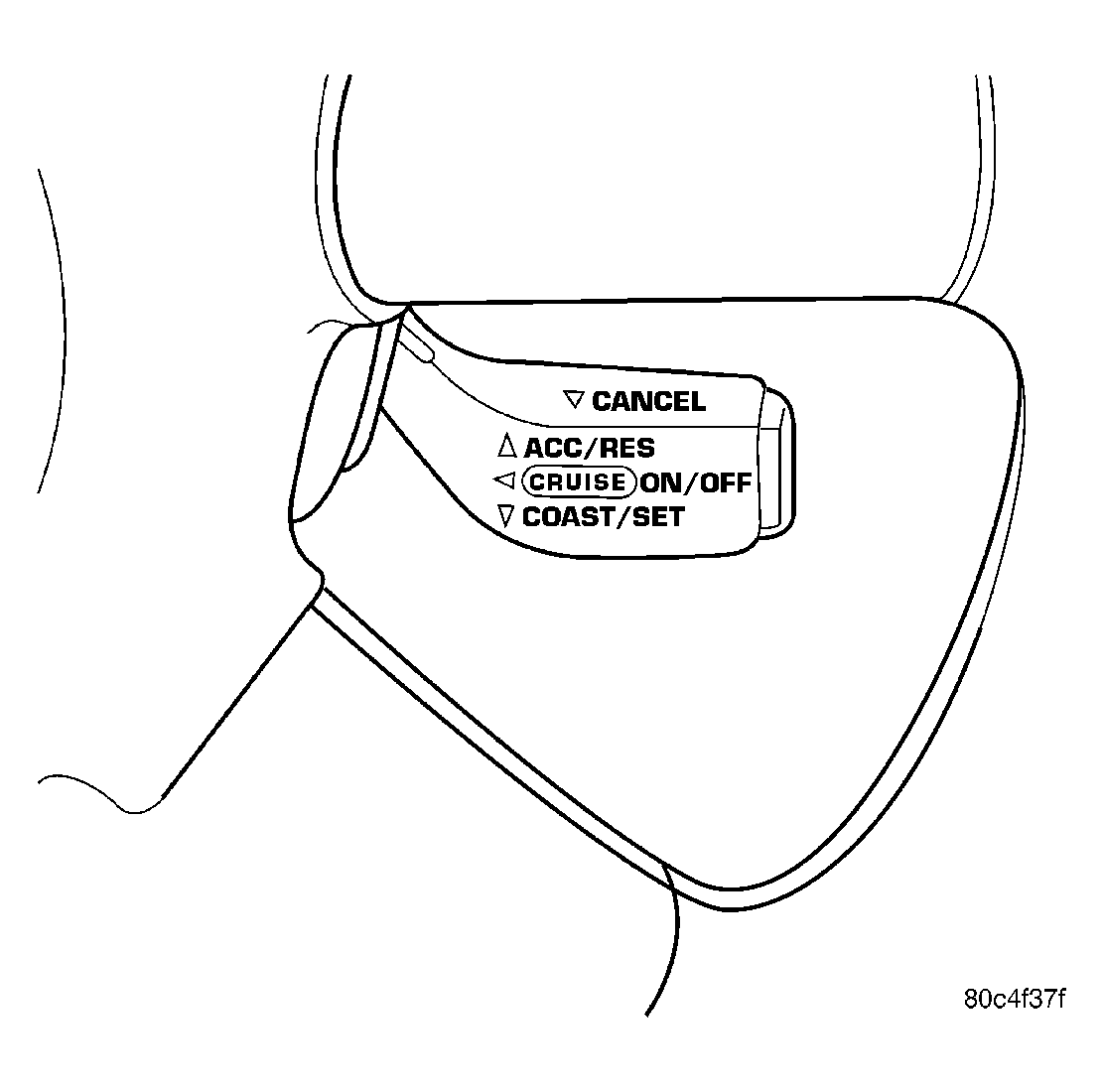

Fig 1: Identifying Speed Control Switch
GC0020014Courtesy of CHRYSLER LLC

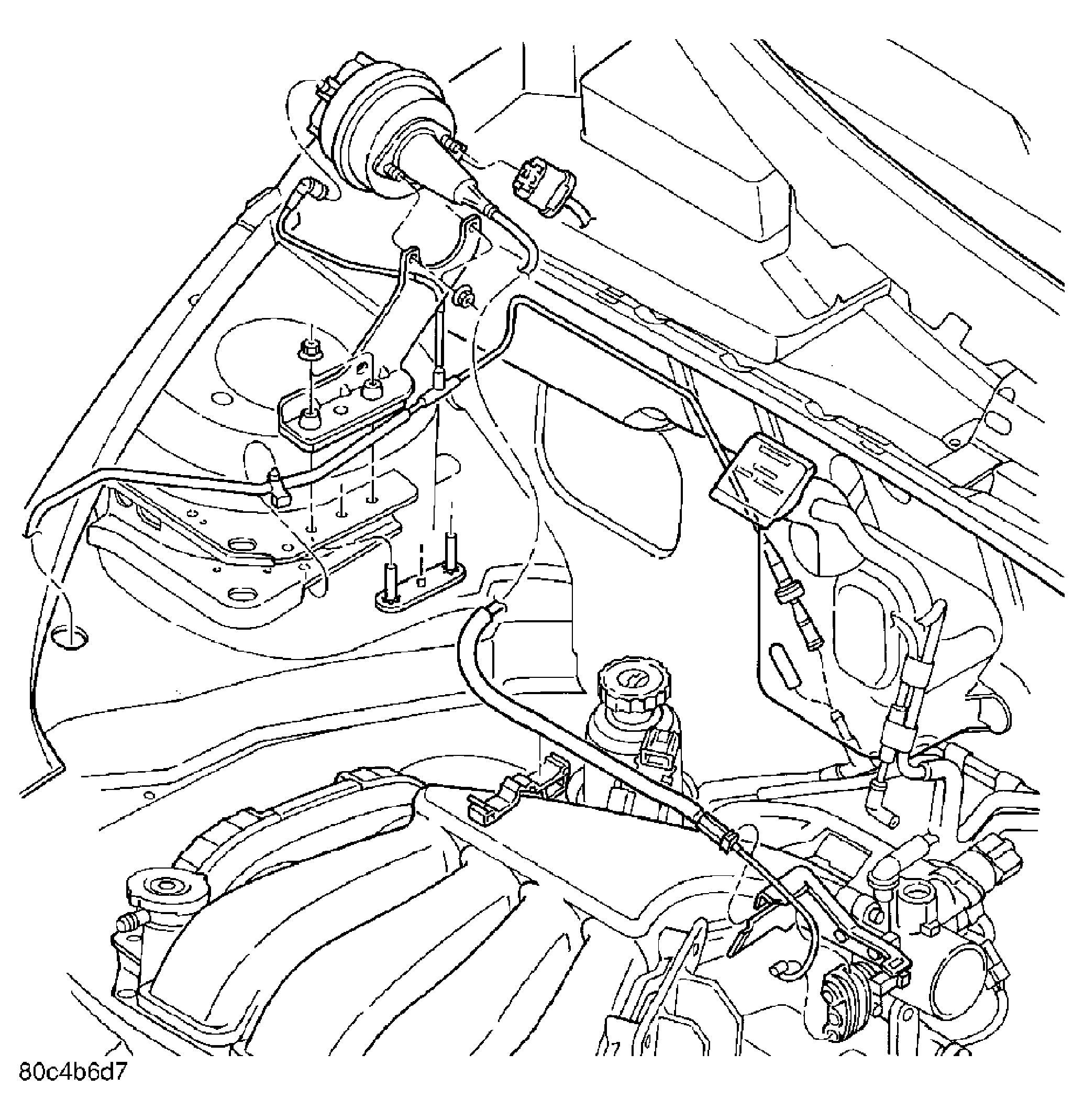

Fig 2: Identifying Speed Control System Components
GC0020015Courtesy of CHRYSLER LLC

The speed control system is electronically controlled and vacuum operated. The electronic control is integrated into the Powertrain Control Module, located on the left side of the engine compartment next to the air cleaner. The controls are located on the steering wheel and consist of a single switch. The ON, OFF, RESUME, ACCEL, SET, COAST and CANCEL, lever is located on the right of the steering wheel.

The system is designed to operate at speeds above 25 mph (40 km/h).

WARNING: the use of speed control is not recommended when driving conditions do not permit maintaining a constant speed, such as in heavy traffic or on roads that are winding, icy, snow covered or slippery.
