Speed Control Switch

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

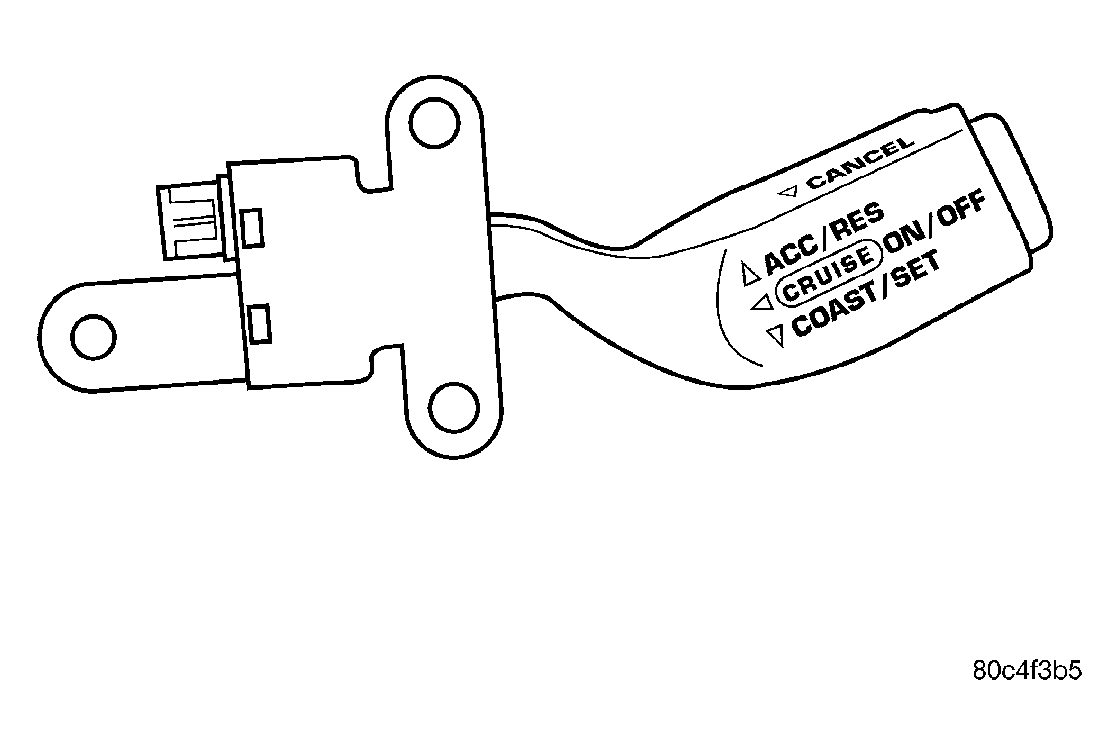

Fig 1: Speed Control Switch

Courtesy of CHRYSLER LLC

The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.

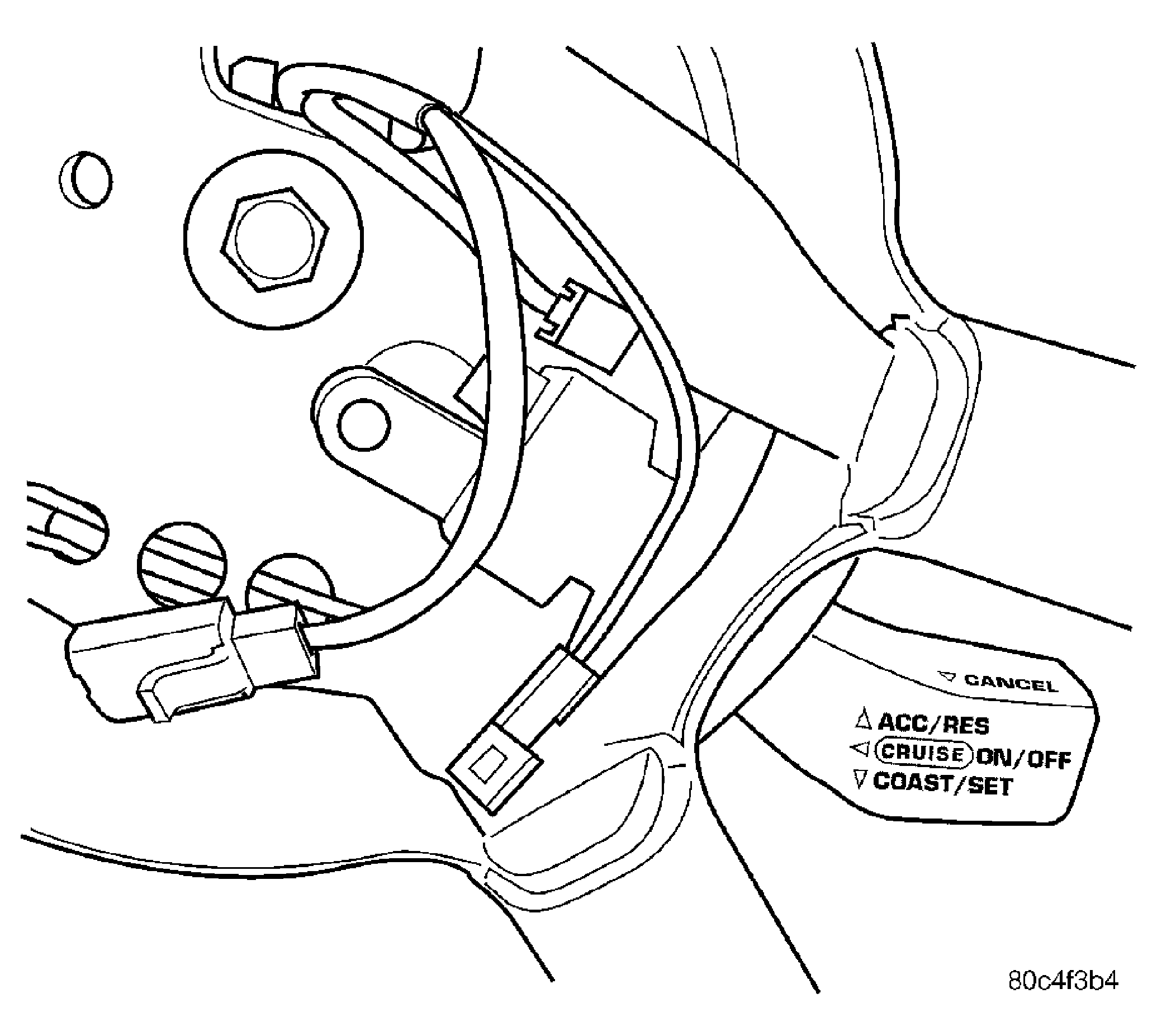

Fig 2: Removing/Installing - Speed Control Switch & Positioning

Courtesy of CHRYSLER LLC

WARNING: If removal of airbag module is necessary, refer to RESTRAINTS - SERVICE INFORMATION .

Connect the electrical connector.

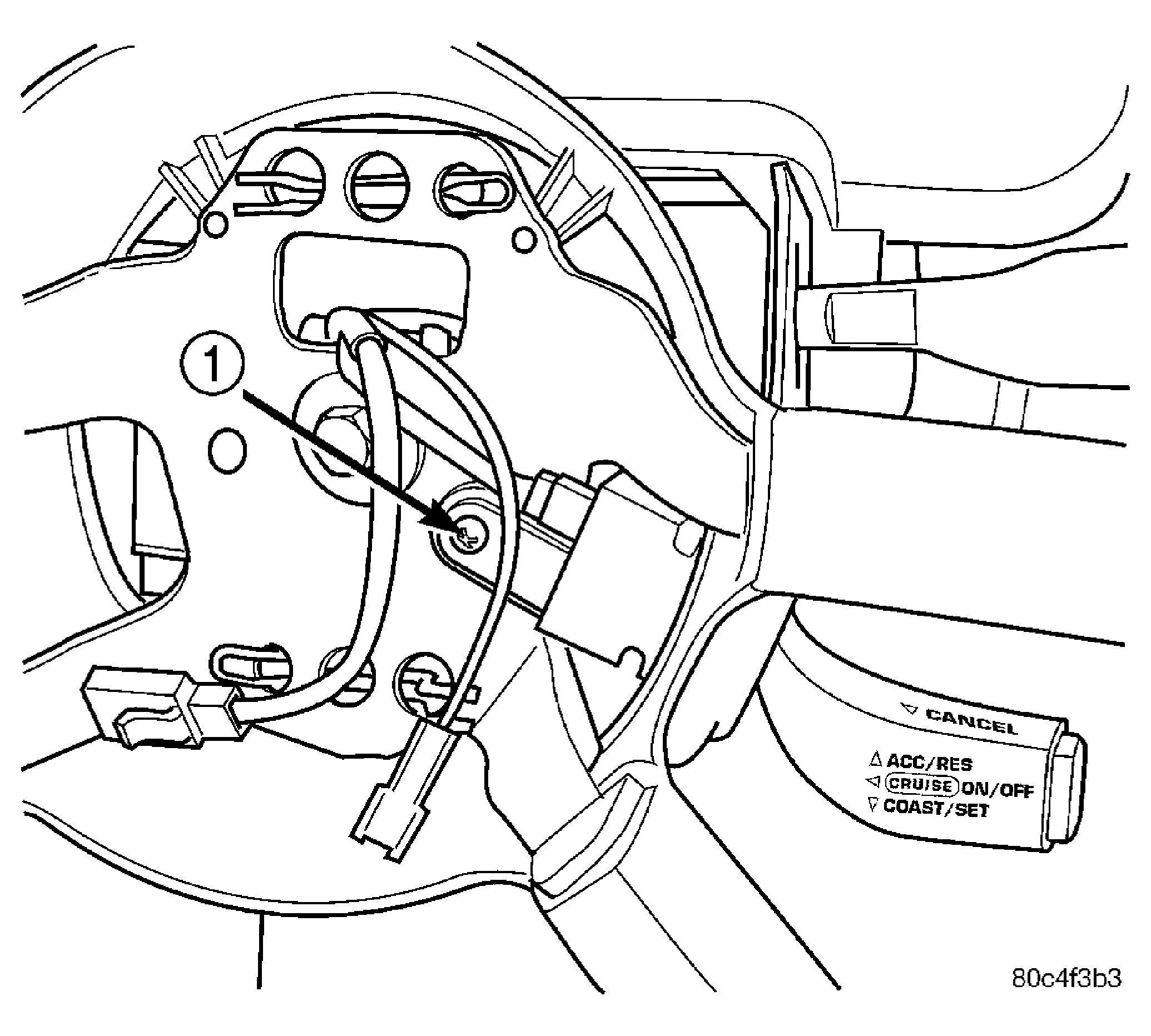

Fig 3: Speed Control Switch Fastener (Top Mounting Screw)
Courtesy of CHRYSLER LLC

1 - TOP MOUNTING SCREW
Install switch and tighten the screws (1) to 1.6 N.m (15 in. lbs.). Make sure rubber seal is in place around switch.
Install airbag, refer to RESTRAINTS - SERVICE INFORMATION .
Install the negative battery cable.
Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
