Module-Antilock Brake - MK25E: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean any debris off the mating surfaces of the HCU and ABM.
    CAUTION: When installing new O-rings or solenoid valve stem seals, do not use any type of lubricant.

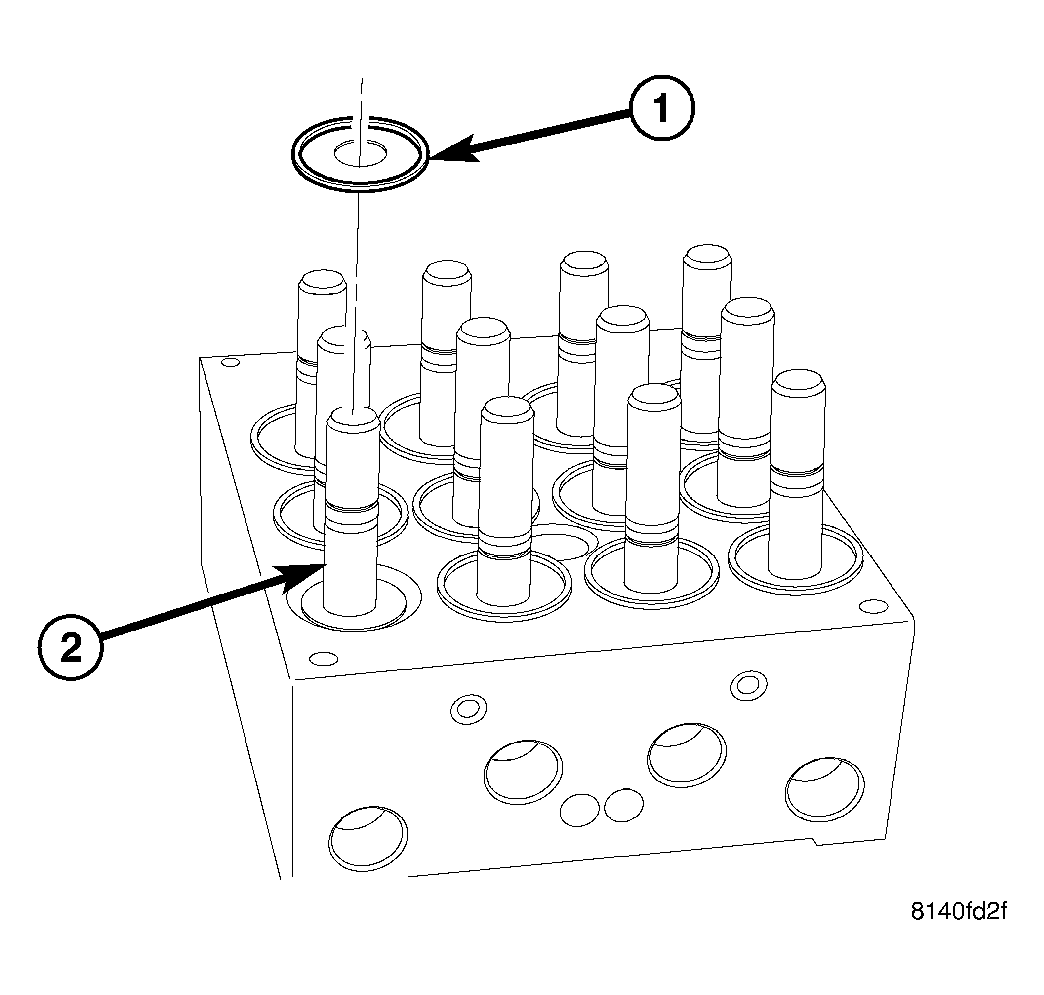

    Fig 1: Solenoid Valve Seal
    GC0039495Courtesy of DAIMLERCHRYSLER CORP.
  2. If the seals (1) on the solenoid valve stems (2) are not new, replace them all. Each of the solenoid valve stem seals must be new to keep out moisture and debris; do not reuse solenoid valve stem seals  .

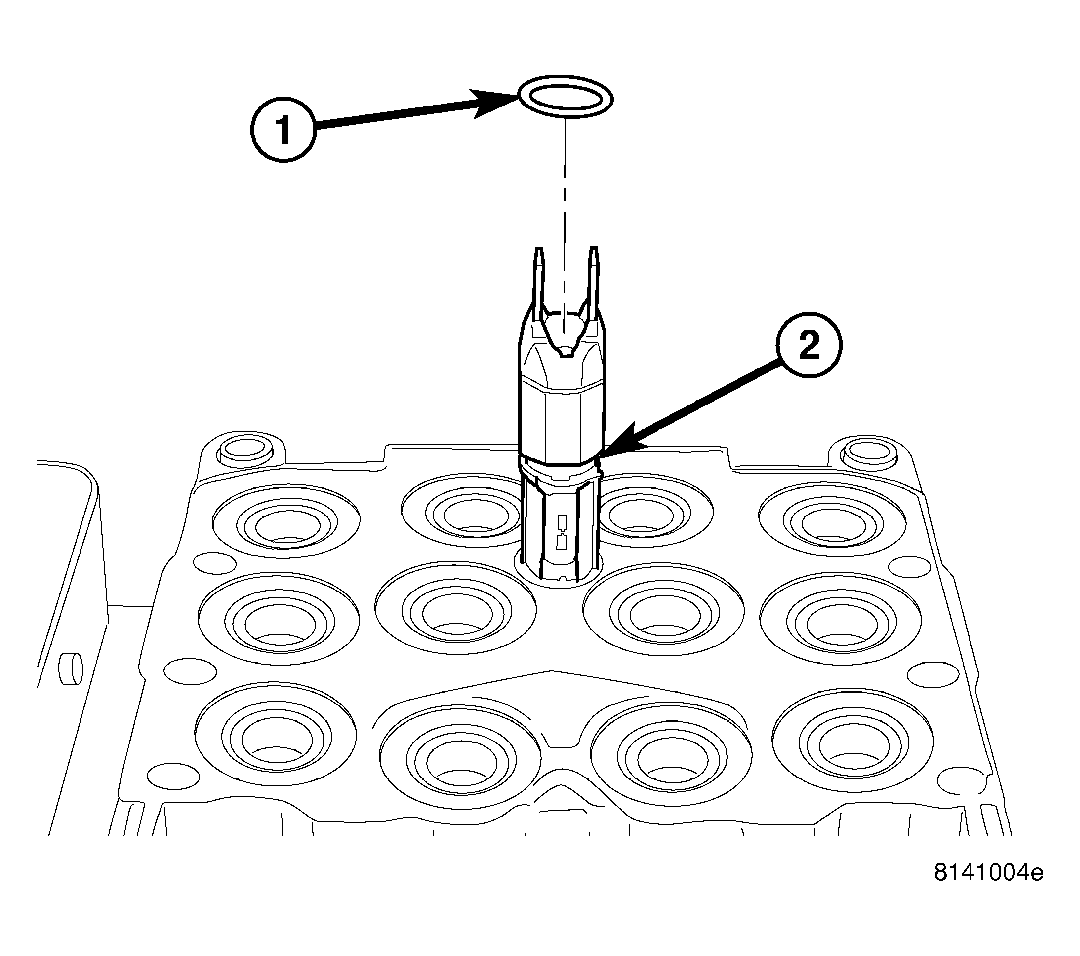

    Fig 2: Replacing Pump/Motor Connector O-Ring
    GC0039496Courtesy of DAIMLERCHRYSLER CORP.
  3. Replace the pump/motor connector O-ring (1) if it is not new. Be sure the O-ring is properly seated in the mounting groove (2).

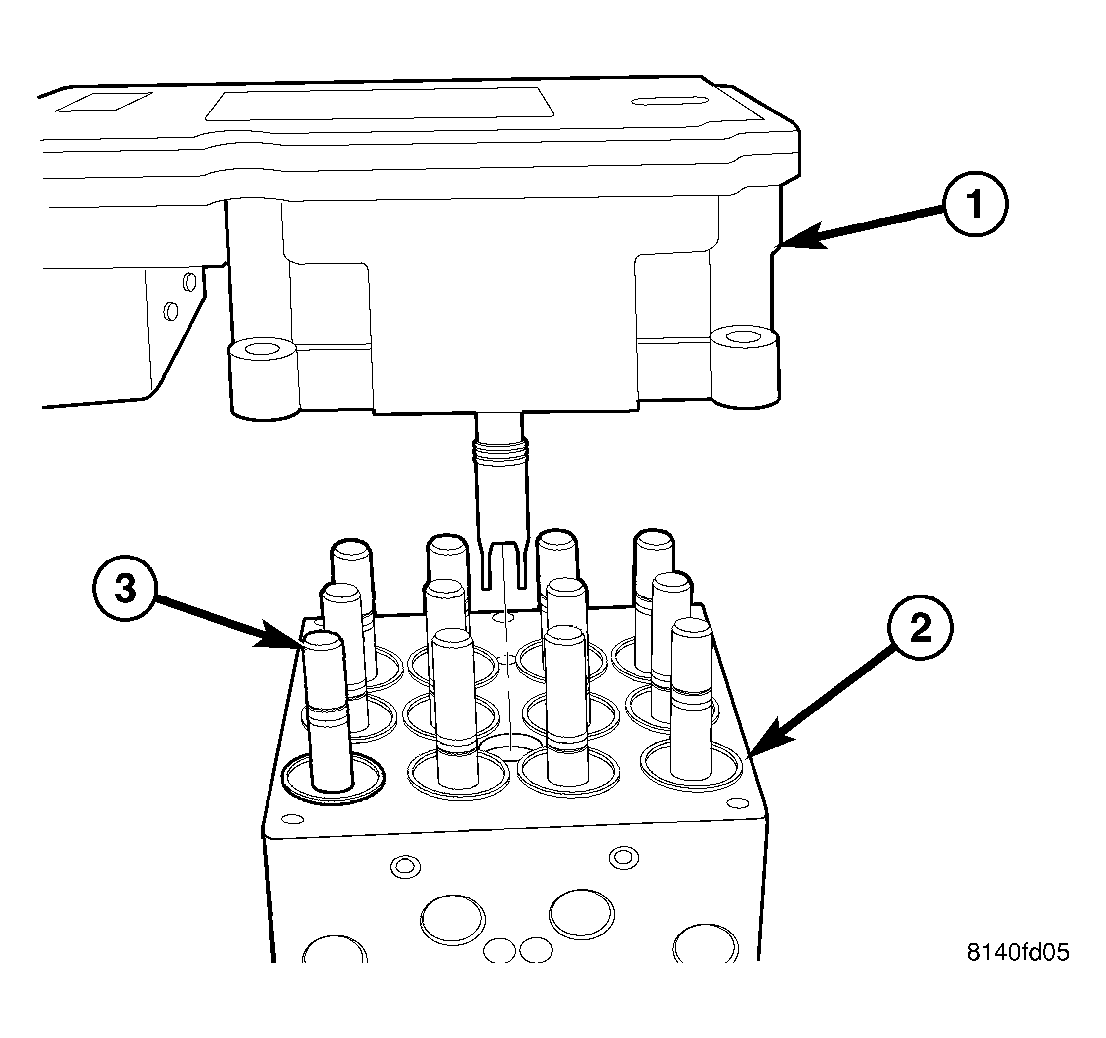

    Fig 3: Separation/Installation of ABM & HCU
    GC0039494Courtesy of DAIMLERCHRYSLER CORP.
  4. Align components and install the ABM (1) on the HCU (2).

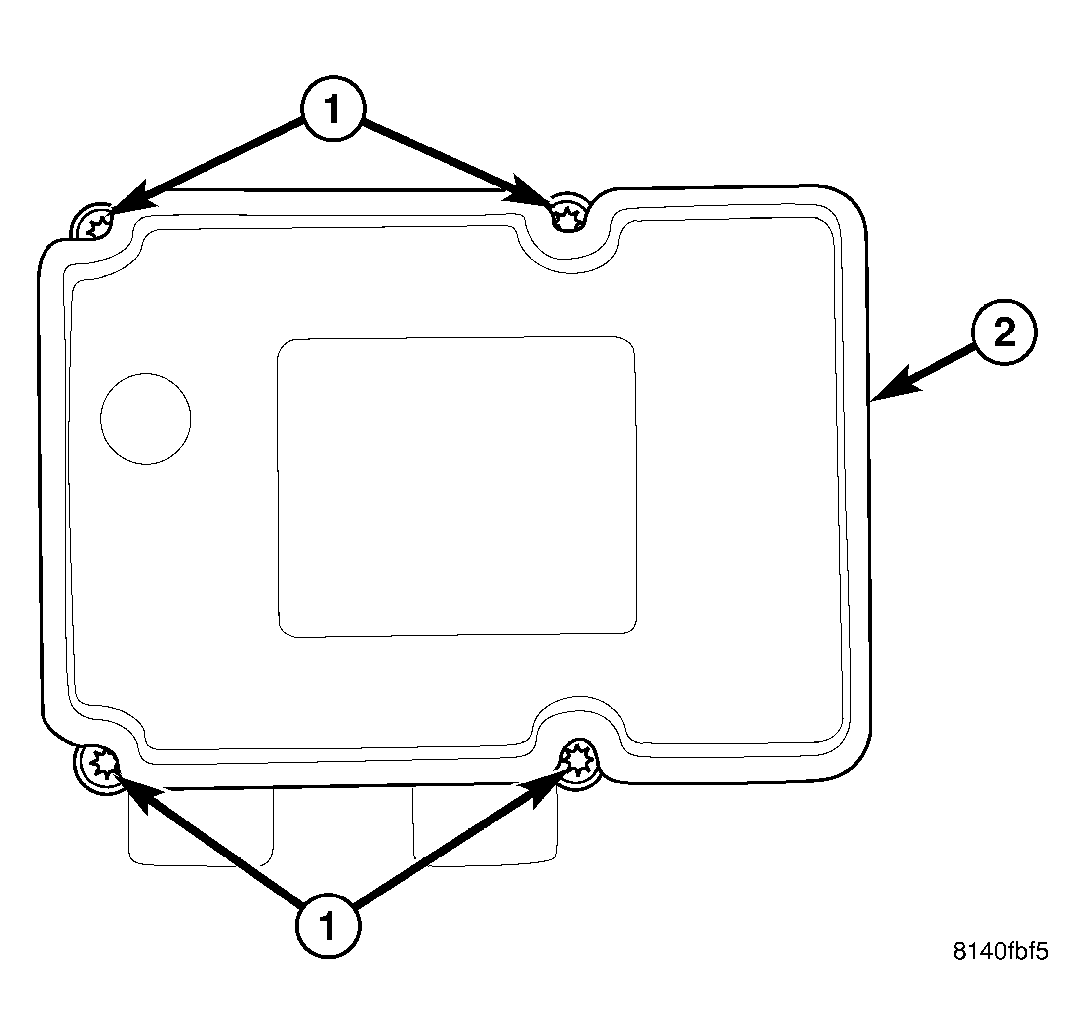

    Fig 4: Removing/Installing ABM Mounting Screws
    GC0039493Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the four screws (1) attaching the ABM (2) to the HCU. Tighten the mounting screws to 2 N.m (17 in. lbs.).

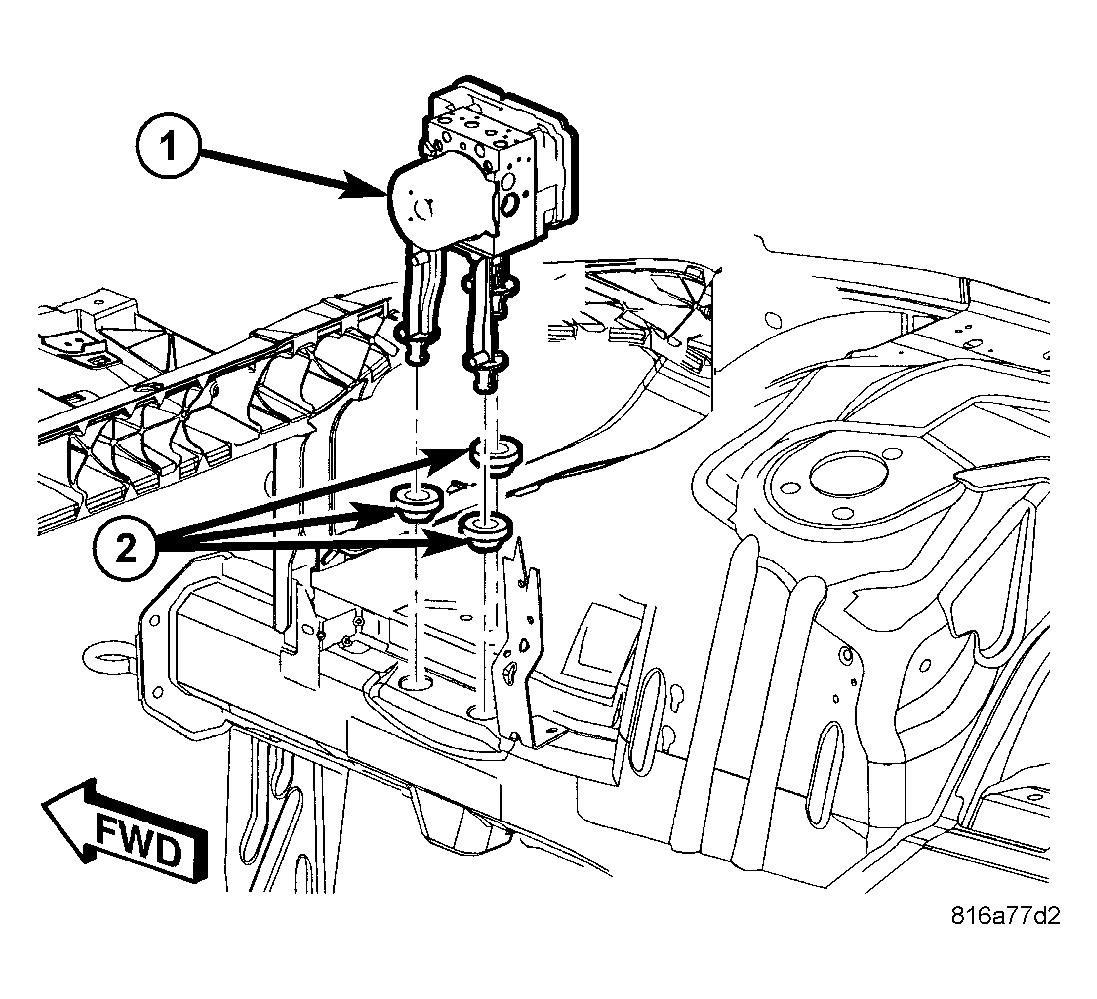

    Fig 5: ICU Mounting
    GC0039487Courtesy of DAIMLERCHRYSLER CORP.
  6. Position ICU (1) above mounting grommets (2) located in body side rail and press mounting bracket into place.

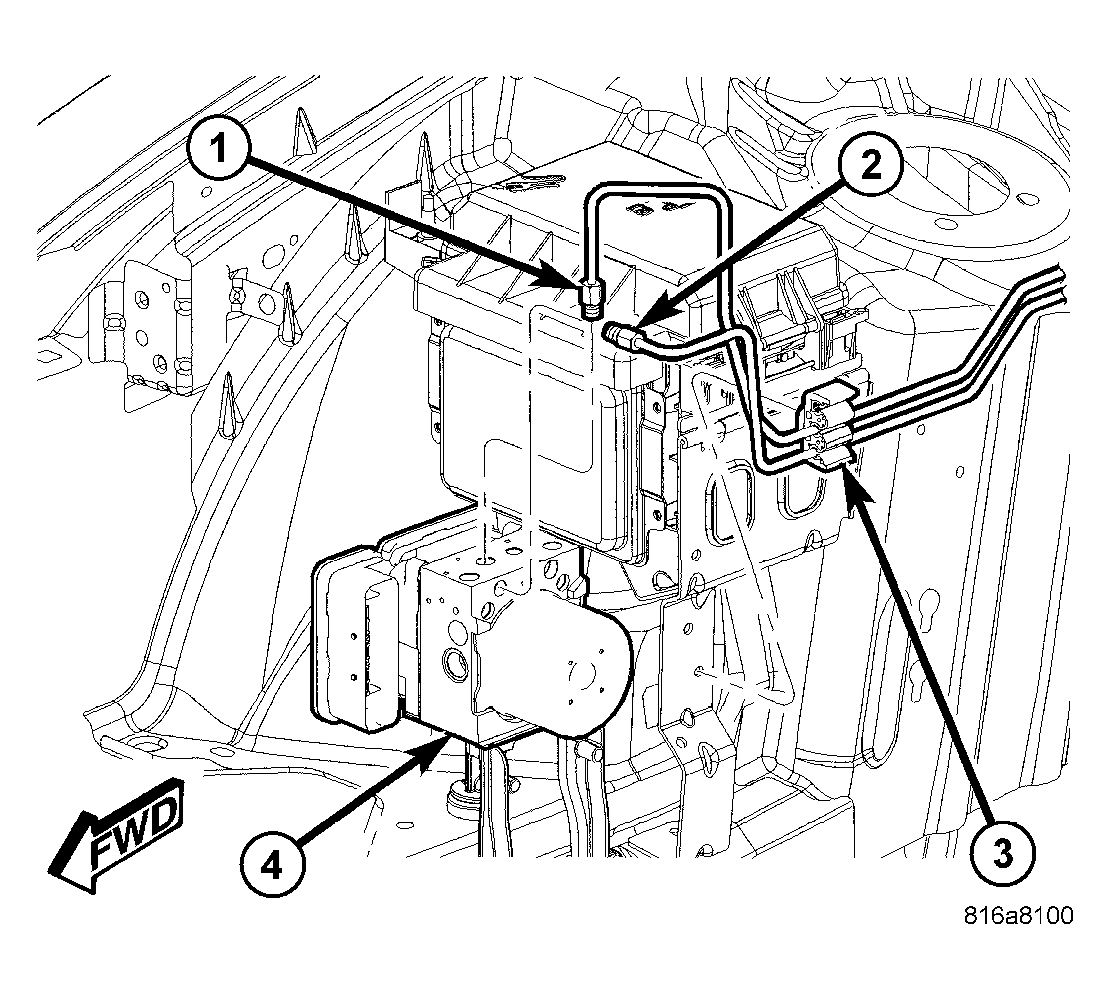

    Fig 6: Left Rear And Right Rear Brake Tubes At ICU
    GC0039490Courtesy of DAIMLERCHRYSLER CORP.
  7. Clip rear brake tubes (1, 2) to routing clip (3) on bracket below Fuse And Relay Center.

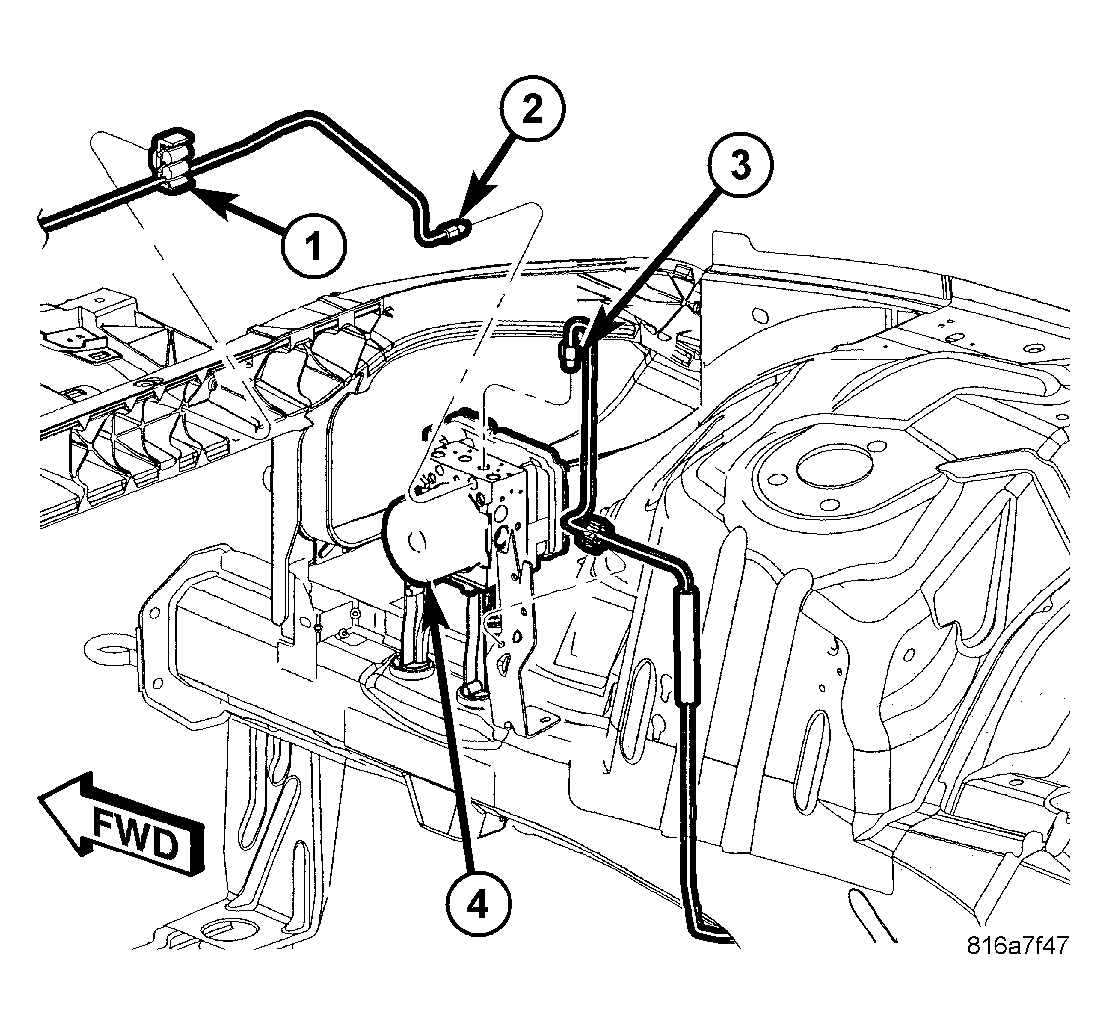

    Fig 7: Left Front And Right Front Brake Tubes At ICU
    GC0039489Courtesy of DAIMLERCHRYSLER CORP.
  8. Clip right front brake tube (3) to routing clip on bracket below Fuse And Relay Center.
  9. Clip brake tubes to two routing clips (1) along upper radiator support.

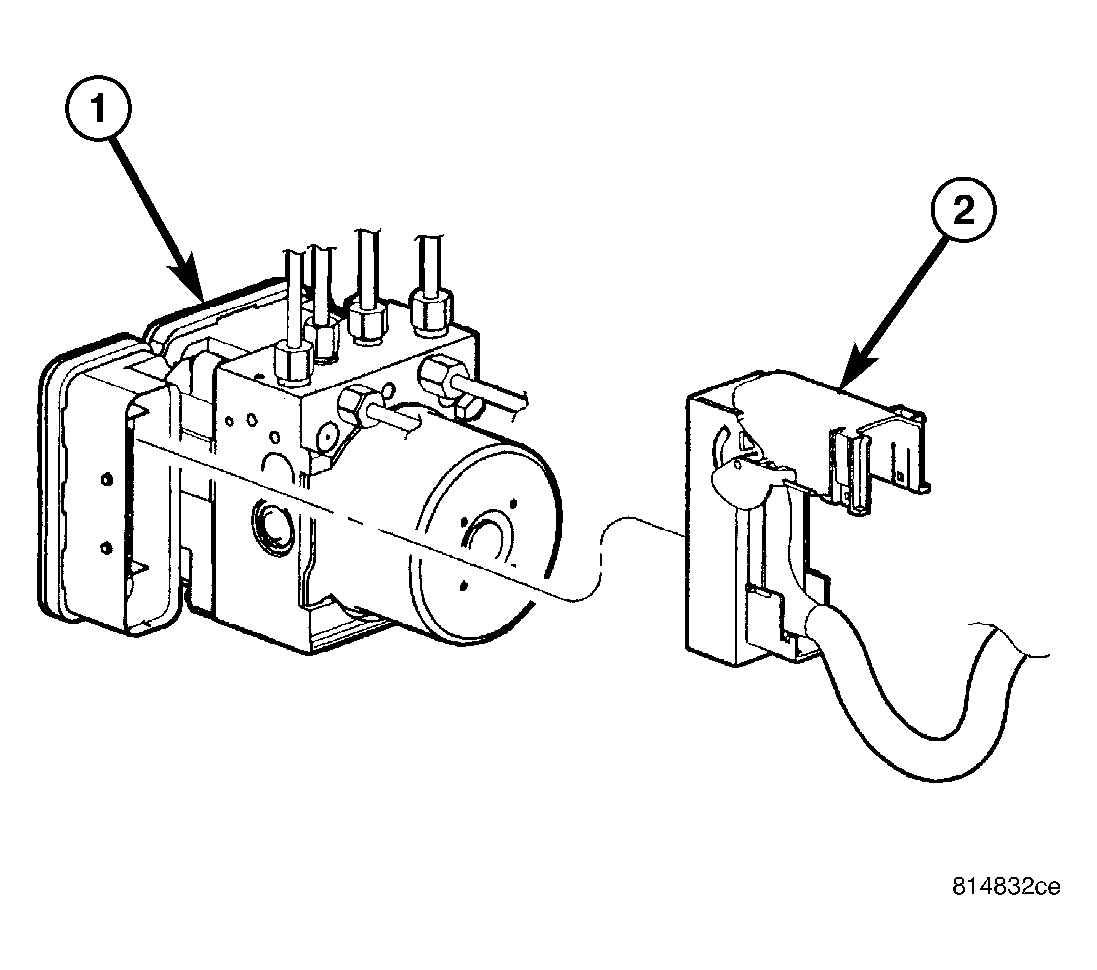

    Fig 8: Wiring Harness Connector At ABM
    GC0039492Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: Before installing the ABM harness connector (2) on the ABM (1), be sure the seal is properly installed in the connector.
  10. Insert ABM harness connector (2) into socket of ABM (1) and close cover, locking connector in place.

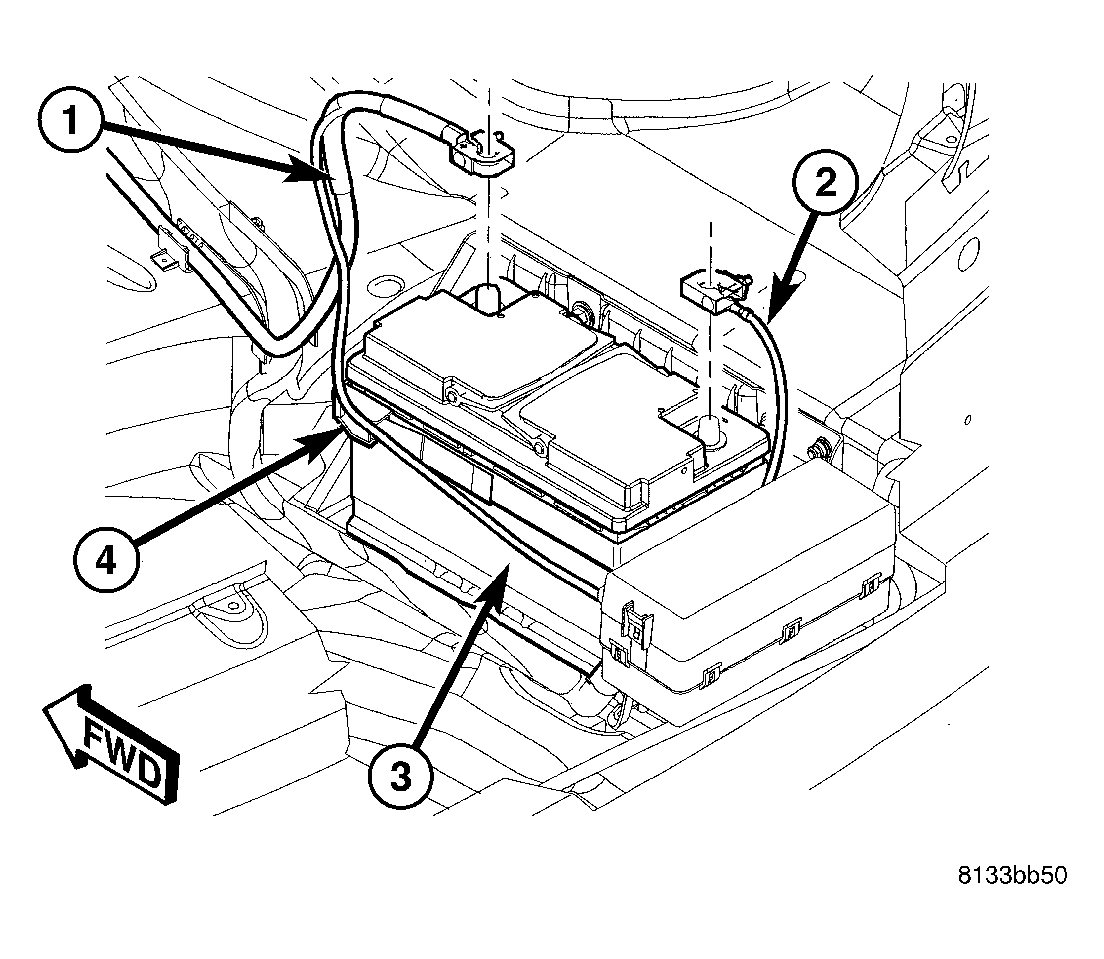

    Fig 9: LX BATTERY AND CABLES
    GC0040730Courtesy of DAIMLERCHRYSLER CORP.
  11. Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
  12. Perform Diagnostic Verification Test and clear any faults. (Refer to BRAKES - DIAGNOSIS AND TESTING)
