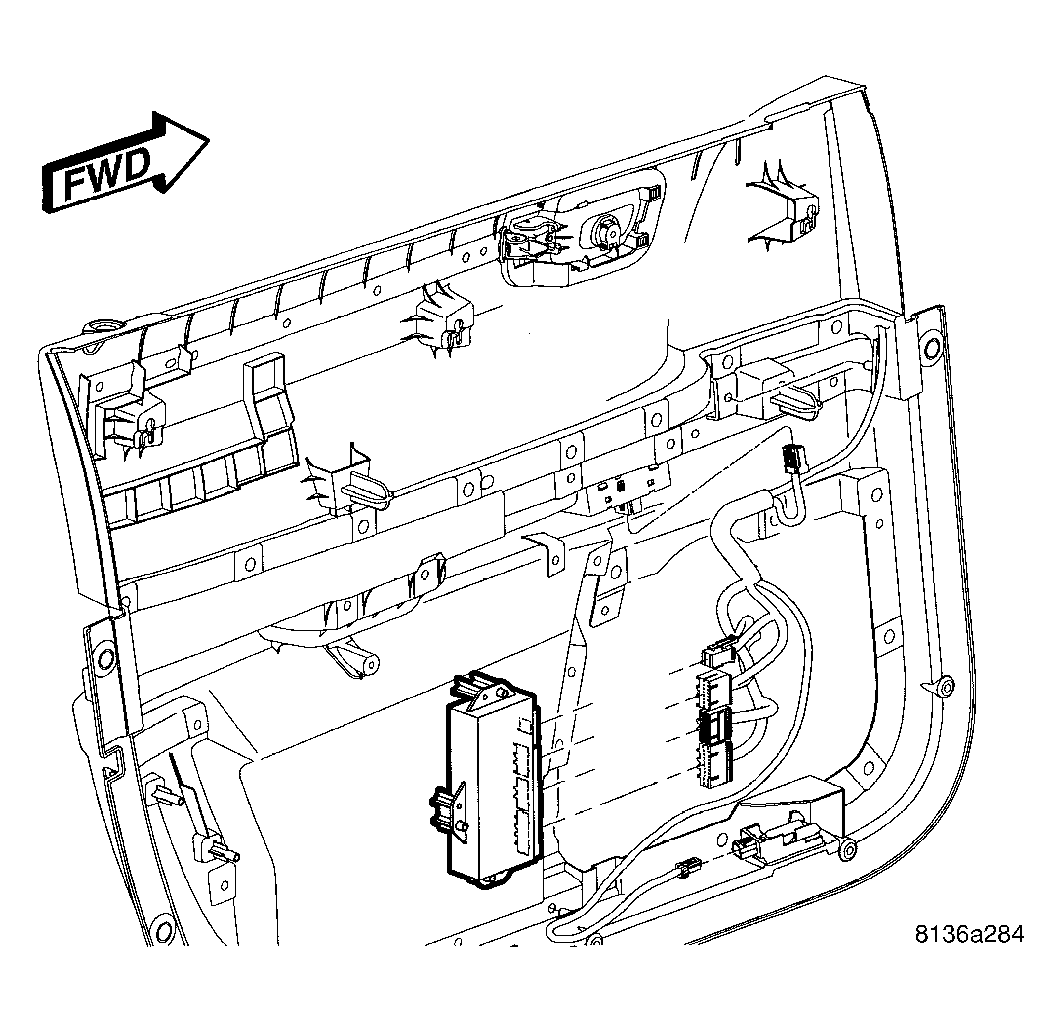

Section 21 (Electronic Control Modules (Service Information)): Module-Door: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
.
- Disconnect and isolate the battery negative cable.
- Remove front door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
- Disconnect electrical harness connectors.
- Remove mounting fasteners and module.
