Module-Seat Memory: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

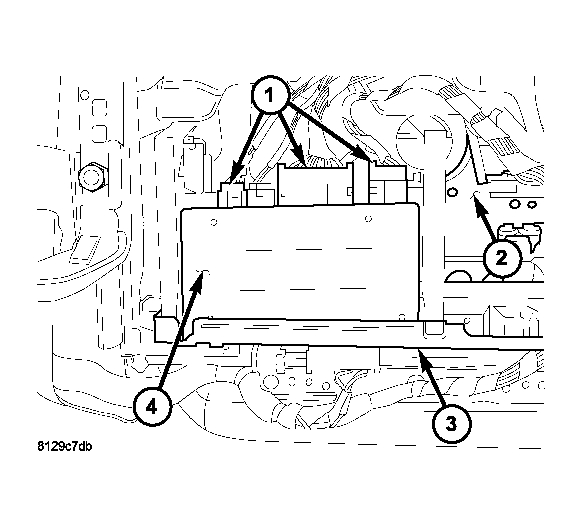

Fig 1: Removing/Installing Memory Seat Module
GC0015859Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the driver seat cushion/cover (2) (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL) .
  3. Pivot the module upward and disconnect the electrical connectors (1).
  4. Unsnap the memory seat module (4) from the side brackets.
  5. Pull the module rearward to remove it from the front of the seat frame (3).
