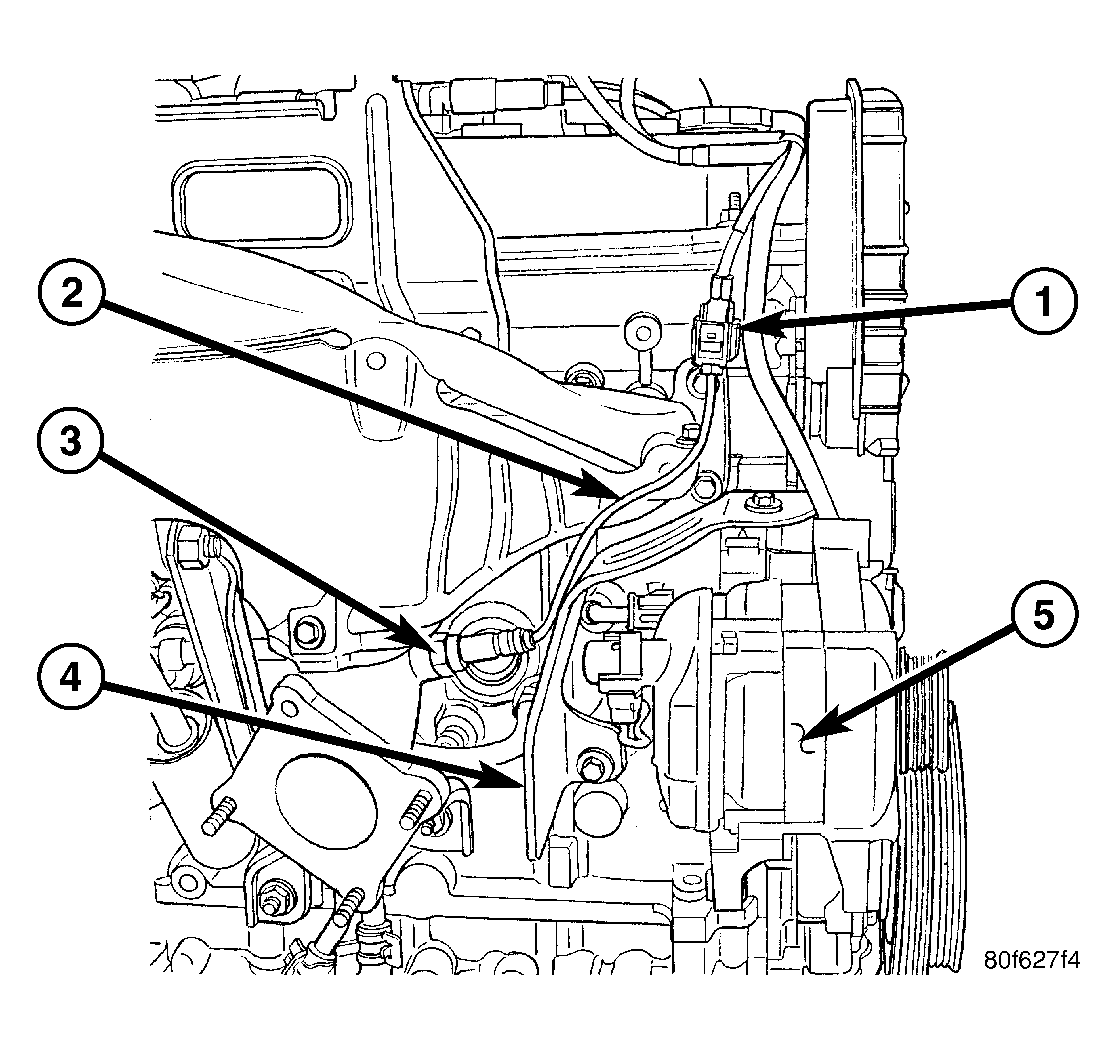

| 1 - O2 Sensor Electrical Connector |
| 2 - Wire routing |
| 3 - O2 Sensor |
| 4 - Heat Shield |
| 5 - Generator |
- Install O2 sensor (3) using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent and tighten to N.m 28 (20 ft. lbs.).
- Route O2 sensor wire above the heat shield (4) for the generator and away from the exhaust manifold.
- Lower vehicle.
- Connect and lock the O2S connector (1). It is on the passenger side near the EVAP purge solenoid.
- Connect the negative battery cable.
