Module-Engine Control: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

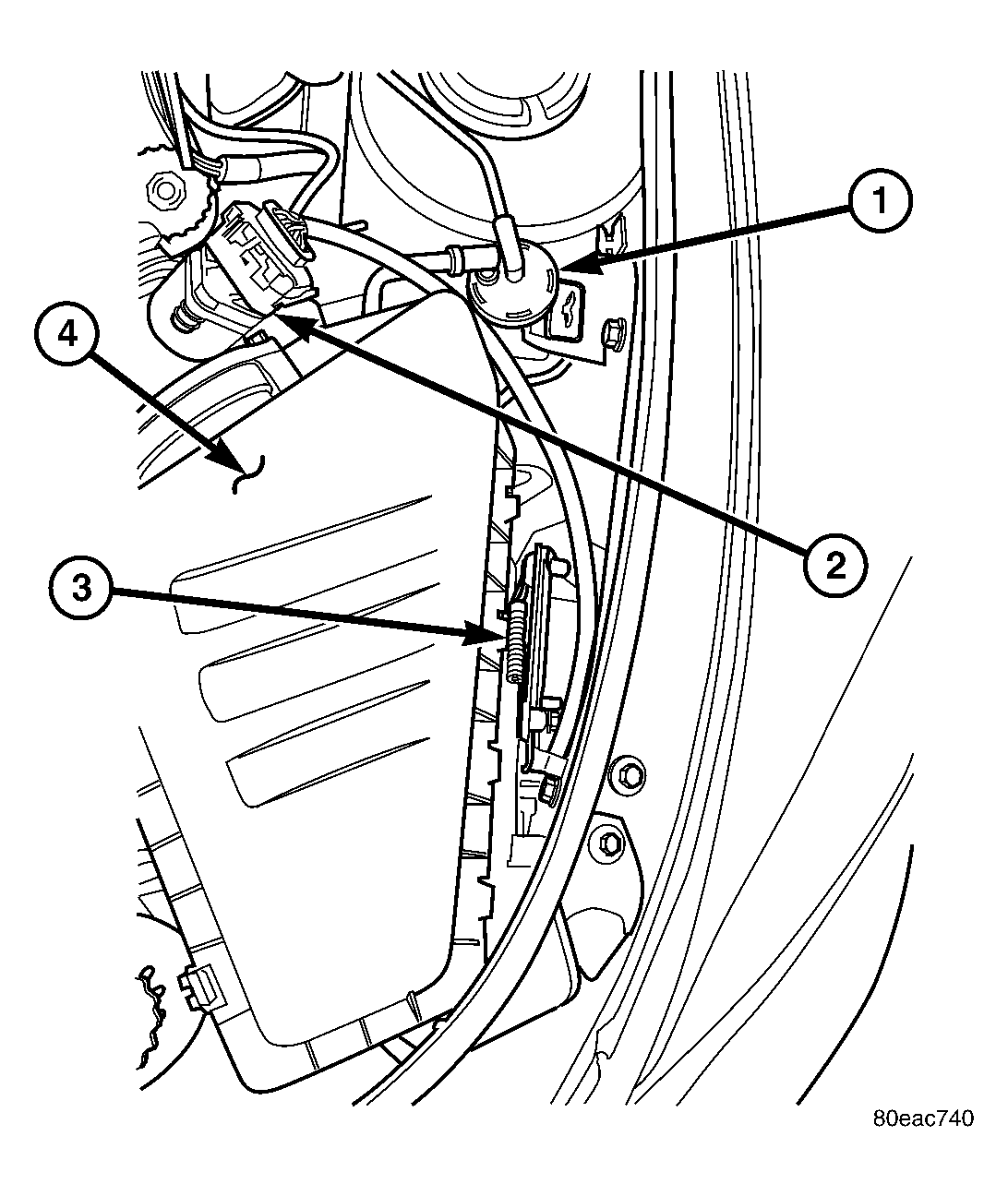

Fig 1: Location Of Engine Control Module (ECM)

Courtesy of DAIMLERCHRYSLER CORP.

1 - EGR SOLENOID

2 - MAF SENSOR

3 - ENGINE CONTROL MODULE (ECM)

4 - AIR CLEANER ASSEMBLY

The Engine Control Module (ECM) (3) is located in the left side of engine compartment attached to the left inner fender behind the battery. See Fig 1.
