Section 95 (Electronic Control Modules (Service Information)): Module-Gateway: Installation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Install the Gateway module into the mounting brackets.
- Connect the electrical connectors.

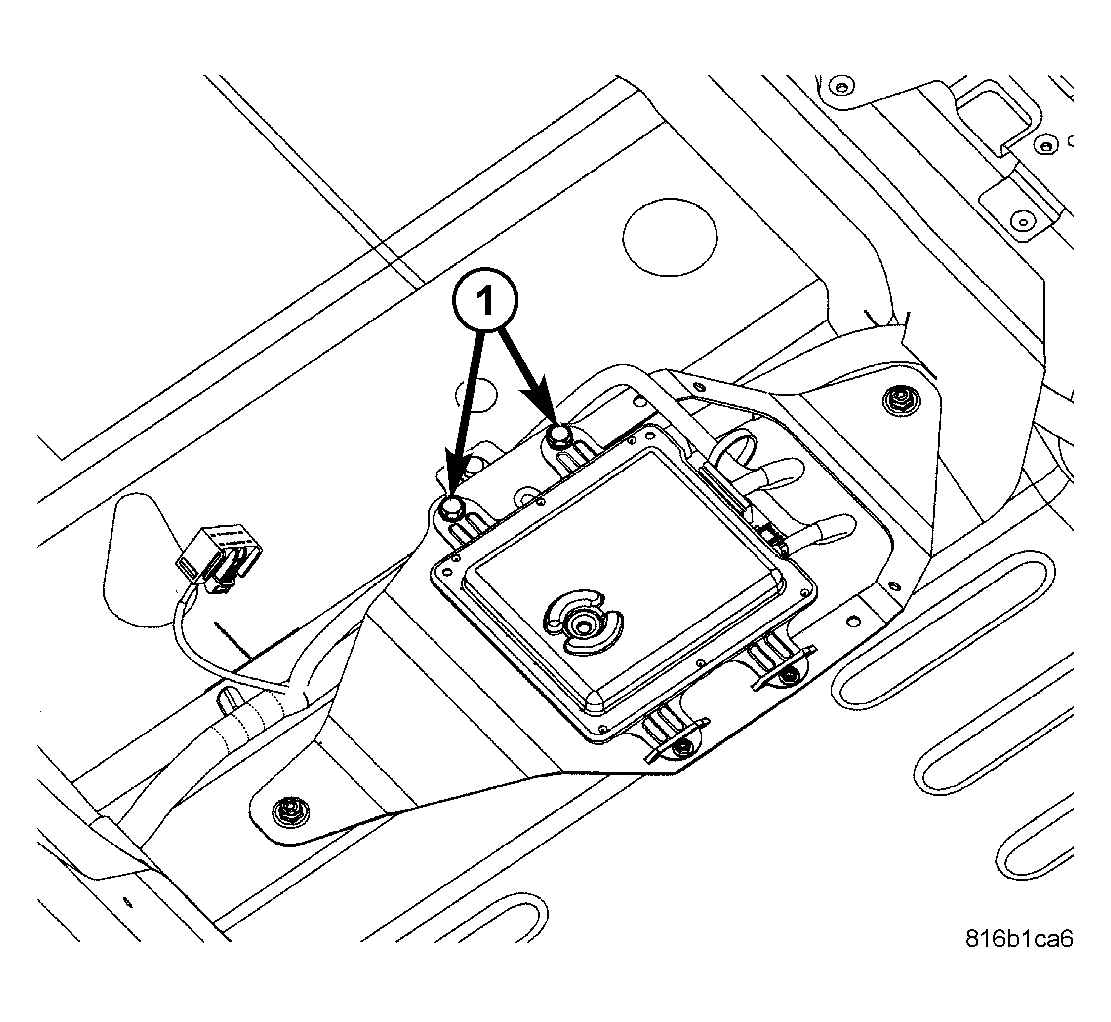

- Install mounting bolts (1).
- Connect the battery negative cable.
- Program the Gateway. (Refer to ELECTRICAL/VEHICLE THEFT SECURITY/TRANSPONDER KEY - STANDARD PROCEDURE) .
