2.4/2.4L Turbo

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

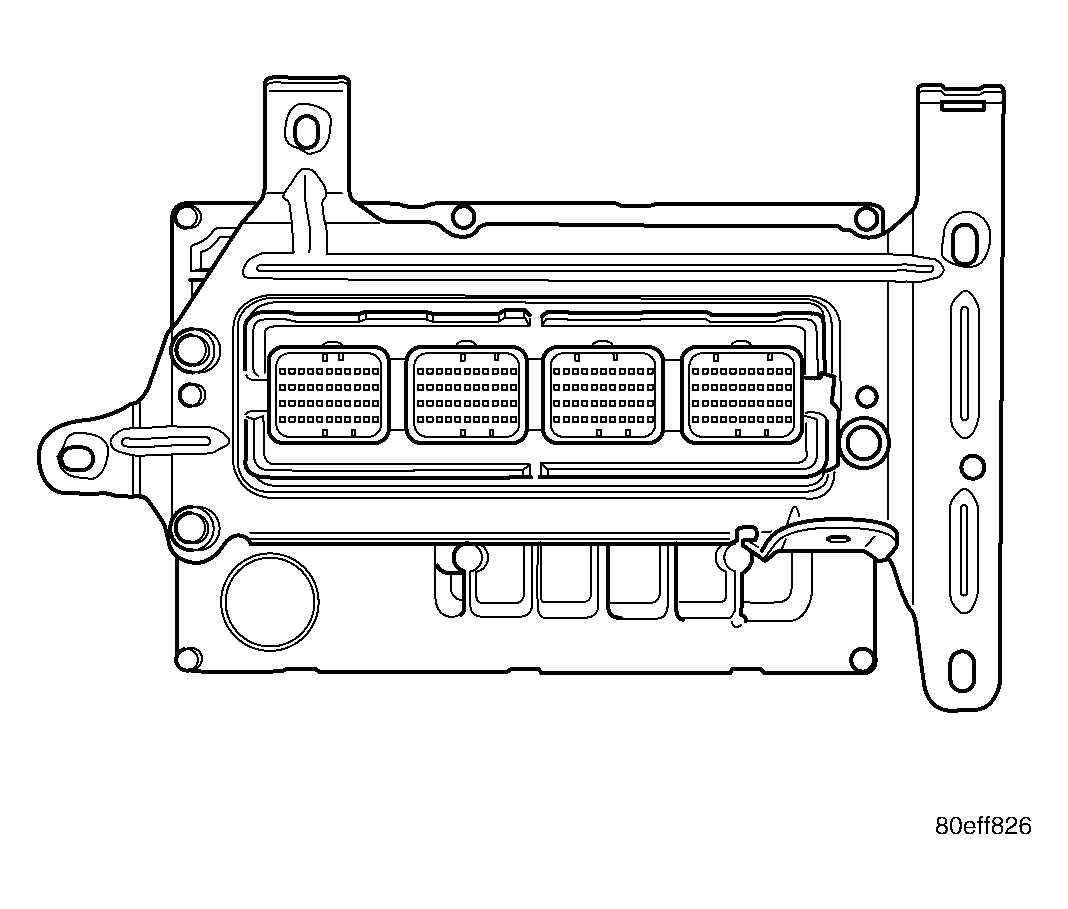

Fig 1: PCM And Mounting Bracket

Courtesy of DAIMLERCHRYSLER CORP.

Install the PCM bracket and three mounting bolts (2) to the PCM and tighten to 11.8 N.m (105 in. lbs.). See Fig 1.

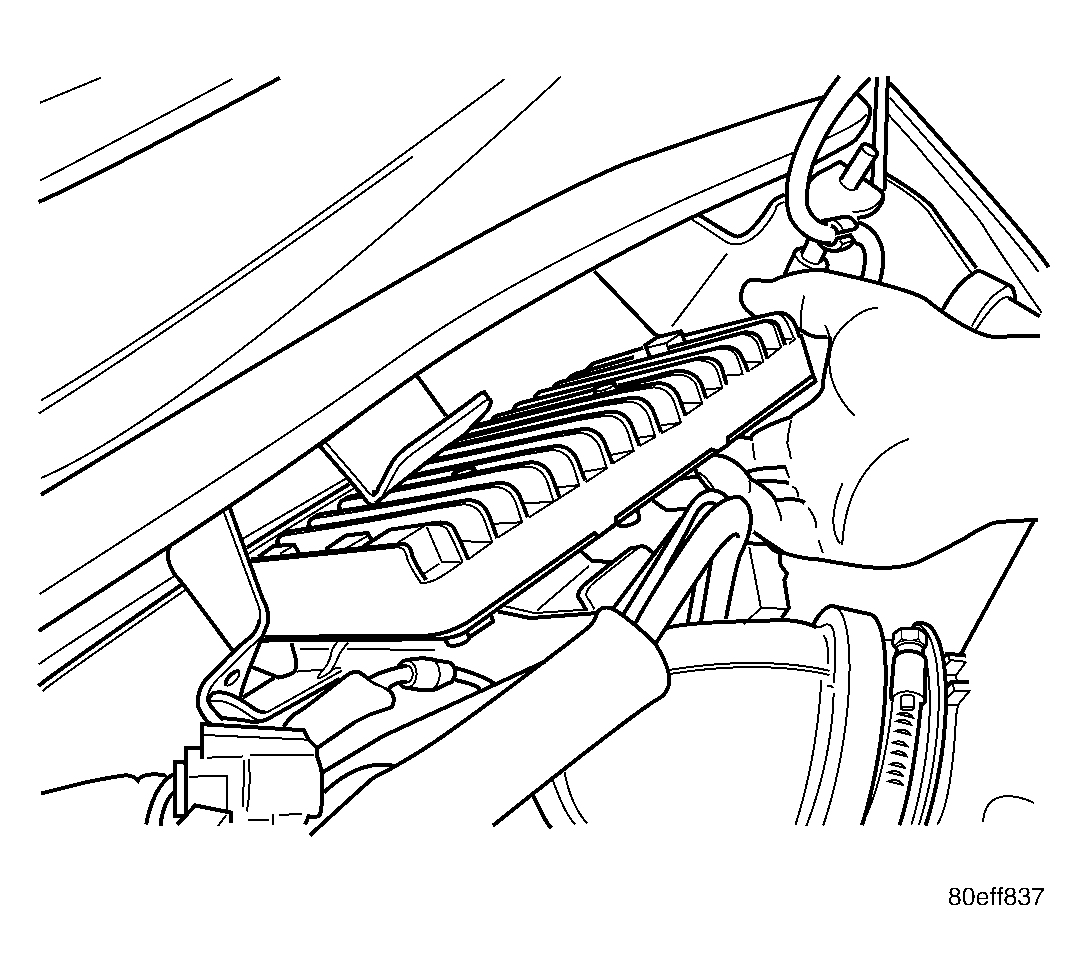

Fig 2: Removing/Installing PCM
Courtesy of DAIMLERCHRYSLER CORP.
Tip PCM and bracket assembly into bracket.

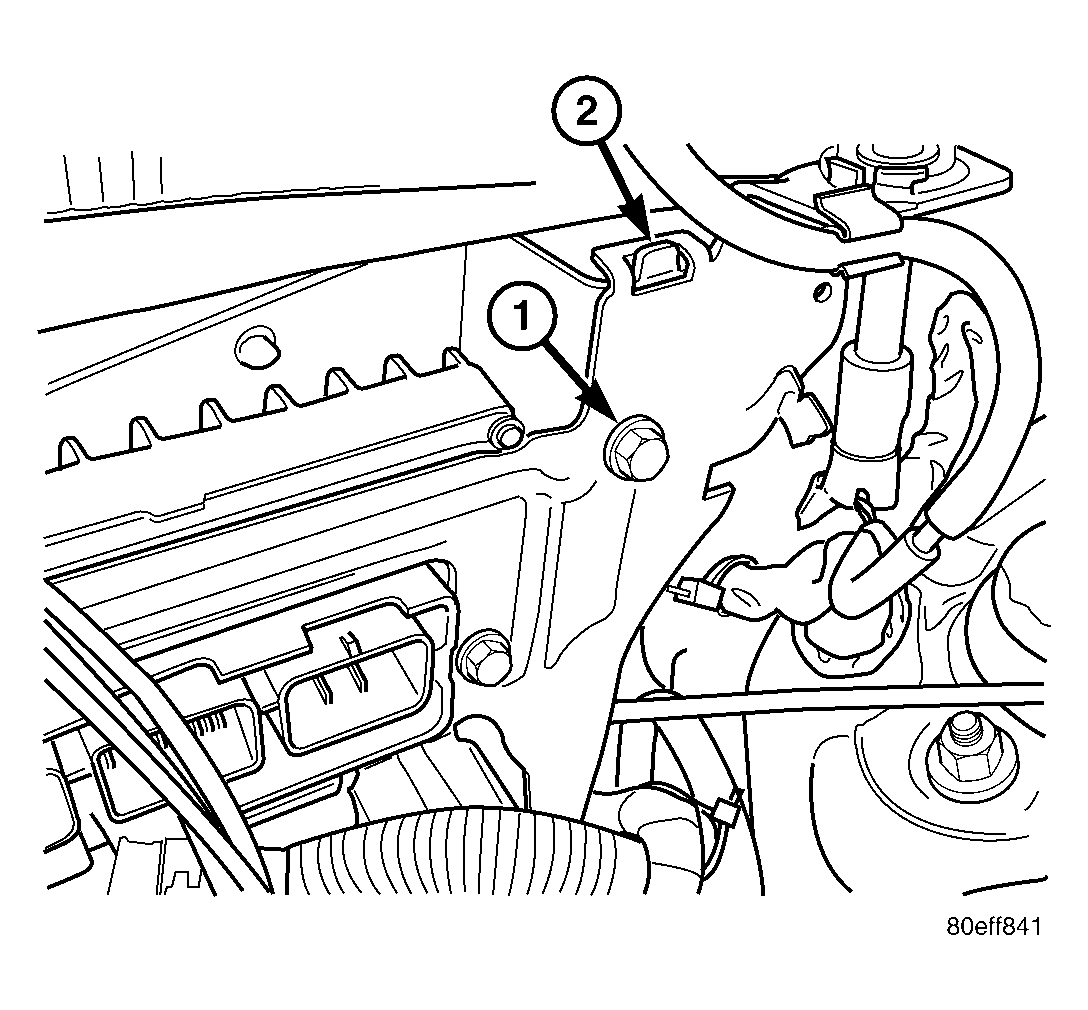

Fig 3: PCM Mounting Screw And Location Tab
Courtesy of DAIMLERCHRYSLER CORP.
Locate the PCM and bracket assembly bracket on the tab (2).

Fig 4: PCM And Mounting Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Install the four mounting bolts to the PCM mounting bracket (1) and tighten to 10.7 N.m (95 in. lbs.). See Fig 4.

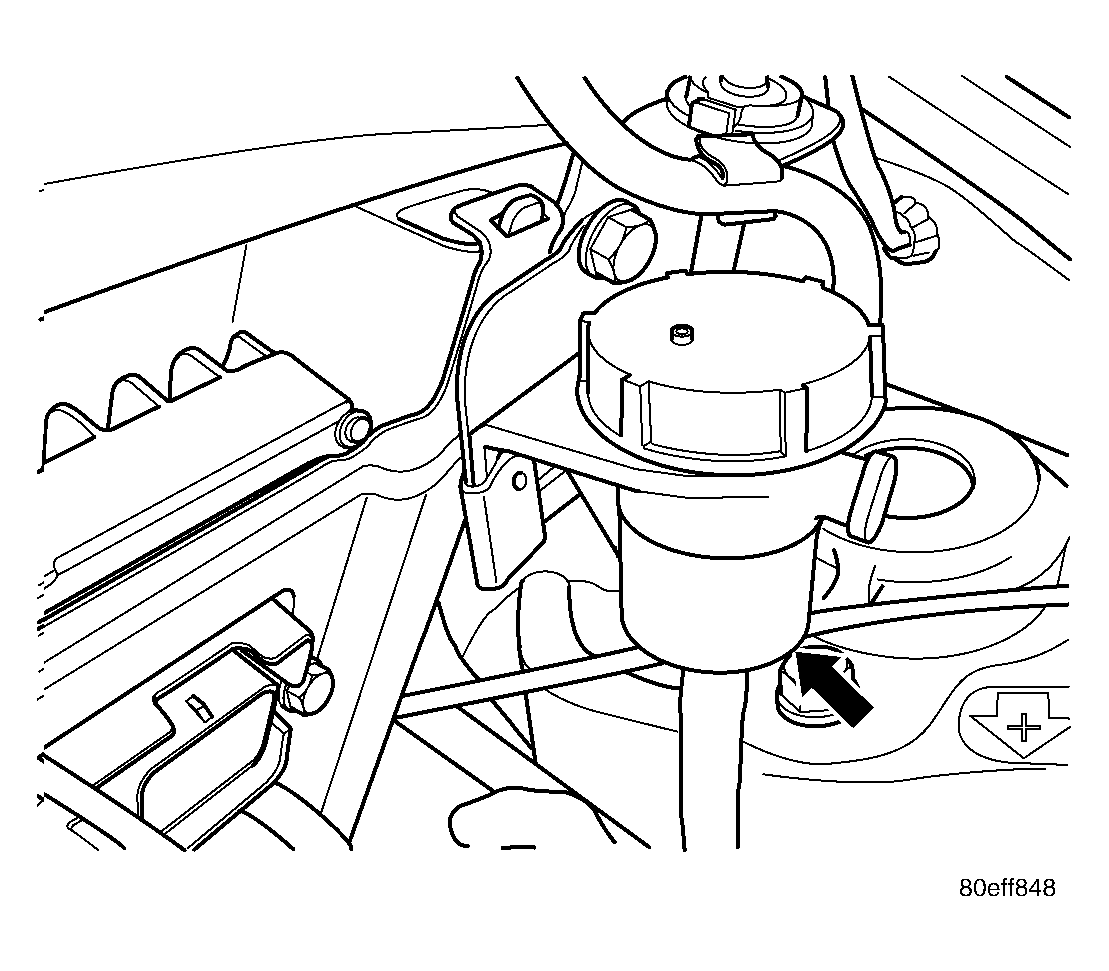

Fig 5: Clutch Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Relocate and install the clutch reservoir.

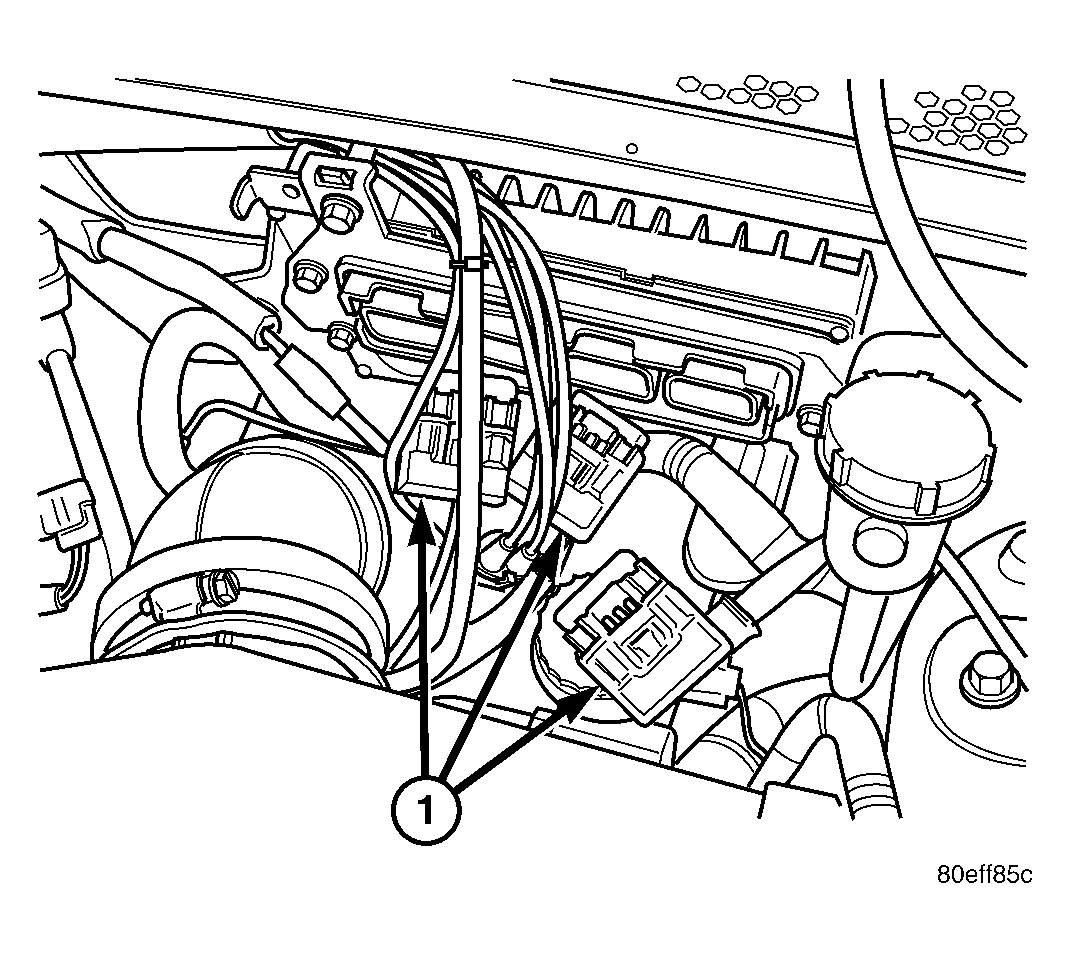

Fig 6: Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.

1 - Electrical Connectors

NOTE: The electrical connector for the PCM are COLOR Coded.
Connect and lock the 3 or 4 electrical connectors (1) to the Powertrain Control Module (PCM).
Install plastic clips that hold the wiring harness to the support bracket.
Connect the negative battery cable.
