2.4/2.4L Turbo

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

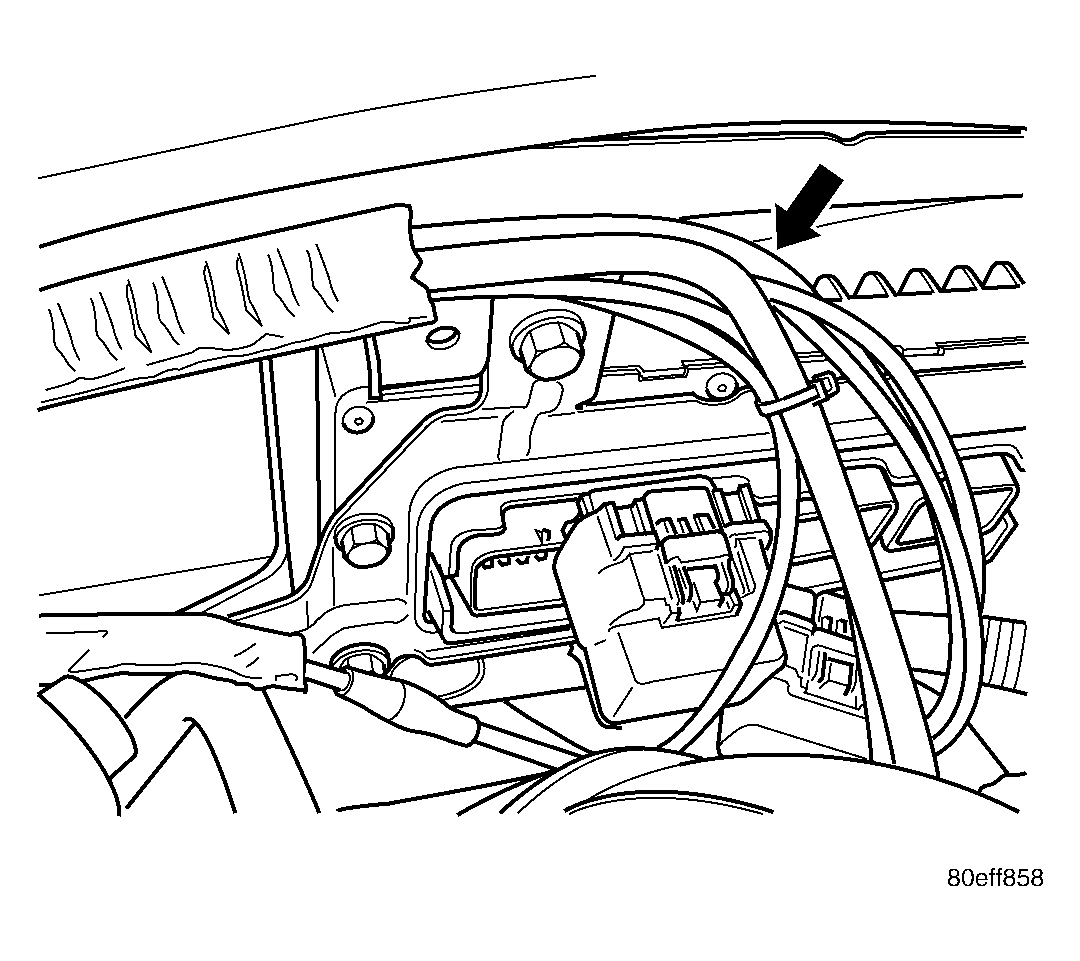

Fig 1: Vacuum Lines
GC0022887Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove plastic clips that hold the wiring harness to the support bracket.
    Fig 2: PCM Electrical Connectors
    GC0022888Courtesy of DAIMLERCHRYSLER CORP.
    1 - Electrical Connectors
  3. Unlock and disconnect the 3 or 4 electrical connectors (1) from the Powertrain Control Module (PCM).
    Fig 3: Clutch Reservoir
    GC0022886Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the clutch reservoir and relocate.
    Fig 4: PCM And Mounting Bracket
    GC0022882Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the four mounting bolts (1) from the PCM mounting bracket. See Fig 4.
    Fig 5: Removing/Installing PCM
    GC0022883Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove PCM and mounting bracket.
    Fig 6: PCM And Mounting Bracket
    GC0022882Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the three mounting bolts (2) from the PCM bracket to PCM. See Fig 6.
