Timing Drive System
WARNING: This page is about a different variant/trim than selected.

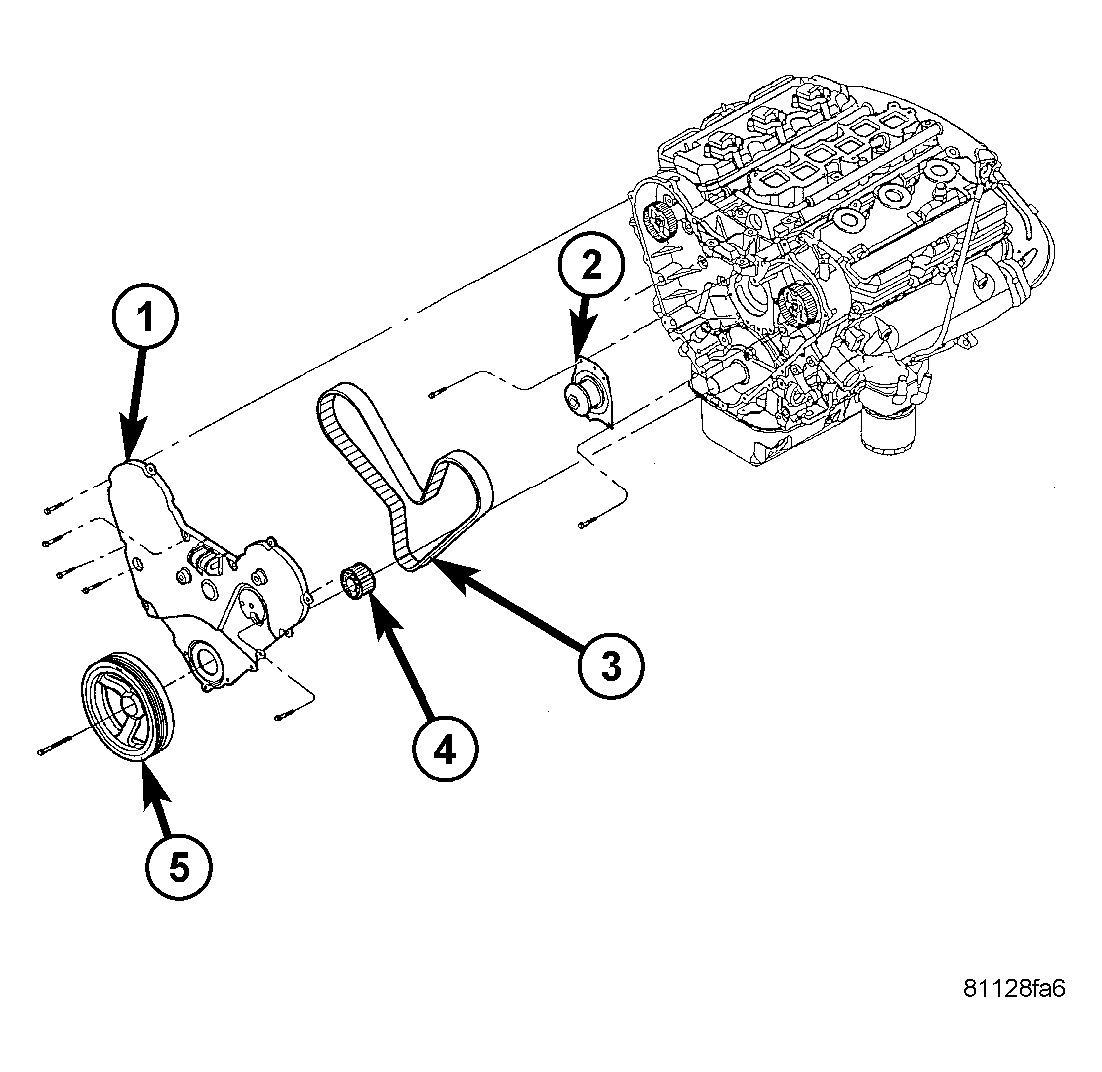

| 1 - FRONT TIMING COVER |
| 2 - WATER PUMP |
| 3 - TIMING BELT |
| 4 - CRANKSHAFT SPROCKET |
| 5 - CRANKSHAFT DAMPER |
The timing drive system has been designed to provide quiet performance and reliability to support a NON free-wheeling engine.
The timing drive components include a crankshaft sprocket (4), camshaft sprockets, tensioner pulley, hydraulic tensioner and a timing belt (3). The water pump (2) is driven by the back side of the timing belt (3). The right and left camshaft sprockets are keyed and not interchangeable because of the cam sensor pick-up wheel on the left sprocket. See Fig 1.
