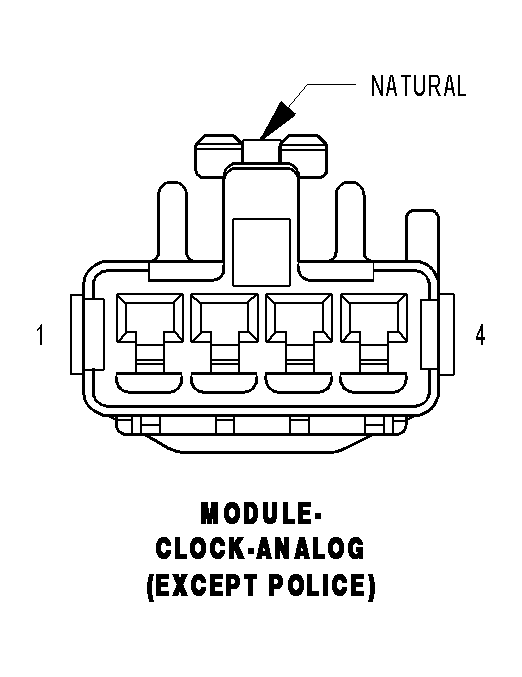

Clock Analog Module (Except Police) Connector End View
MODULE-CLOCK-ANALOG (EXCEPT POLICE) - NATURAL 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A117 20RD/DG |
FUSED B(+) (I.O.D.) |
| 2 |
Z909 20BK/LG |
GROUND |
| 3 |
E12 20OR/GY |
PANEL LAMPS DRIVER |
| 4 |
- |
- |
