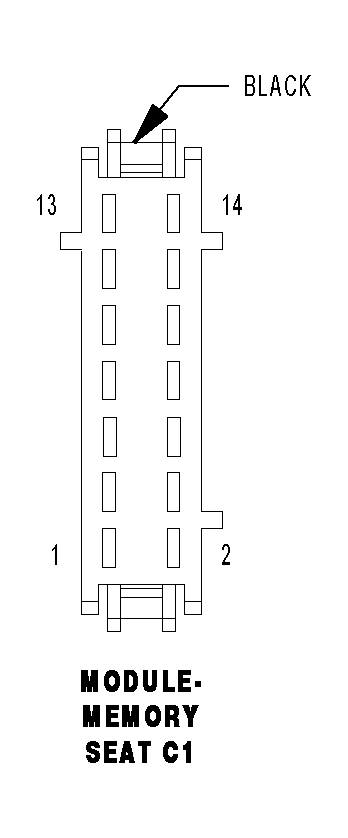

Memory Seat Module Connector End View (C1)
MODULE-MEMORY SEAT C1 - BLACK 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P205 16LG/WT (LHD ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS MOTOR FORWARD |
| 2 | P206 16LG/LB (LHD ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS MOTOR REARWARD |
| 3 | P153 16TN/DG (LHD) | TILT STEERING MOTOR UP/DOWN DRIVER |
| 4 | P157 16LB/TN (LHD) | TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | P953 16DG/TN (LHD) | STEERING MOTOR COMMON |
| 7 | D55 20WT/OR | CAN B BUS (+) |
| 8 | A110 12OR/RD | FUSED B(+) |
| 9 | G13 18VT/LB (LHD ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS SENSOR SUPPLY |
| 10 | Z912 12BK/OR | GROUND |
| 11 | P152 20TN/LB (LHD) | TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE |
| 12 | G914 20VT/GY (LHD) | SENSOR RETURN |
| 13 | P151 20TN/OR (LHD) | TILT STEERING UP/DOWN POSITION SENSE |
| 14 | G14 18VT/DB (LHD ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS SENSOR SIGNAL |
