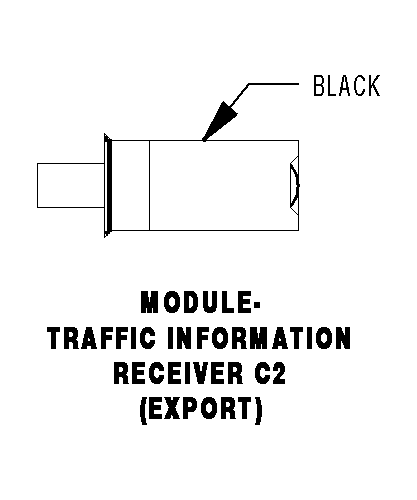

Traffic Information Receiver Module (Export) Connector End View (C2)

MODULE-TRAFFIC INFORMATION RECEIVER C2 (EXPORT) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D5 6WT/OR	ANTENNA SIGNAL
2	D931 WT/YL	ANTENNA SHIELD
