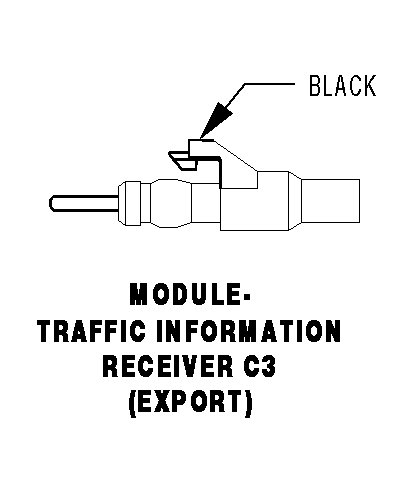

Traffic Information Receiver Module (Export) Connector End View (C3)
MODULE-TRAFFIC INFORMATION RECEIVER C3 (EXPORT) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D6 6WT/OR |
RADIO ANTENNA SIGNAL |
| 2 |
D932 WT/YL |
RADIO ANTENNA SHIELD |
