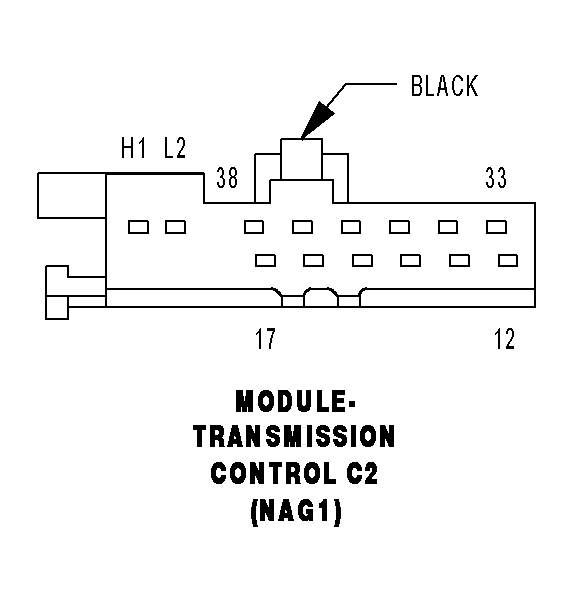

Transmission Control Module (NAG1) Connector End View (C2)

MODULE-TRANSMISSION CONTROL C2 (NAG1) - BLACK 14 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
12	T70 20YL	INPUT SPEED SENSOR 1 (N2) SIGNAL
13	T72 20YL/DB	SENSOR SUPPLY VOLTAGE
14	T60 20YL/GY	1-2/4-5 SOLENOID CONTROL
15	T73 20YL/GY	3-4 SOLENOID CONTROL
16	T74 20YL/LG	2-3 SOLENOID CONTROL
17	T75 20YL/LB	TCC SOLENOID CONTROL
33	T13 20DG/VT	SENSOR GROUND
34	T54 20DG/OR	TEMPERATURE SENSOR-P/N SWITCH SIGNAL
35	T71 20YL/OR	INPUT SPEED SENSOR 2 (N3) SIGNAL
36	T76 20YL/TN	MODULATION PRESSURE SOLENOID CONTROL
37	T77 20YL/BR	SHIFT PRESSURE SOLENOID CONTROL
38	T78 20YL	SOLENOID SUPPLY VOLTAGE
H1	D65 20WT/LG	CAN C BUS (+)
L2	D64 20WT/LB	CAN C BUS (-)
