Sensor-Transmission Range: Installation

Fig 1: Manual Shaft Retaining Screw

Courtesy of CHRYSLER LLC

1 - SCREW

2 - TRS

Install the TRS (2) to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.
Install the TRS/manual shaft retaining screw (1) and torque to 5 N.m (45 in. lbs.) torque. See Fig 1.

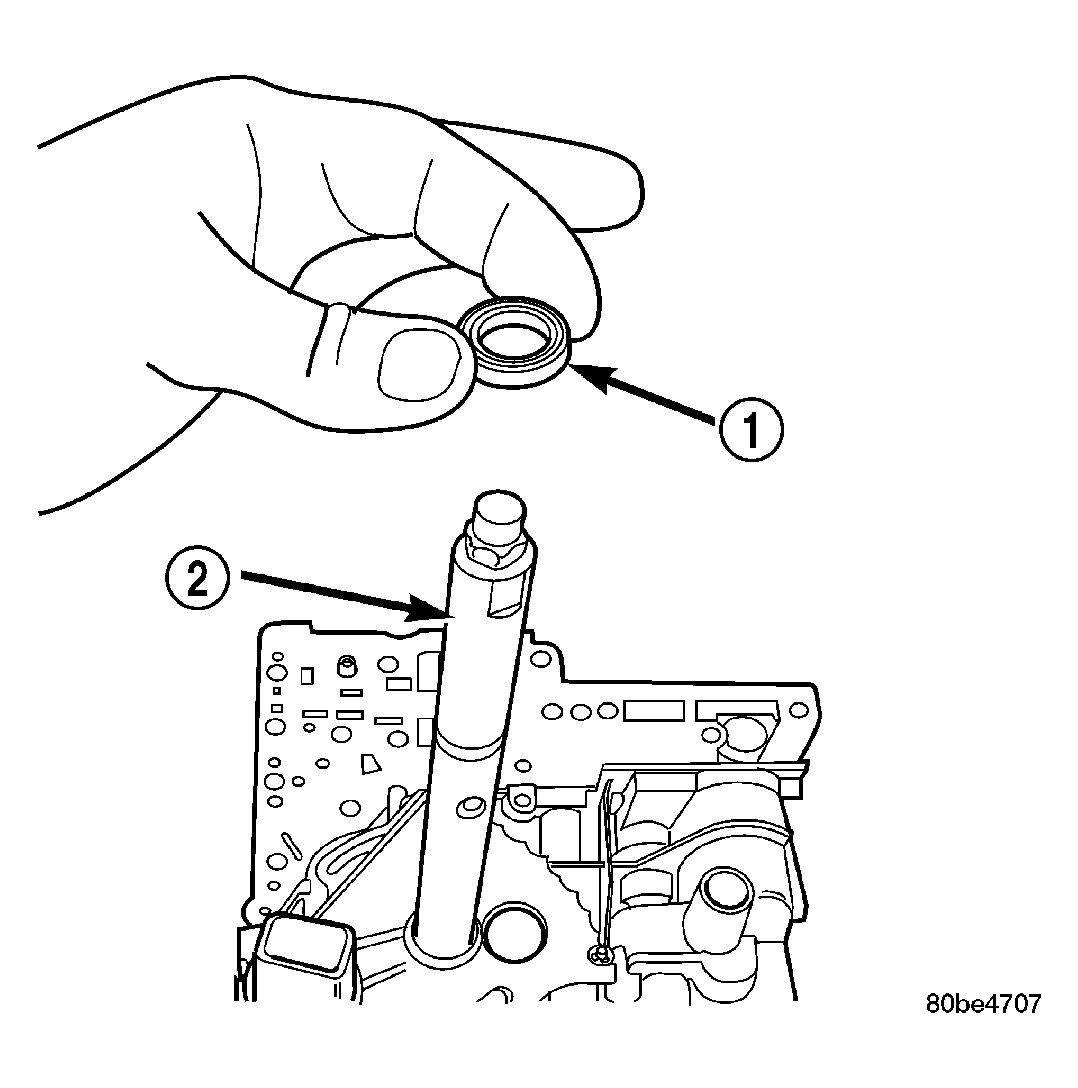

Fig 2: Manual Shaft Seal
Courtesy of CHRYSLER LLC

1 - SEAL

2 - MANUAL SHAFT
Install the manual shaft seal (1). See Fig 2.
Install valve body to the transmission. See INSTALLATION .
