Sensor-Transmission Temperature: Description

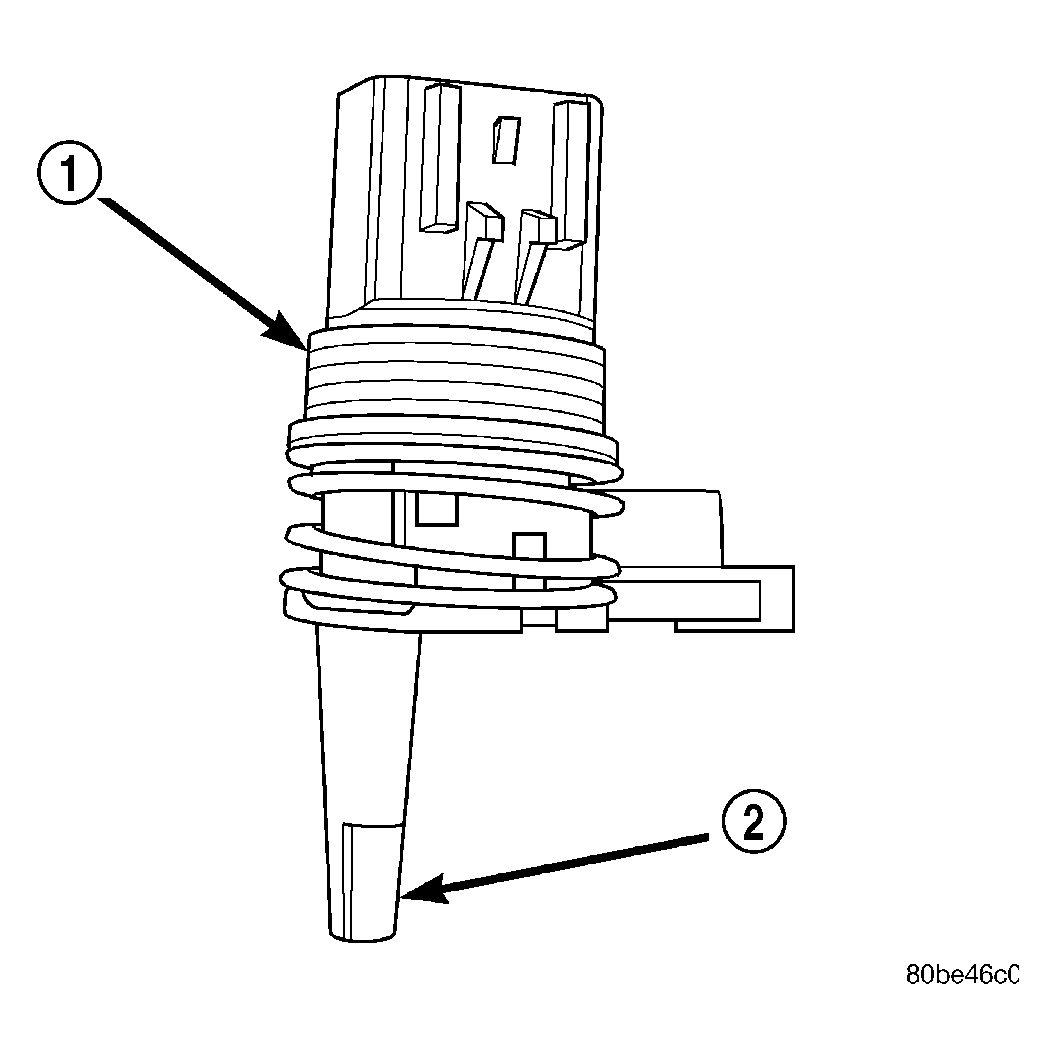

Fig 1: Transmission Temperature Sensor

Courtesy of CHRYSLER LLC

1 - TRANSMISSION RANGE SENSOR

2 - TEMPERATURE SENSOR

The transmission temperature sensor (2) is located in the transmission range sensor (1) and communicates transmission sump temperature to the TCM. See Fig 1.
