Installation

INSTALLATION

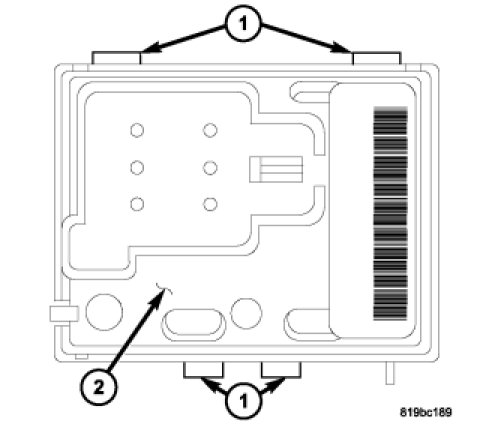

1. Align the tabs (1) of the switch/module (2) to the bezel and gently push together until the tabs are securely in place.

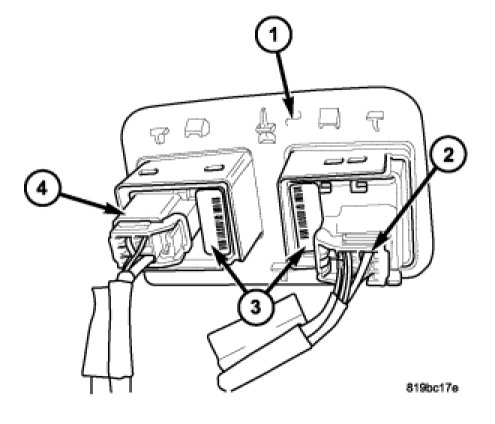

2. Connect the switch/module electrical connectors (2) and (4).

3. Gently push the heated seat switch/module bezel (1) into the mounting hole in the center console until it is securely in place.

4. Connect the battery negative cable.

5. Verify heated seat system operation.
