Removal

REMOVAL




1. Raise vehicle on hoist.
2. Remove lower splash shield.

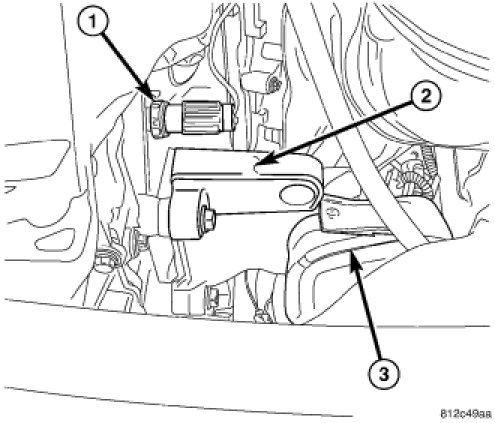

3. Disconnect oil pressure switch (1) electrical connector.
4. Position an oil collecting container under switch location.
5. Remove switch by unscrewing from the engine block.
