Oil Pump, Engine

CAUTION: Crankshaft position must be at 60� ATDC of No.1 cylinder before installing oil pump (1). This position will properly locate oil pump. If not properly located, severe damage to oil pump can occur.

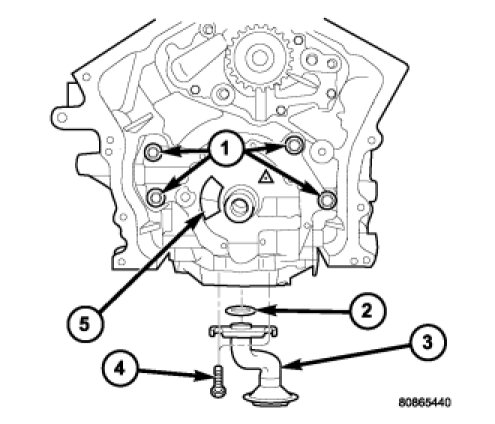

Install oil pump (5) carefully over crankshaft and into position.
Install oil pump attaching bolts (1). Tighten bolts to 28 Nm (250 In. Lbs.)
