Cruise Control Module: Locations

Component ID: 237
Component : MODULE-ADAPTIVE CRUISE CONTROL

Connector:
Name : MODULE-ADAPTIVE CRUISE CONTROL
Color : BLACK
# of pins : 8
Qualifier : (ACC)




Pin Description Circuit
1 GROUND Z901 20BK
2 - -
3 CAN C BUS (-) D64 20WT/LB
4 - -
5 FUSED IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY
6 - -
7 CAN C BUS (+) D65 20WT/LG
8 - -

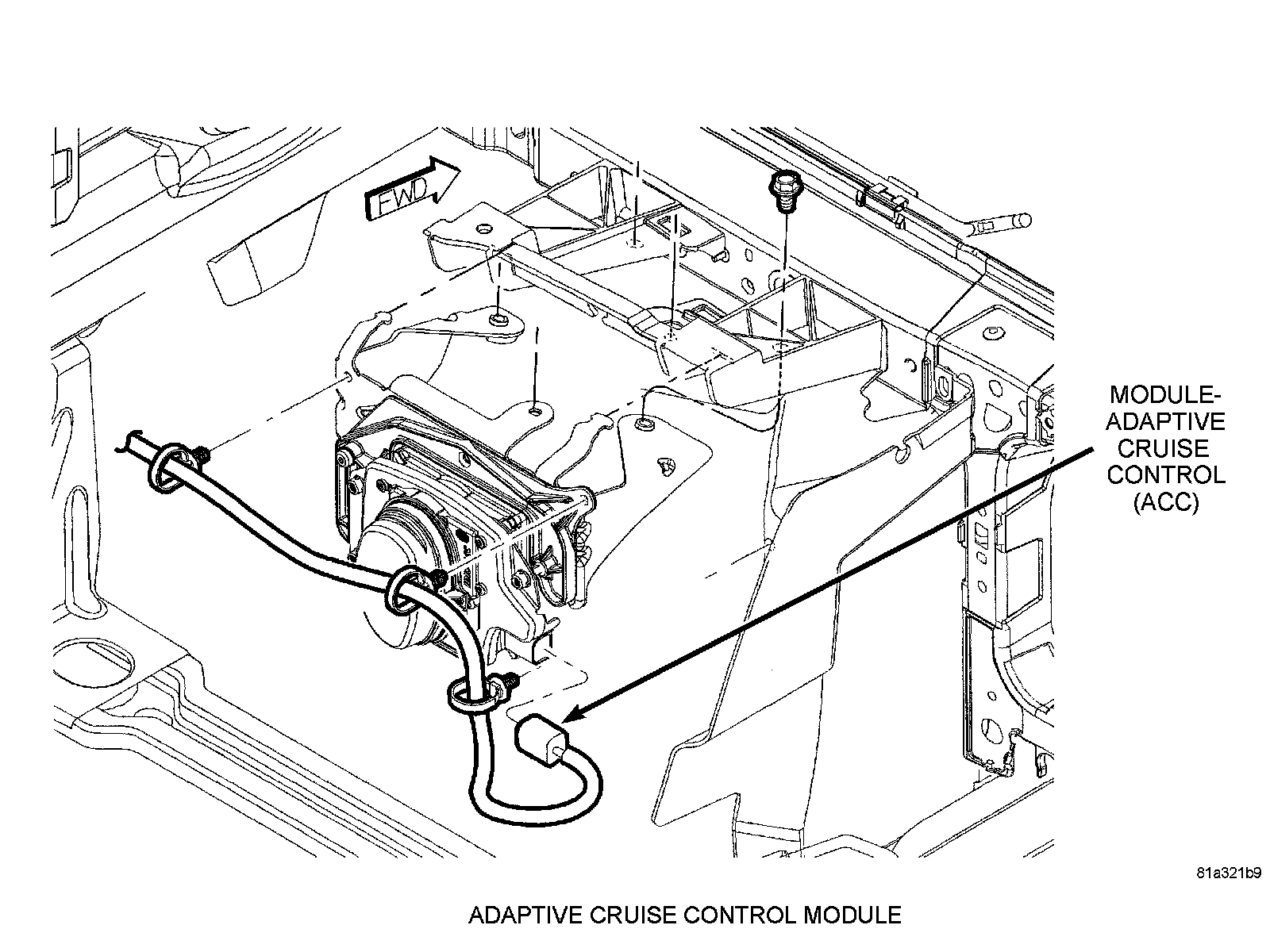

Component Location - 90
