Fuse/Relay Block

Component ID: 126
Component : FUSE/RELAY BLOCK

Connector:
Name : FUSE/RELAY BLOCK-EYELET
Color :
# of pins : 1
Qualifier : (POLICE)




Pin Description Circuit
1 B(+) A1 6RD

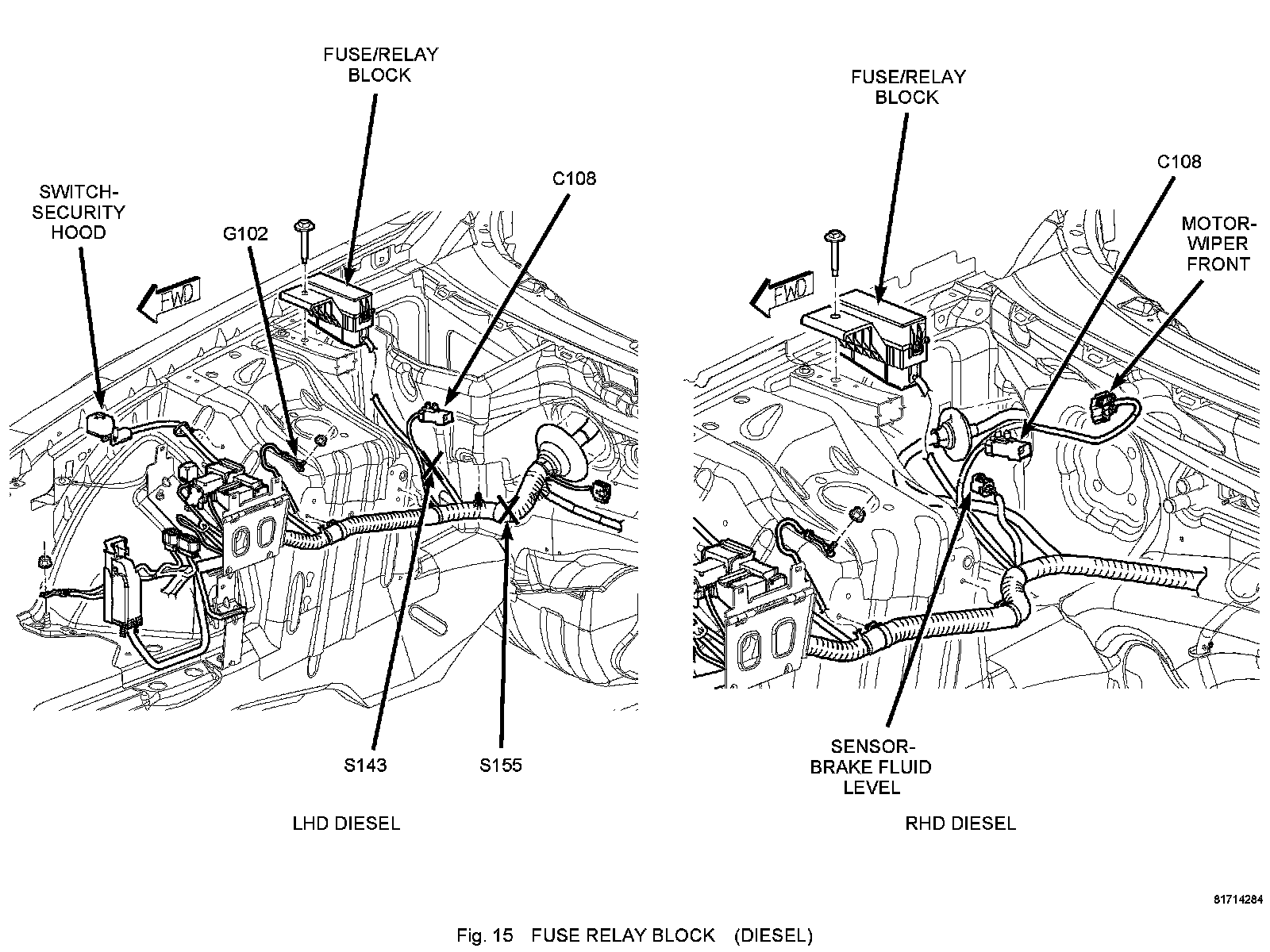

Component Location - 15

Fig. 15:

Component Location - 53

Fig. 53:

Component Location - 7

Fig. 7:
