Installation

3.5L





1. Install new spacer to sensor if installing the old sensor or new sensor will have the spacer installed.

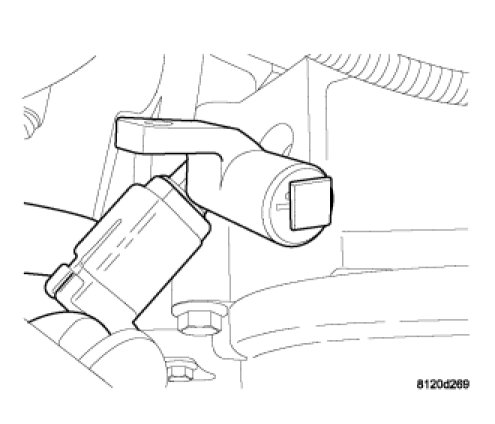

2. Install sensor and insert until sensor makes contact with tone wheel.

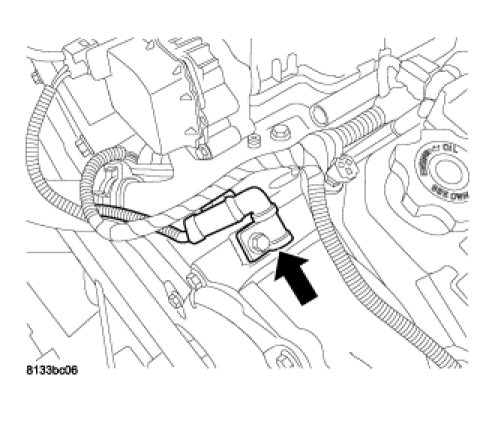

3. Install mounting bolt.

4. Tighten mounting bolt to 12 Nm (105 in. lbs.).

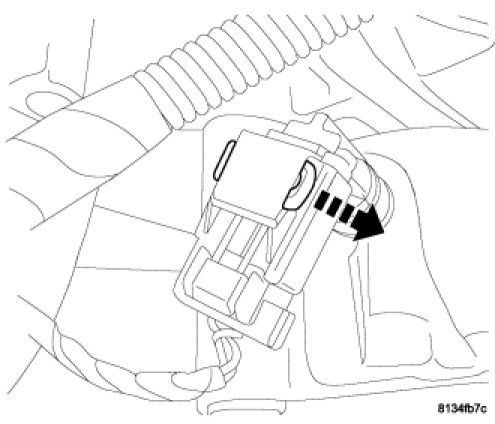

5. Install electrical connector.

6. Lock connector.

7. Connect negative battery cable.
