System Specifications

Description:

Description

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Pins:

Piston Pins

Piston Rings:

Piston Rings

Piston Ring Side Clearance:

Piston Ring Side Clearance

Piston Ring Width:

Piston Ring Width

Connecting Rods:

Connecting Rods

Crankshaft Main Bearing Journals:

Crankshaft Main Bearing Journals

Connecting Rod Journals:

Connecting Rod Journals

Connecting Rod Cap - Bolts 27 Nm (20 Ft. Lbs.) + 1/4 Turn





Crankshaft Main Bearing Cap
Inner Main Cap Bolts 20 Nm (15 Ft. Lbs.) + 1/4 Turn
Crankshaft Main Bearing Cap
Outer Main Cap Bolts 27 Nm (20 Ft. Lbs.) + 1/4 Turn

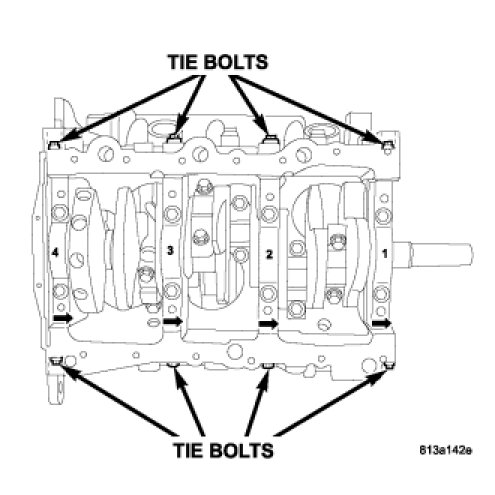

Tie Bolts (Horizontal) 28 Nm (250 In. Lbs.)

Crankshaft Damper - Bolt 95 Nm (70 Ft. Lbs.)

Check block deck surfaces for flatness.
Deck surface must be within service limit of 0.1 mm (0.004 in.)
