System Specifications

Crankshaft Damper - Bolt 95 Nm (70 Ft. Lbs.)

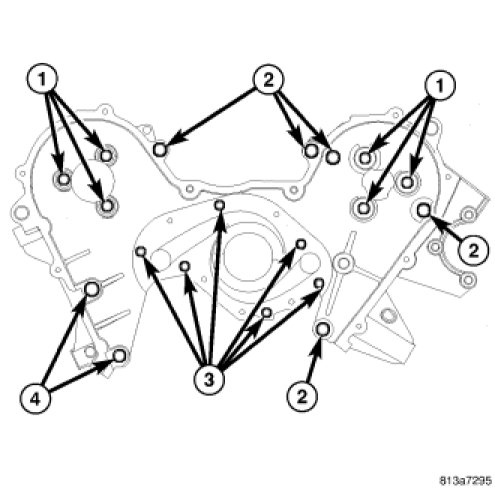

Timing Belt Cover -M6 Bolts 12 Nm (105 In. Lbs.)
Timing Belt Cover -M8 Bolts 28 Nm 250 (In. Lbs.)
Timing Belt Cover -M10 Bolts 54 Nm 40 (Ft. Lbs.)

Timing Belt Tensioner-Bolts 28 Nm 250 (In. Lbs.)
