Installation

5.7L

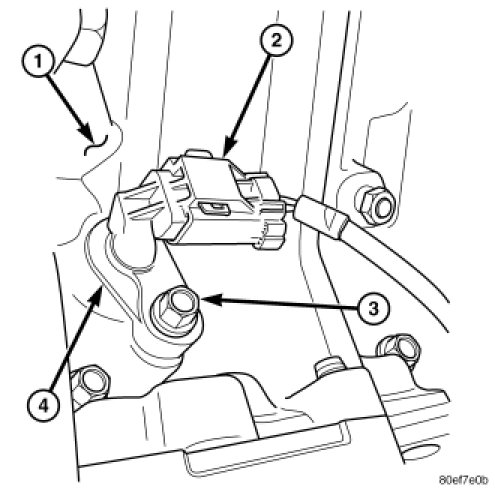

1. Clean out machined hole in engine block.

2. Apply a small amount of engine oil to sensor O-ring.

3. Install sensor (4) into engine block with a slight rocking and twisting action.


CAUTION: Before tightening sensor mounting bolt (3), be sure sensor is completely flush to cylinder block. If sensor is not flush, damage to sensor mounting tang may result.

4. Install mounting bolt (3) and tighten to 12 Nm (105 in. lbs.) torque.

5. Connect electrical connector (2) to sensor.

6. Lower vehicle.
