Installation

5.7L




1. Clean MAP sensor mounting hole at intake manifold.

2. Check MAP sensor O-ring seal for cuts or tears.

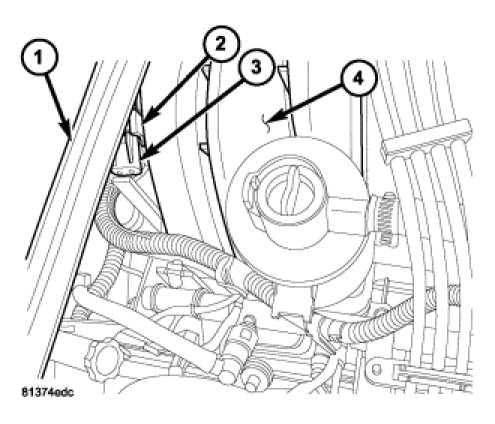

3. Position sensor (3) into intake manifold.

4. Rotate sensor 1/4 turn clockwise for installation.

5. Connect electrical connector (2) to sensor (3).
