Engine Torque Specifications

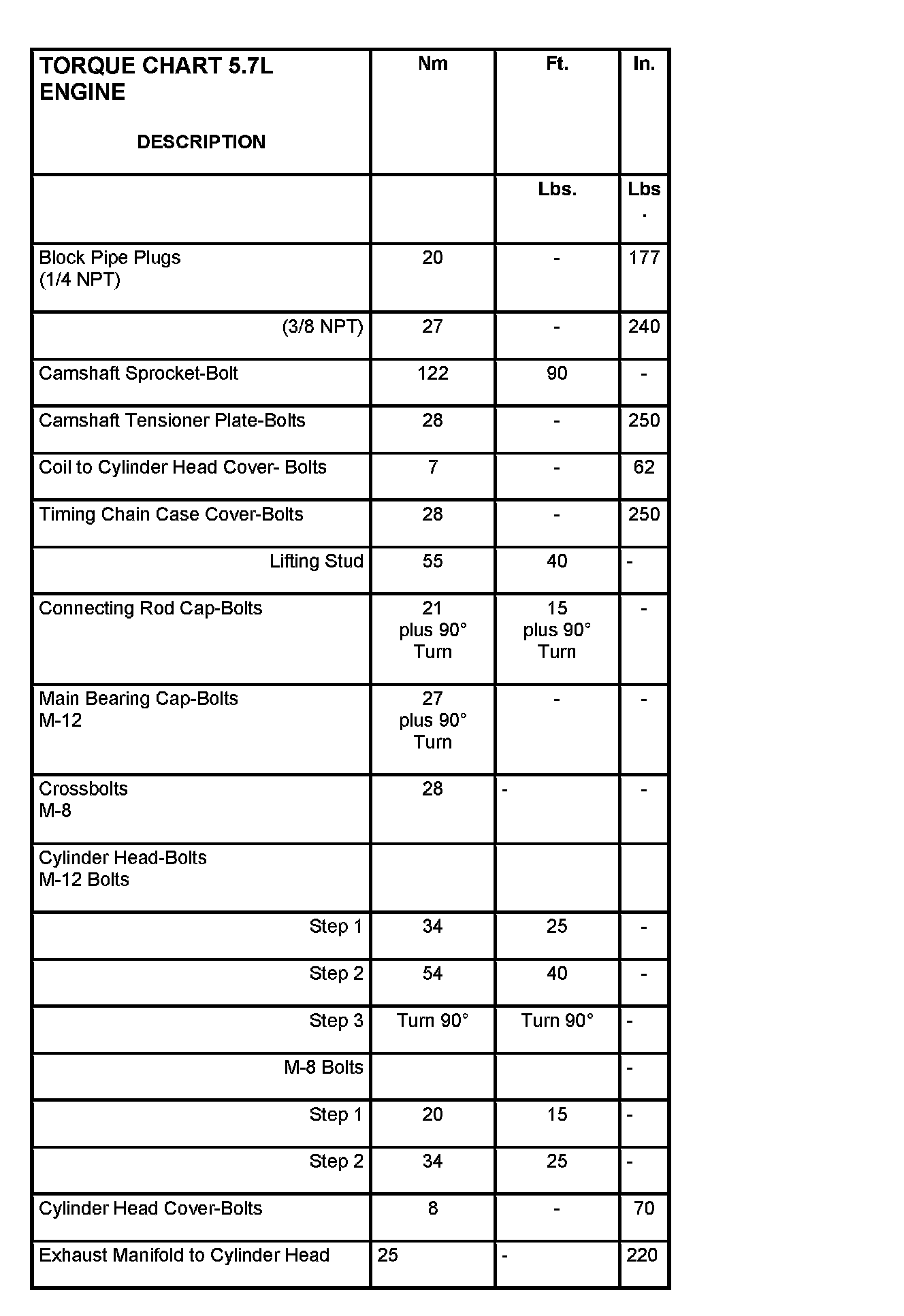

Torque Chart 5.7L Engine (Part 1):





Torque Chart 5.7L Engine (Part 1)

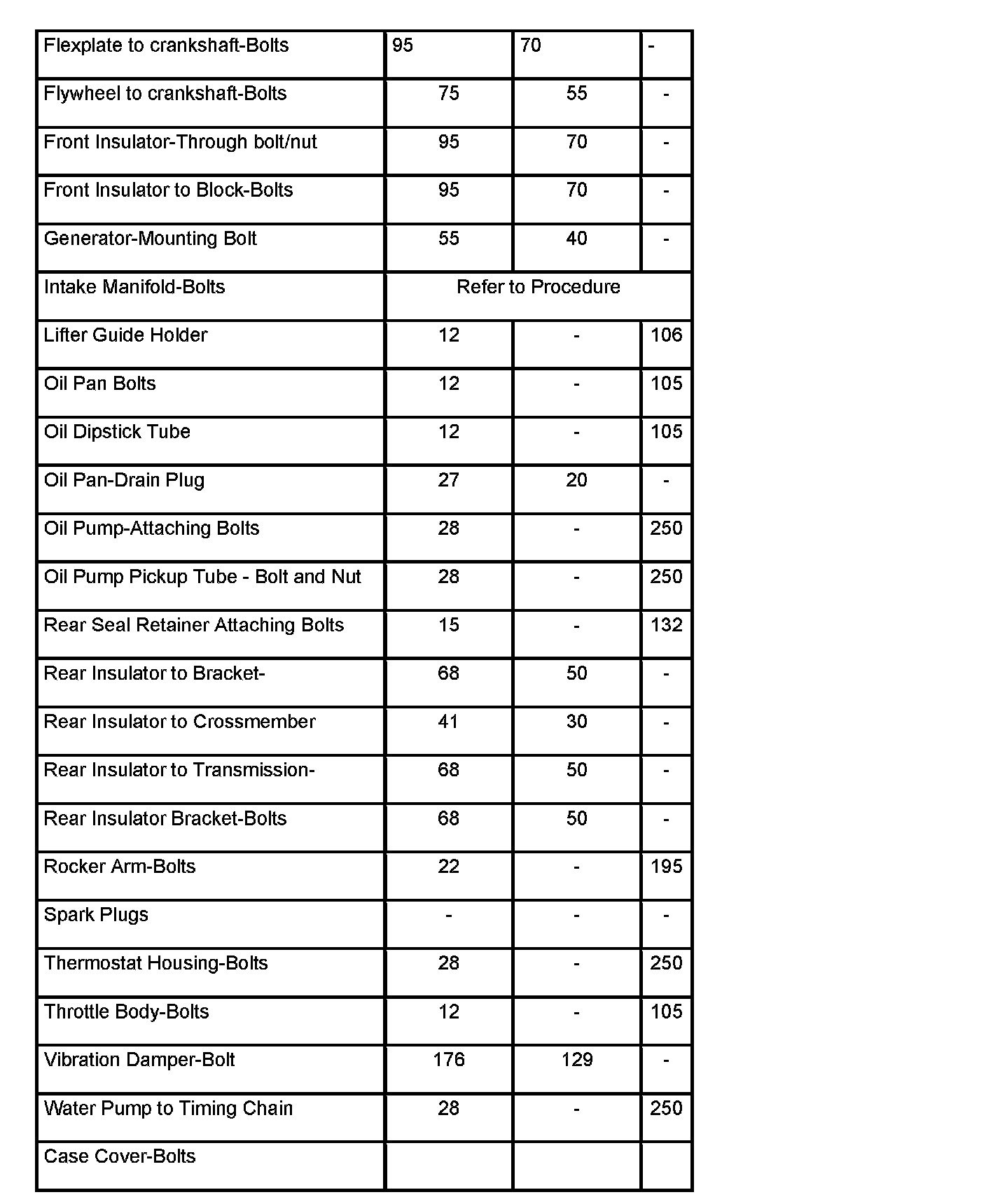

Torque Chart 5.7L Engine (Part 2):





Torque Chart 5.7L Engine (Part 2)
