Removal

REMOVAL

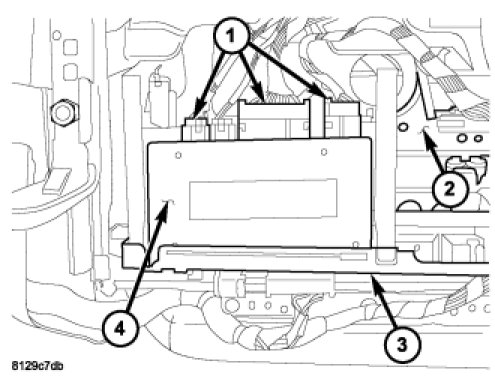

1. Disconnect and isolate the battery negative cable.

2. Remove the driver seat cushion/cover (2).

3. Unsnap the memory seat module (4) from the side brackets.

4. Pivot the module upward and disconnect the electrical connectors (1).

5. Pull the module rearward to remove it from the front of the seat frame (3).
