Power Distribution Center

Component ID: 202
Component : POWER DISTRIBUTION CENTER

Connector:

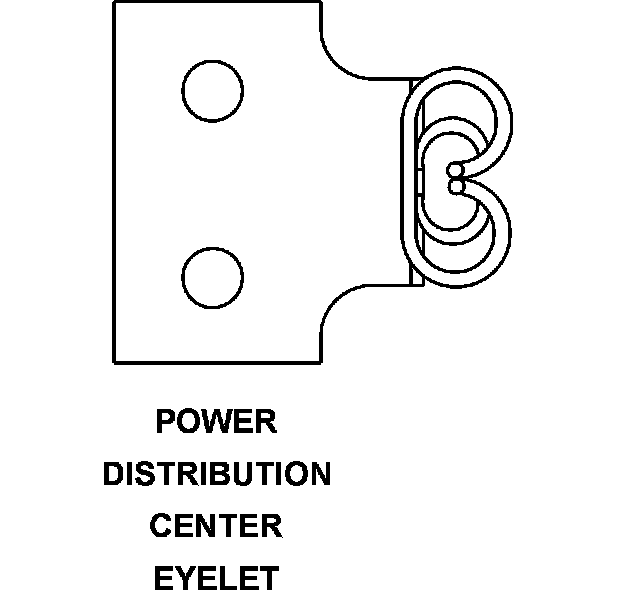

Name : POWER DISTRIBUTION CENTER EYELET
Color :
# of pins : 1
Qualifier : (BATTERY)




Pin Description Circuit
1 B(+) A1 4RD
Pin Description Circuit
1 B(+) A1 8RD

Component Location - 8
