Installation






INSTALLATION

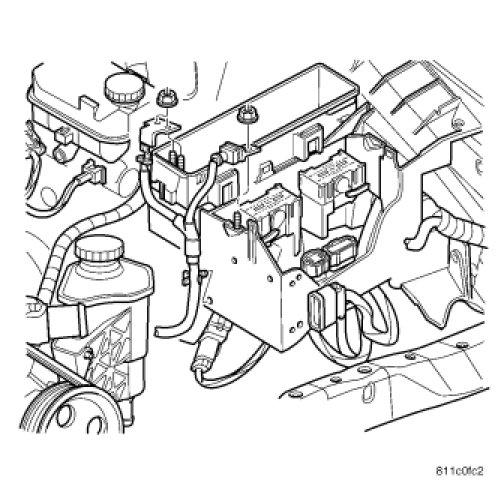

1. Connect electrical harness connectors to Power Distribution Center (PDC).

2. Position PDC and engage into the retaining tabs.

3. Connect the battery negative cable.
