DTC 1028: TCM Not Identified Or Incorrect: Notes

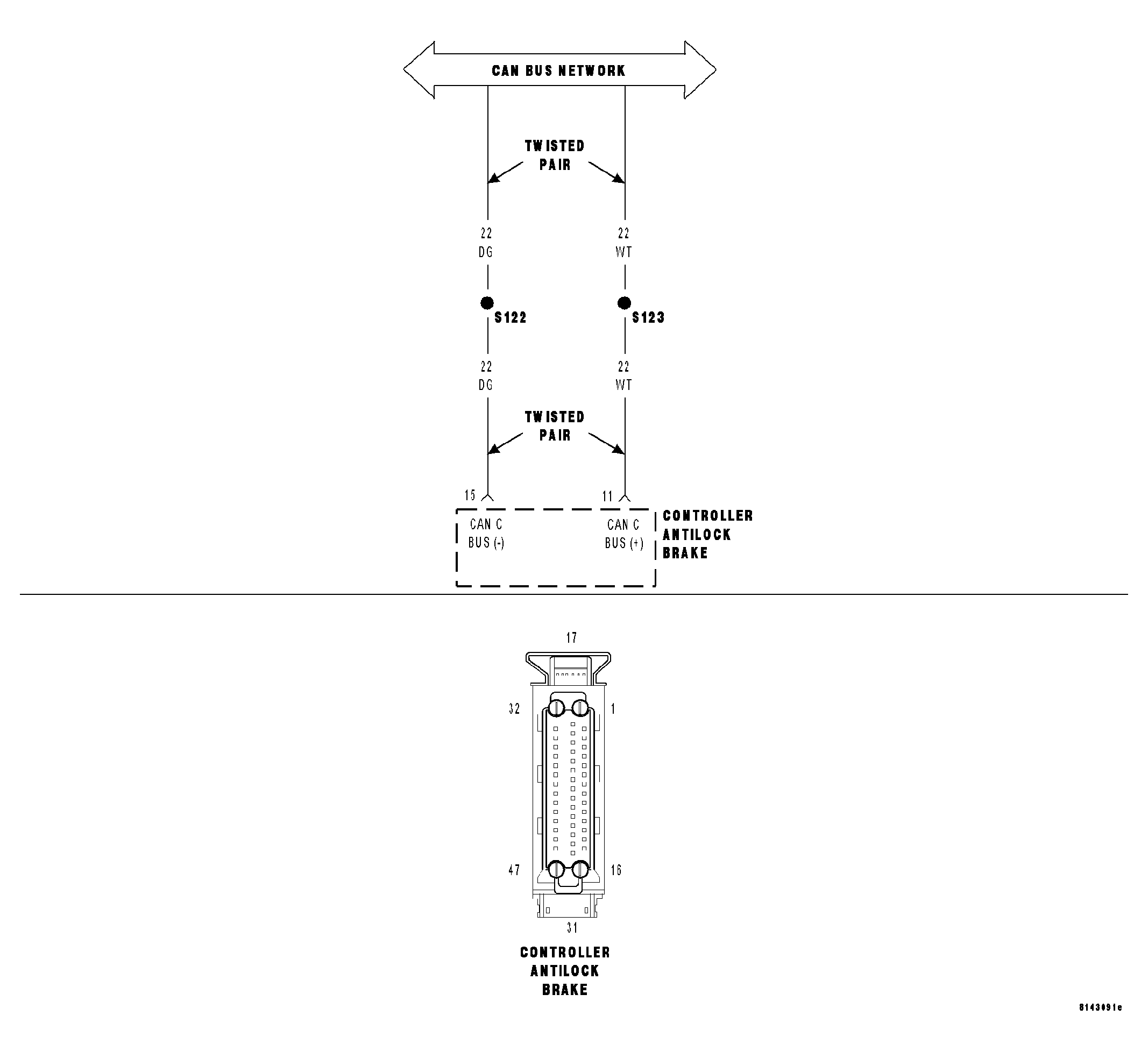

Fig 1: Controller Antilock Brake CAN C BUS Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: Continuous.
2. Set Condition: If the Controller Antilock Brake (CAB) cannot recognize the Transmission Control Module (TCM) message, the DTC is set.

For a complete Antilock Brake System (ABS) circuit diagram, see SCHEMATICS AND DIAGRAMS .
