Ambient Temperature Sensor Connector End View

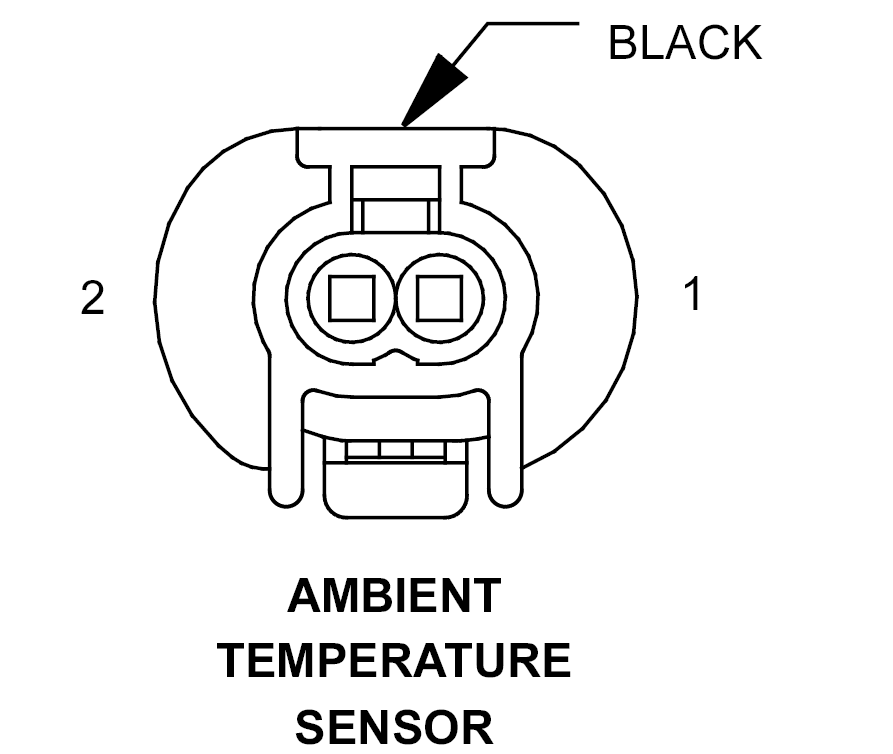

AMBIENT TEMPERATURE SENSOR - BLACK 2-WAY

GZH780009Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20DG AMBIENT TEMPERATURE SENSOR SIGNAL
2 20BR SENSOR GROUND
