Backup Lamp Switch Connector End View

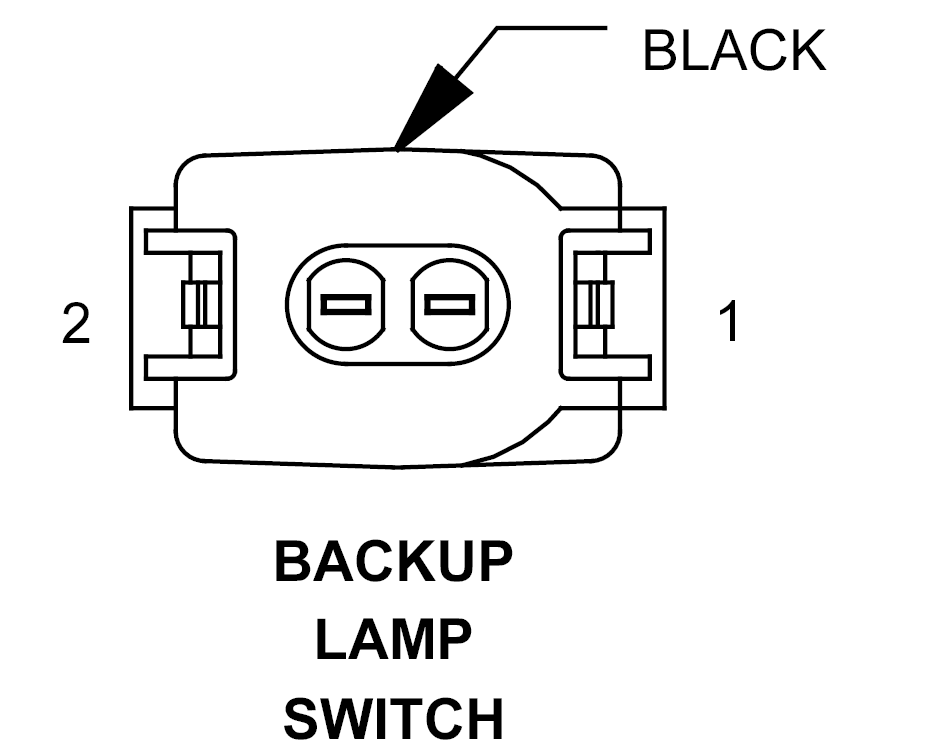

BACKUP LAMP SWITCH - BLACK 2-WAY

GZH780016Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20PK/RD FUSED IGNITION SWITCH OUTPUT
2 20GY/YL BACKUP LAMP SWITCH OUTPUT
