Crossfire Base, 2D Convertible
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Body Control Module Connector End View (C1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Body Control Module Connector End View (C1)

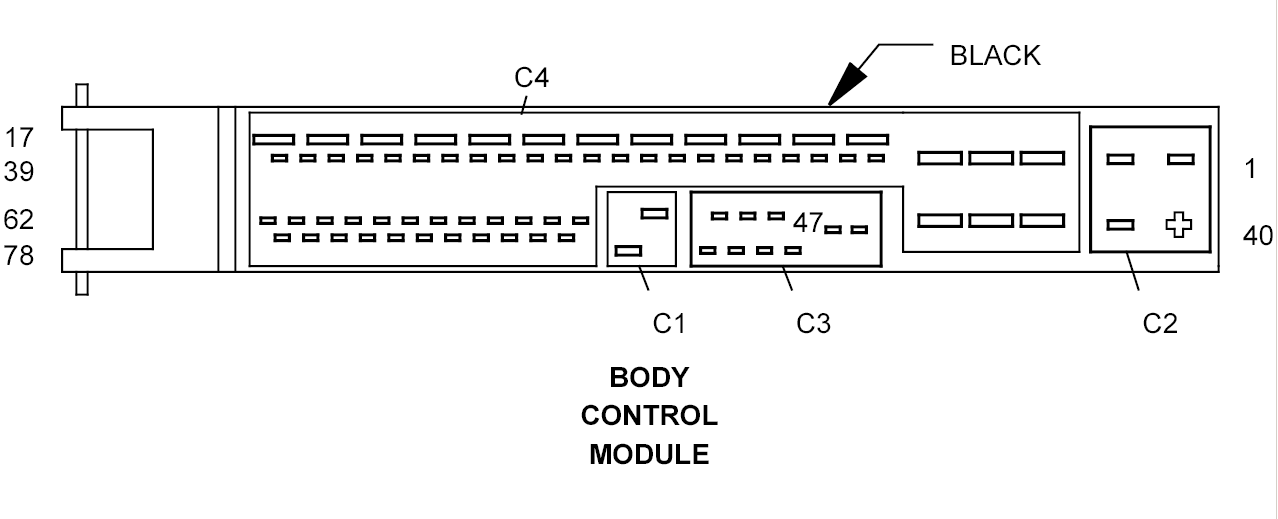

BODY CONTROL MODULE C1 - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
50
20RD
12 VOLT SUPPLY
67
20BR
CONTROL MODULE COOLING FAN CONTROL
