Body Control Module Connector End View (C2)

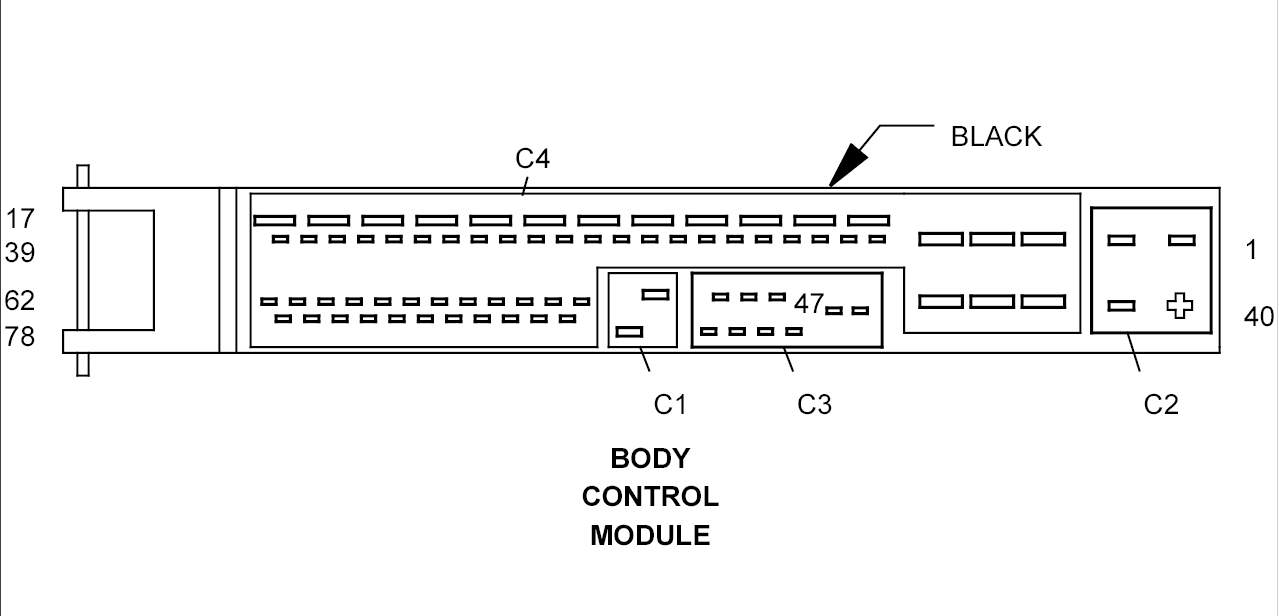

BODY CONTROL MODULE C2 - BLACK 4-WAY

GZH780021Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 14RD WIPER LOW SPEED CONTROL
2 14DG WIPER HIGH SPEED CONTROL
40 14WT WIPER PARK SWITCH SENSE
41 14BK 12 VOLT SUPPLY
