Brake Fluid Level Switch Connector End View

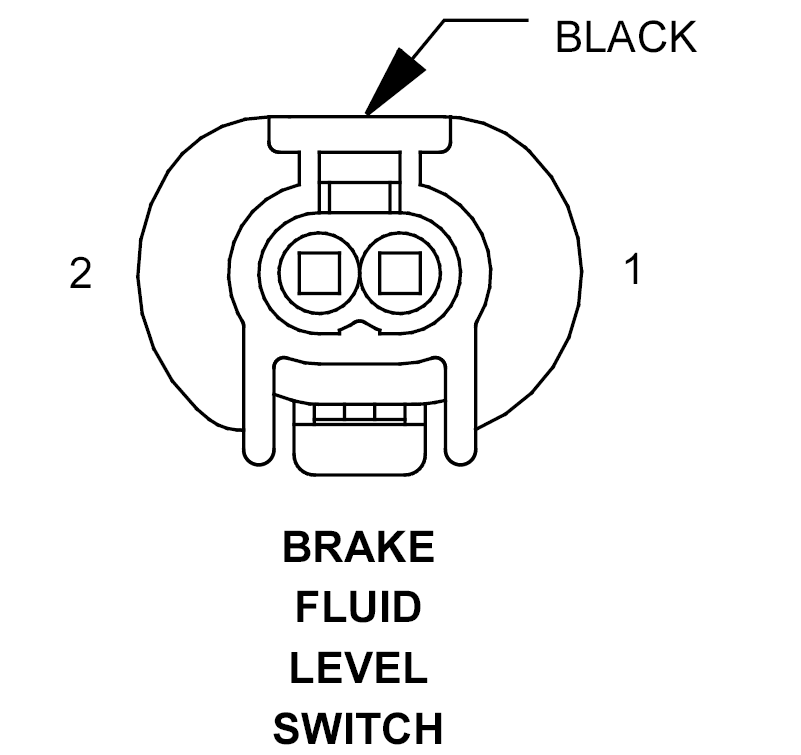

BRAKE FLUID LEVEL SWITCH - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR
GROUND
2
20BR/WT
BRAKE FLUID LEVEL SWITCH SENSE
Courtesy of CHRYSLER CORP.
