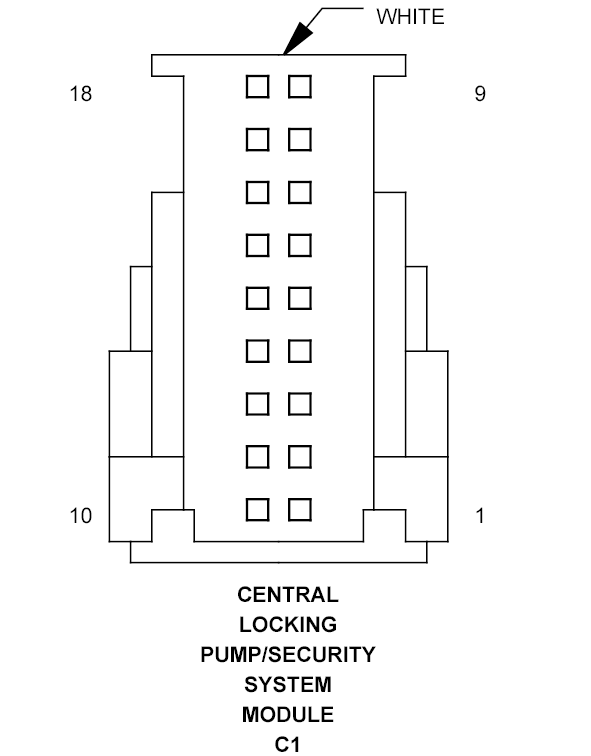

Central Locking Pump Module/Security System Module Connector End View (C1)
CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C1 - WHITE 18-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | 20WT | CAN B BUS (+) (ZH27) |
| 8 | 22WT | CAN B BUS (+) (ZH29) |
| 9 | 20DG | CAN B BUS (-) (ZH27) |
| 9 | 22DG | CAN B BUS (-) (ZH29) |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | 20BR/BL | LIFTGATE LOCK SWITCH SENSE (UNLOCK) (ZH27) |
| 13 | 20BR/YL | LIFTGATE LOCK SWITCH SENSE (UNLOCK) (ZH29) |
| 14 | 20BR/GY | LEFT DOOR AJAR SWITCH SENSE |
| 15 | - | - |
| 16 | 20BR/PK | RIGHT DOOR AJAR SWITCH SENSE |
| 17 | - | - |
| 18 | - | - |
