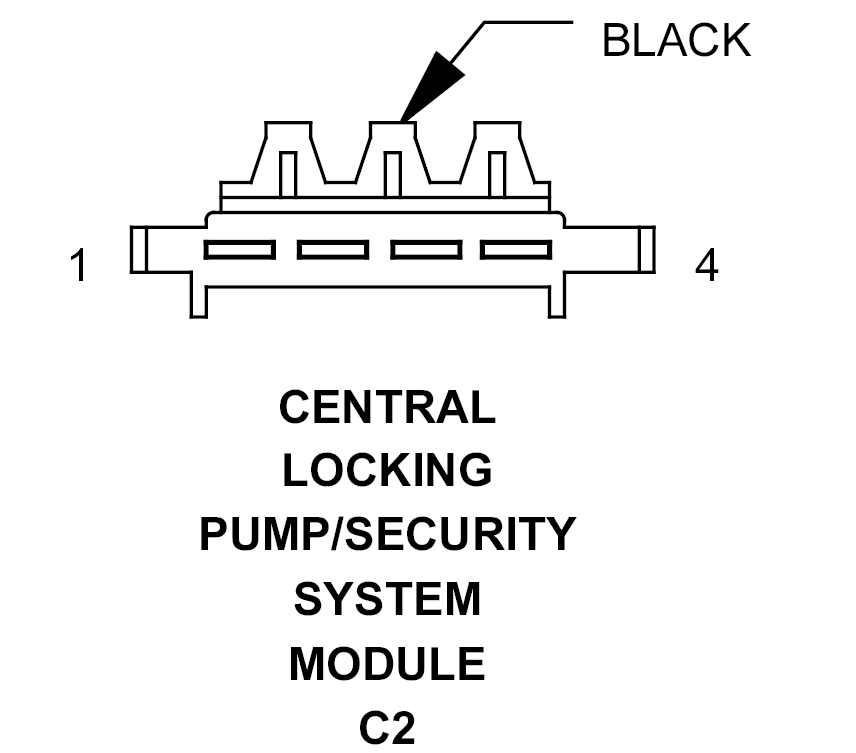

Central Locking Pump Module/Security System Module Connector End View (C2)
CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C2 - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14BK |
REAR WINDOW DEFOGGER GRID SUPPLY |
| 2 |
12RD/DG |
FUSED B(+) |
| 3 |
14BR |
GROUND |
| 4 |
16BK/YL/WT |
FUSED B(+) |
