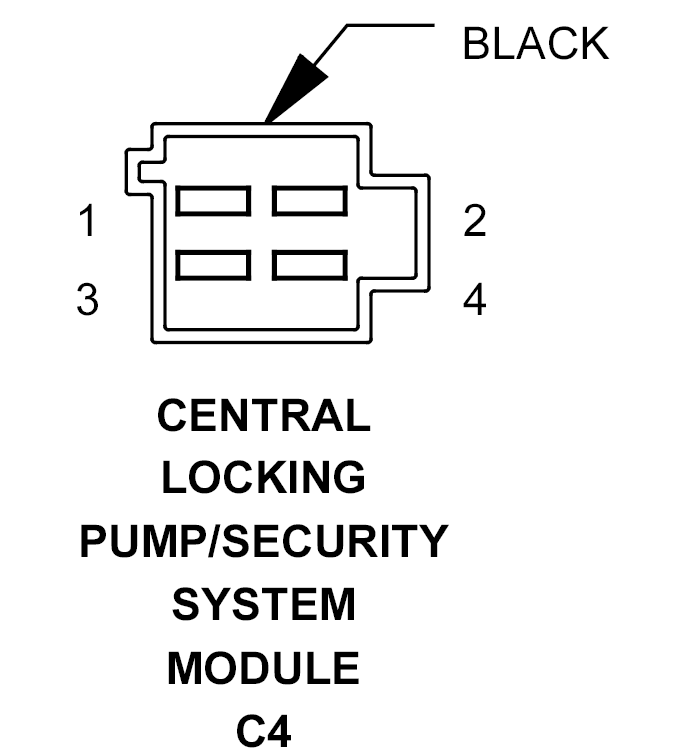

Central Locking Pump Module/Security System Module Connector End View (C4)

CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C4 - BLACK 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	14YL/BK	FOG LAMP SWITCH OUTPUT
2	18GY/RD	RIGHT TAIL LAMP OUTPUT (EXCEPT EXPORT)
2	18BK/DG	RIGHT TAIL LAMP OUTPUT (EXPORT)
3	-	-
4	18GY/BK	LEFT TAIL LAMP OUTPUT (EXCEPT EXPORT)
4	18BK/WT	LEFT TAIL LAMP OUTPUT (EXPORT)
