Clutch Interlock Switch Connector End View

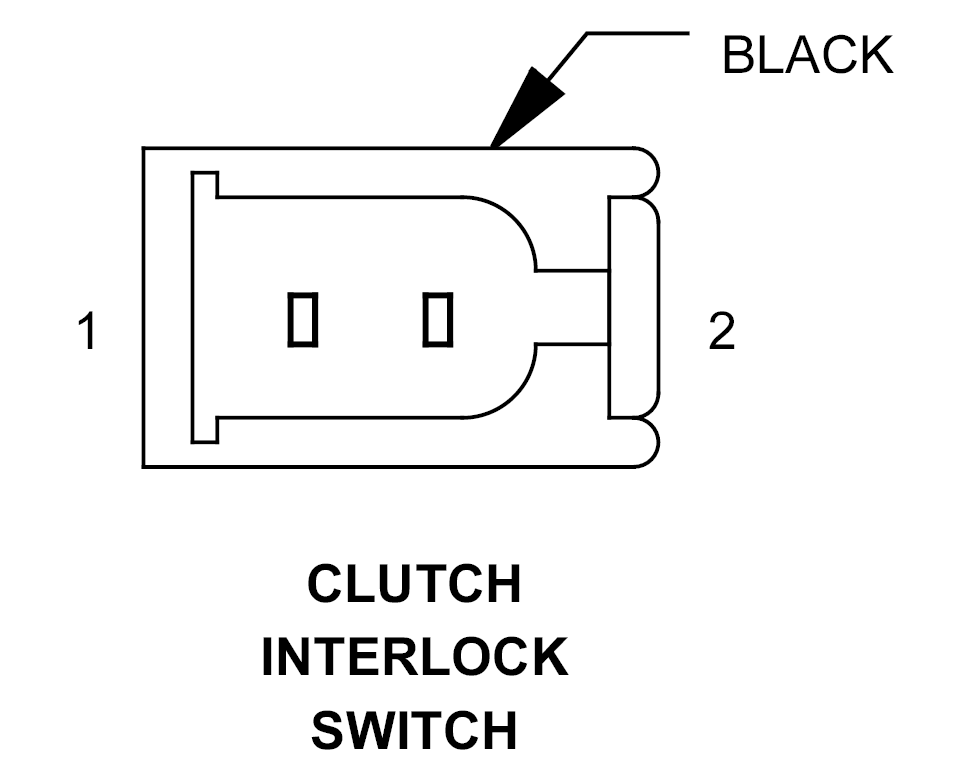

CLUTCH INTERLOCK SWITCH - BLACK 2-WAY

GZH780082Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20VT FUSED IGNITION SWITCH OUTPUT
2 20VT CLUTCH INTERLOCK SWITCH OUTPUT
2 20VT CLUTCH INTERLOCK SWITCH OUTPUT
