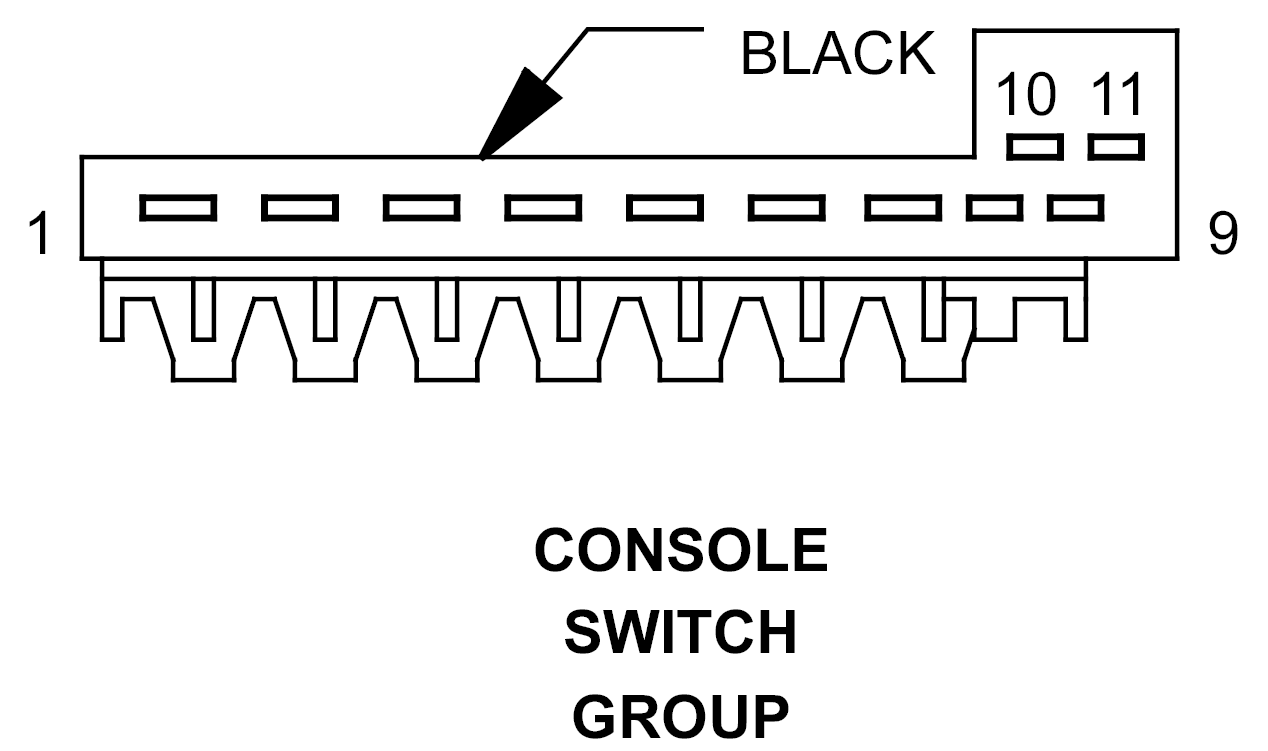

Console Switch Group Connector End View
CONSOLE SWITCH GROUP - BLACK 11-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BK/WT | LEFT TURN SIGNAL OUTPUT |
| 2 | 18BK/DG | RIGHT TURN SIGNAL OUTPUT |
| 3 | 16BK/BL | TURN SIGNAL MONITORED GROUND |
| 4 | 20BR | GROUND |
| 5 | 16BK/YL | HAZARD SWITCH SIGNAL |
| 6 | 16RD/YL | FUSED B(+) |
| 7 | 16BK/WT/BL | FUSED IGNITION SWITCH OUTPUT |
| 8 | 20WT/DG | DOOR LOCK SWITCH MUX |
| 9 | 20GY/BL | FUSED ILLUMINATION FEED |
| 10 | - | - |
| 11 | - | - |
